Connections - Terminals |
|
---|---|
Sale Per Indivisible Quantity | 1 |
Signalling Type | steady |
Range Of Product | Harmony XB4 |
Light Source Colour | white |
Light Source | LED |
Light Block Supply | direct |

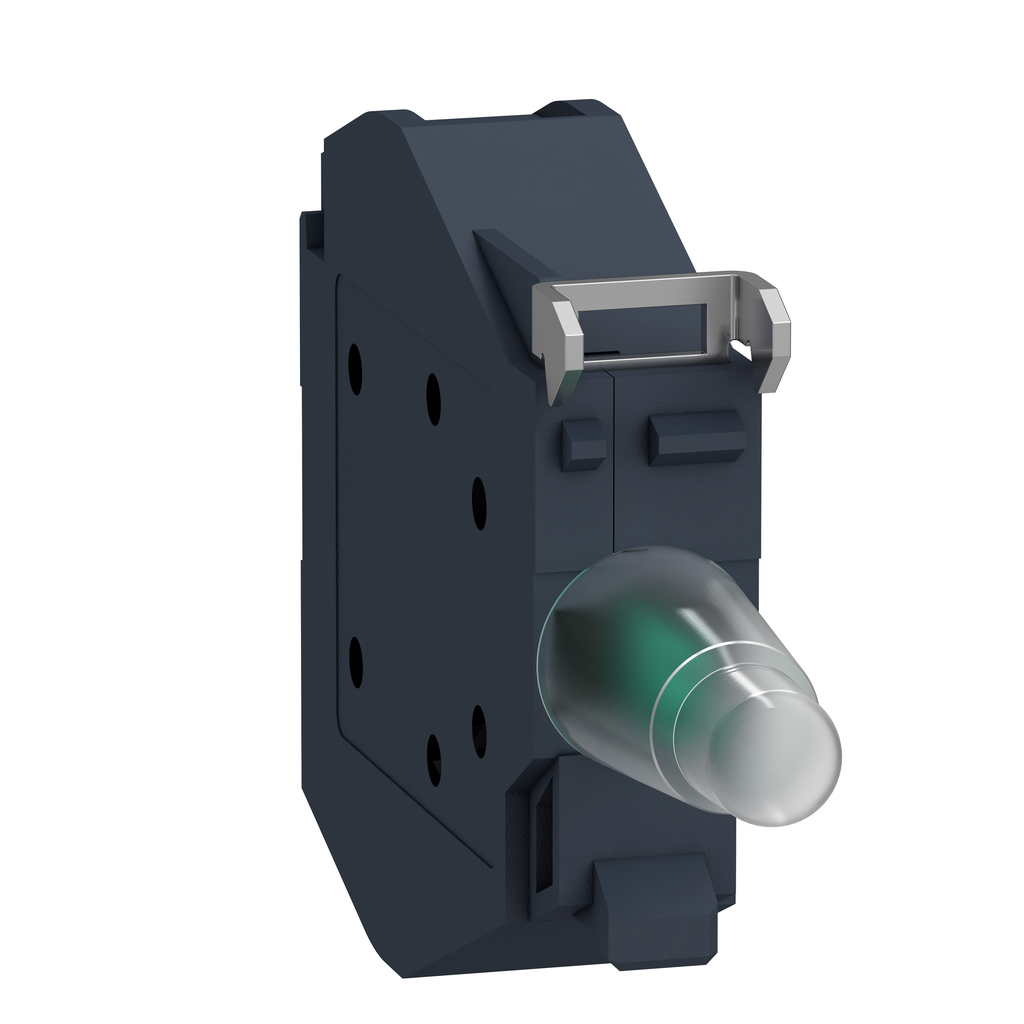

Product Or Component Type | light block |
Device Short Name | ZBV |
[Us] Rated Supply Voltage | 24...254 V AC/DC |
Bulb Base | integral LED |
Mounting Of Block | front mounted |
Service Life | 100000 h at ambiant temperature |
Marking | Ex eb mb IIC Gb |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Cad Overall Width | 38 mm |
Cad Overall Depth | 58.8 mm |
Net Weight | 0.02 kg |
Cad Overall Height | 10 mm |
Current Consumption | 2...10 mA |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Product Certifications | cULus |
Ambient Air Temperature For Operation | -50-95 °C |
Ambient Air Temperature For Storage | -50-70 °C |
Standards |
|
Environmental Characteristic | hazardous location class I division 2 |
Protective Treatment | TH |
Ip Degree Of Protection | IP65 IEC 60529 |
