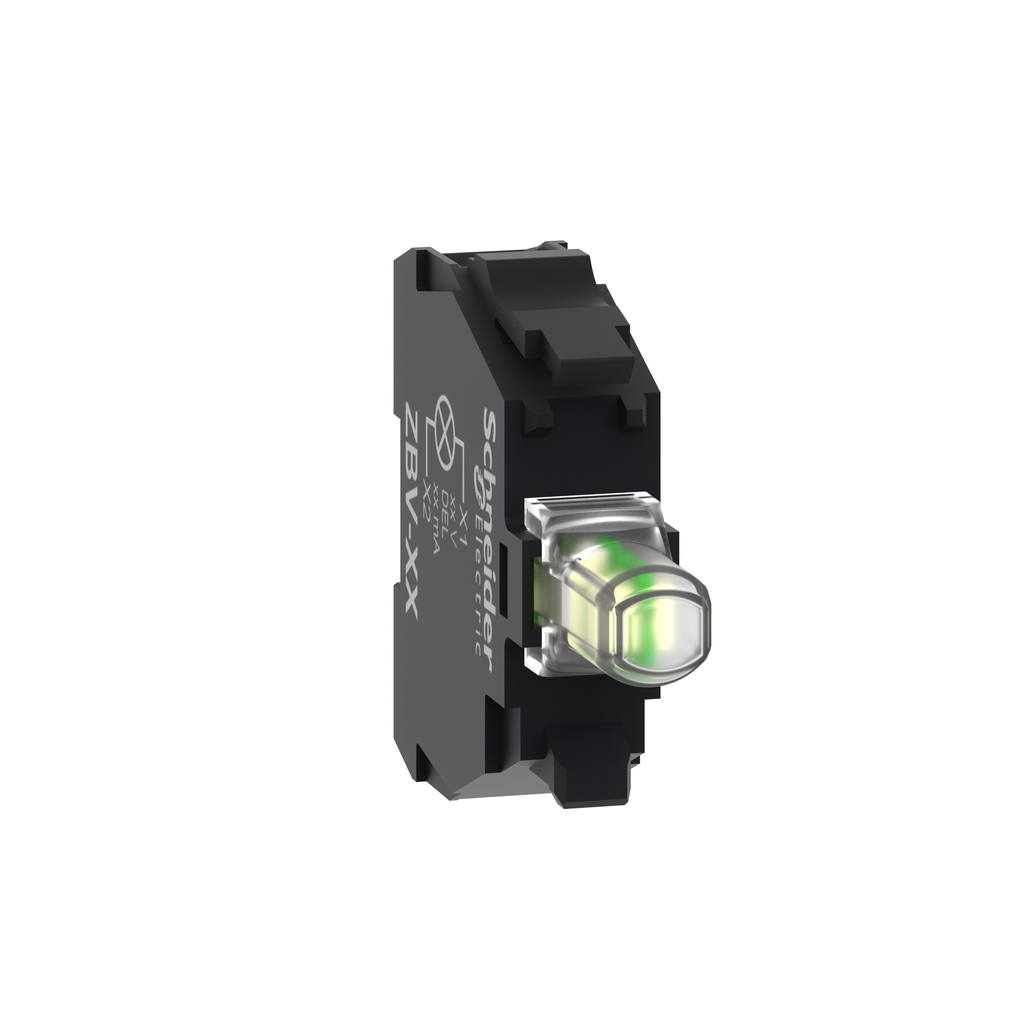

Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 24V AC DC
This Harmony ZB, XB5 white Light block operates with a universal LED. It is supplied with 24V AC/DC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Light Source | universal LED |
| Light Block Supply | direct |
| Product Or Component Type | light block |
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 5 |
| Signalling Type | steady |
| Light Source Colour | white |
| Device Short Name | ZBV |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Bulb Base | integral LED |
| Warranty | 18 months |
| Mounting Of Block | front mounting |
| Electrical Composition Code |
|
| Net Weight | 0.017 kg |
| Current Consumption | 15 mA |
| Device Presentation | basic element |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Supply Voltage Limits |
|
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Shape Of Screw Head |
|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP2302007EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2302007EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| [Us] Rated Supply Voltage | 24 V |
| Ambient Air Temperature For Operation | -40-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Standards |
|
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Resistance To Electrostatic Discharge |
|
| Protective Treatment | TH |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Electromagnetic Emission | class B IEC 55011 |
