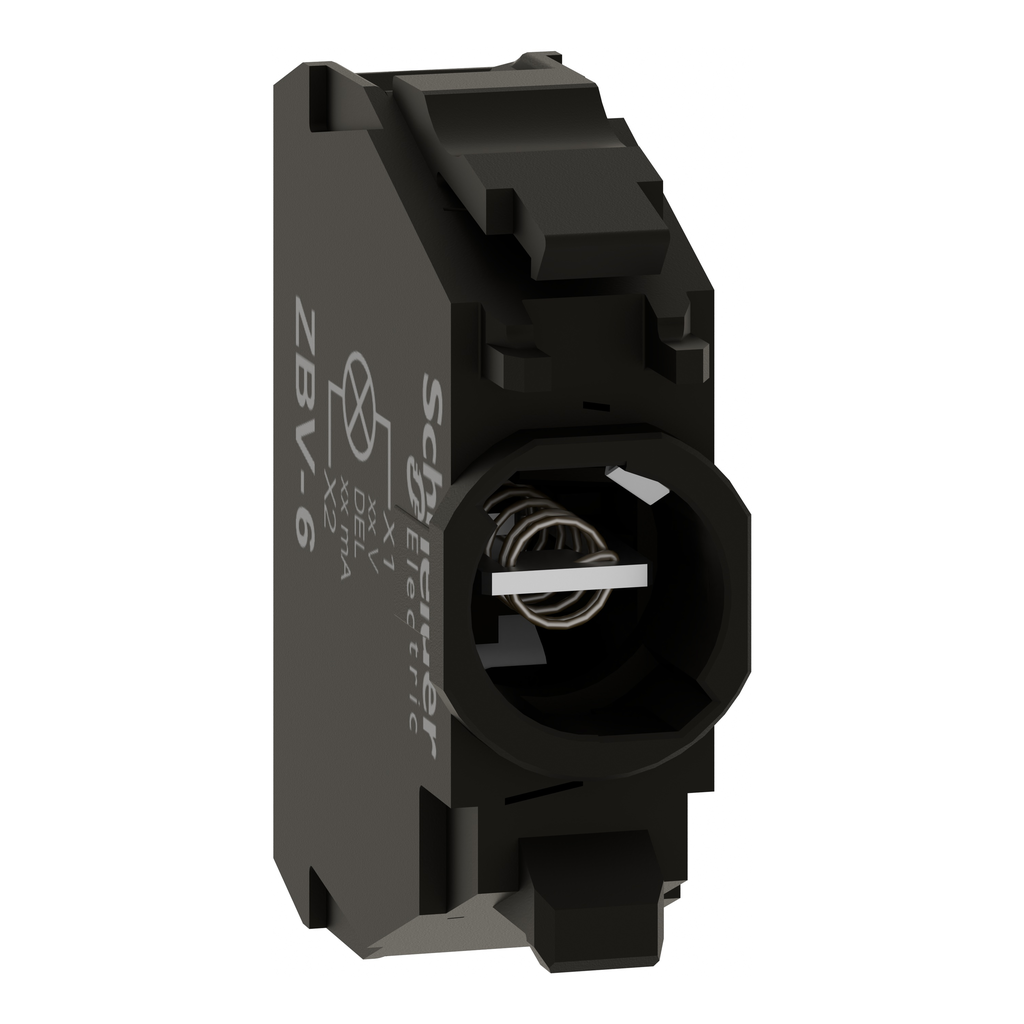

ZBV6 – Light block for head 22mm, Harmony XB4, for BA9s bulb, It 250V, screw clamp terminal
ZBV6
Light block for head 22mm, Harmony XB4, for BA9s bulb, It 250V, screw clamp terminal

This Harmony ZB, light block without bulb operates with BA9s Base. It is supplied with 250V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product
  • Harmony XB5
  • Harmony XB4
Light Source bulb not included
Light Block Supply direct
Product Or Component Type light block
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Sale Per Indivisible Quantity 5
Signalling Type steady
Device Short Name ZBV
[Us] Rated Supply Voltage <= 250 V
Bulb Base BA 9s
Warranty 18 months
Mounting Of Block front mounting
Electrical Composition Code
  • M7
  • M8
  • MF2
  • P3
  • PF2
Net Weight 0.016 kg
Device Presentation basic element
Service Life 100000 h at rated voltage and 25 °C
Surge Withstand 1 kV IEC 61000-4-5
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1808008EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1808008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CSA
  • UL Listed
[Us] Rated Supply Voltage 250 V
Ambient Air Temperature For Operation -40-70 °C
Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3
Standards
  • EN/IEC 60947-1
  • EN/IEC 60947-5-4
  • JIS C8201-5-1
  • UL 508
  • EN/IEC 60947-5-5
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • JIS C8201-1
Ip Degree Of Protection IP20 IEC 60529
Ambient Air Temperature For Storage -40-70 °C
Resistance To Electrostatic Discharge
  • 6 kV on contact (on metal parts) IEC 61000-4-2
  • 8 kV in free air (in insulating parts) IEC 61000-4-2
Protective Treatment TH
Resistance To Fast Transients 2 kV IEC 61000-4-4
Electromagnetic Emission class B IEC 55011
