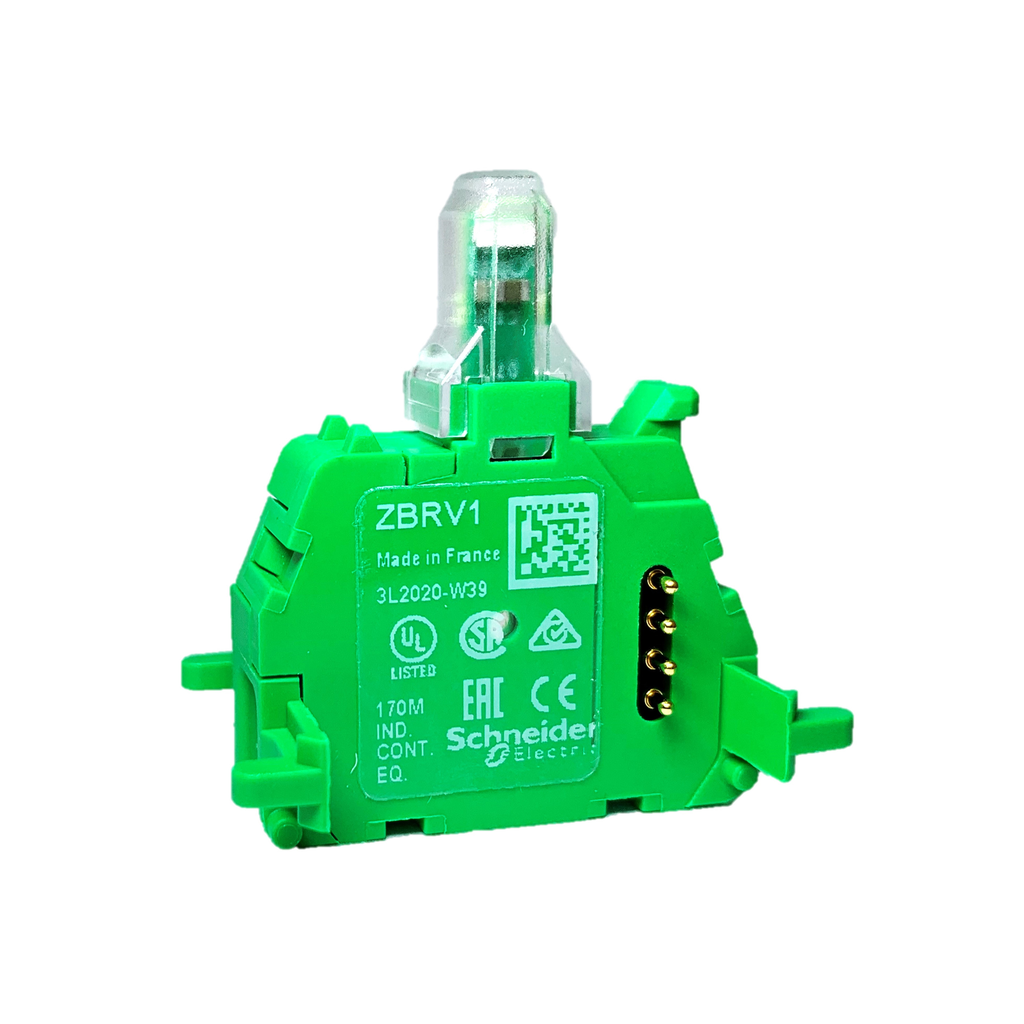

ZBRV1
Visual feedback, Harmony XB5R, for use with ZBRT transmitters, for wireless and batteryless pushbutton
Compatible with all XB5 & XB4 actuators(not suitable for safety applications) Enables end users to considerably reduce installation and maintenance costs Suitable for the most demanding environments, depending on the model, up to IP 69, for external use from -40 to 70 °C Possibility to change frequency and highest cybersecurity level Satisfaction with optional feedback( illuminated actuators only) Visual feedback option to easily check functioning Wireless and batteryless pushbuttons including a transmitter equipped with fixing collar a spring return pushbutton head with cap attached
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB5R |
|---|---|
| Product Or Component Type | visual feedback |
| Product Compatibility |
|
| Sale Per Indivisible Quantity | 1 |
| Light Source Colour | white |
| Device Short Name | XB5R |
| Standards |
|
| Embedding Depth | 42 mm |
| Light Source | protected LED |
| Light Block Supply | direct |
| Net Weight | 0.009 kg |
| Cad Overall Height | 37.4 mm |
| Signalling Type | blinking |
| [Us] Rated Supply Voltage | 3 V with battery |
| Cad Overall Width | 24.2 mm |
| Cad Overall Depth | 39.6 mm |
| Bulb Base | integral LED |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2009013EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2009013EN |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-55 °C |
| Electromagnetic Compatibility |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 95-95 % 0-55 °C without condensation |
| Mechanical Durability | 50000 cycles |
