ZBRRA - Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs

ZBRRA

Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs

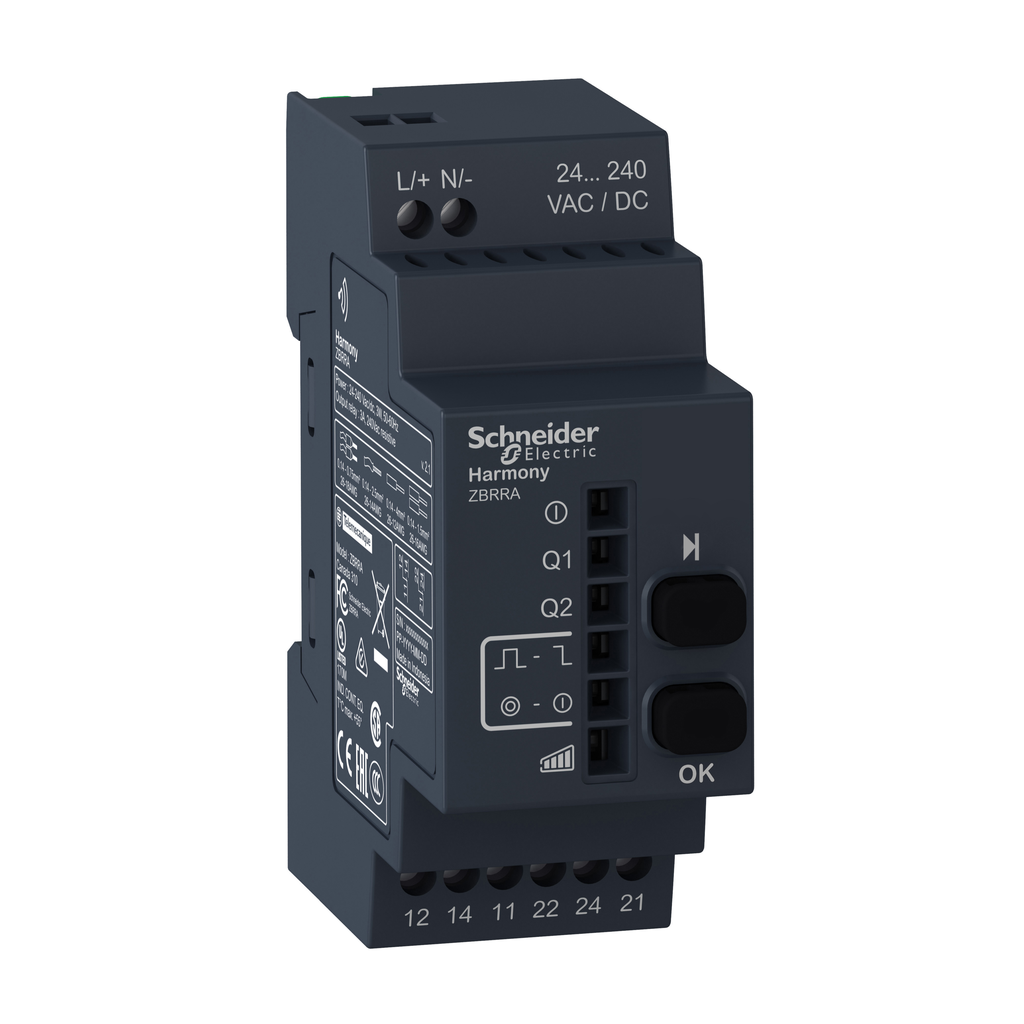

This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. It features 2 relay outputs type RT 3A. Its supply voltage is 24V to 240V AC/DC. It weighs 130g.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Antenna Type	omnidirectional
Range Of Product	Harmony
Transmission Frequency	2405 MHz
Product Or Component Type	programmable receiver
Reset Time	2 ms time delay
Level Or Class	5M00G7W
Product Specific Application	interface to actuators
Function Of Module	bi-stable monostable stop/start
Device Short Name	ZBRRA
Warranty	18 months
Electrical Connection	1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end IEC 60947-1 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end IEC 60947-1 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1
[Us] Rated Supply Voltage	24...240 V AC/DC 50/60 Hz - 10...10 %
Height	108 mm
Maximum Switching Current	5 mA AC/DC
Short-Circuit Protection	0.4 A fuse fast blow
Modulation Technique	O-QPSK
[Uimp] Rated Impulse Withstand Voltage	4 kV
Status Led	1 LED Green power ON 2 LEDs Green relay ON 2 LEDs Green function mode 1 LED green and yellow reception signal
Output Contacts	2 C/O
Communication Port Protocol	Zigbee green power 2.4 GHz IEEE 802.15.4
Switching Capacity In Va	1250 VA
Response Time	< 30 ms after transmitter clicks
Operating Position	any position without derating
Antenna Gain	0 dBi
Utilisation Category	AC-15 : B300 EN/IEC 60947-5-1 DC-12 EN/IEC 60947-5-1
Net Weight	0.13 kg
Maximum Switching Voltage	250 V AC/DC
Time Delay Range	0.5 s - 15...15 %)
Nominal Output Current	0.3 A 48 V DC EN/IEC 60947-5-1 3 A 24 V DC UL 508 1.5 A 240 V AC EN/IEC 60947-5-1 3 A 120 V AC EN/IEC 60947-5-1 3 A 240 V AC UL 508 3 A 24 V DC CSA C22.2 No 14 3 A 240 V AC CSA C22.2 No 14
Input Output Isolation	galvanic isolation
Surge Withstand	1 kV differential mode IEC 61000-4-5 2 kV common mode IEC 61000-4-5
Rated Short-Duration Power Frequency Withstand Voltage	1.5 kV 50 Hz EN/IEC 60947-5-1
Maximum Sensing Distance	100 m in free field 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Max Power Consumption In W	1 mW
Number Of Channels	1
Breaking Capacity	15 W
Mounting Support	35 mm symmetrical DIN rail conforming to EN/IEC 60715 mounting plate
Housing Material	self-extinguishing plastic
Breaking Capacity	750 VA
Control Circuit Frequency	50...60 Hz +/- 10 %
Width	36 mm
Output Type	2 relays
Depth	75 mm
Tightening Torque	0.5-1 N.m EN/IEC 60947-1
Maximum Power Consumption In W	4 W AC/DC
Bandwidth	5-5 MHz
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP101106EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1103010EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	C-tick CCC CSA UL GOST
Standards	CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1 EN/IEC 60947-1
Electromagnetic Compatibility	immunity for industrial environments EN/IEC 61000-6-2 conducted and radiated emissionsclass B CISPR 22 electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 electrostatic discharge immunity test 6 kV on contact (on metal parts)) IEC 61000-4-2 susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) IEC 61000-4-3 susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) IEC 61000-4-3 electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4 electrical fast transient/burst immunity test 2 kV power supply wires) IEC 61000-4-4 1.2/50 µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5 1.2/50 µs shock waves immunity test 2 kV common mode) IEC 61000-4-5 conducted RF disturbances 10 V IEC 61000-4-6 immunity to microbreaks and voltage drops 10 ms IEC 61000-4-11 radiated emission ETSI EN 300 440-1 conducted emission EN 300-489-1 conducted emission ETSI EN 300 489-3 radiated emission ETSI EN 300 440-2
Shock Resistance	10 gn 16 ms) 6000 shocks IEC 60068-2-27
Marking	CE
Vibration Resistance	+/- 7.5 mm 5-14 Hz)IEC 60068-2-6 2 gn 8-150 Hz)IEC 60068-2-6
Insulation Resistance	> 500 MOhm 500 V DC NF C 20-030
Ip Degree Of Protection	IP20 IEC 60529 casing) IP20 terminals)
Pollution Degree	2 IEC 60664-1
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	II IEC 60664-1
Relative Humidity	90-90 % -20-55 °C, without condensation ETSI EN 300 440-1
Mechanical Durability	1000000 cycles
Radio Agreement	RSS SRRC ANATEL ARIB T66 FCC ICASA
Electrical Durability	100000 cycles
[Ui] Rated Insulation Voltage	250 V IEC 60664-1
