ZBRN1 – Harmony Hub wireless ethernet gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus TCP, 24…240V AC DC
ZBRN1

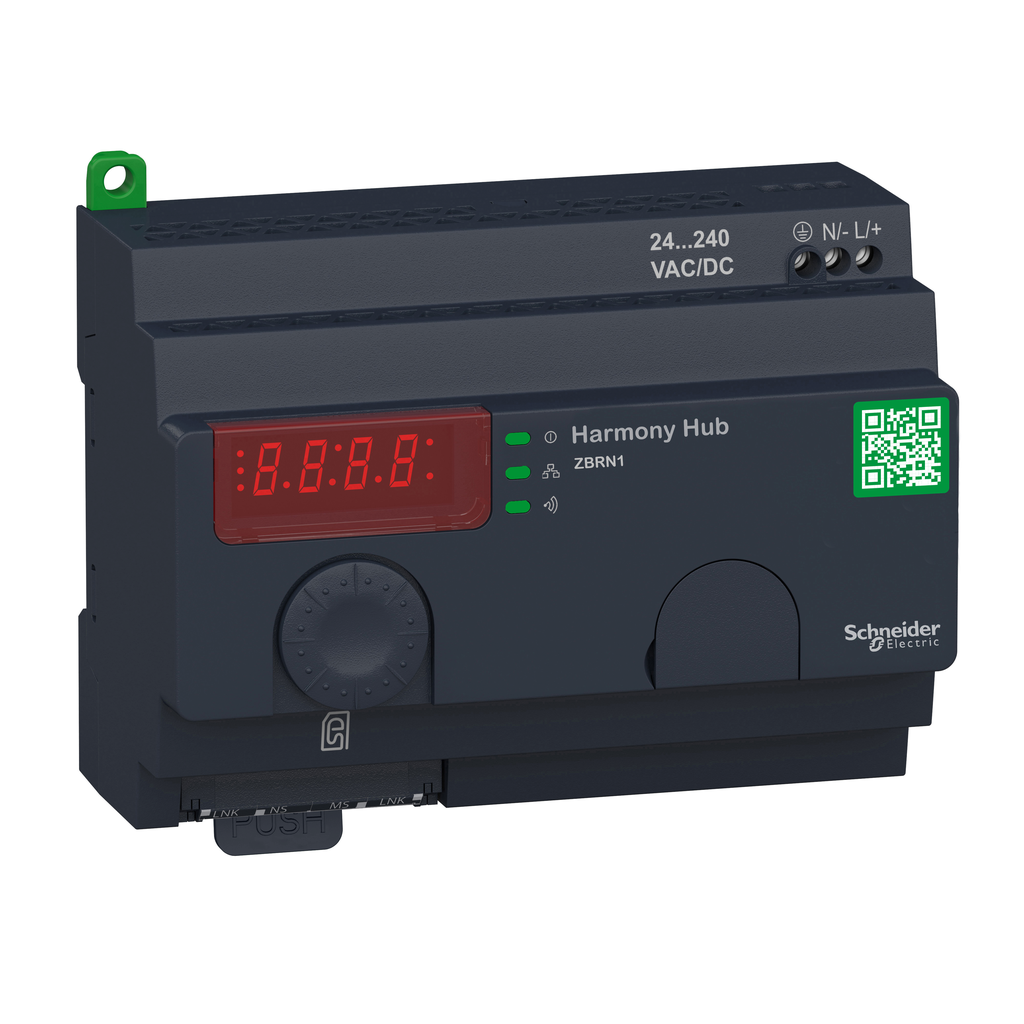

Harmony Hub wireless ethernet gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC

This configurable harmony Hub is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It provides network connectivity openness by operating as an intermediate equipment between the wireless devices and PLCs (Programmable Logic Controller) or industrial PCs (IT/OT box) that support Modbus/TCP protocols. It is equiped with 7 segment display, jog dial, 8 indicating LEDs (Power On, functions mode, communication status, signal strength) external antenna connector and protective plug. It features 1 slot for communication module ZBRCETH (should be ordered separately). It weighs 270g.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Antenna Type integrated
Range Of Product Harmony
Product Or Component Type Harmony Hub Wireless/Ethernet gateway
Communication Port Protocol Modbus/TCP client application, with ZBRCETH module
Product Specific Application Wireless Schneider Electric devices ecosystem
Function Of Module Zigbee green power gateway
Device Short Name ZBRN1
Transmission Frequency 2405-2480 MHz
Electrical Connection
  • 1 conductor cable 0.2-4 mm² - AWG 24...AWG 12 - solid - without cable end IEC 60947-1
  • 2 conductors cable 0.2-1.5 mm² - AWG 24...AWG 16 - solid - without cable end IEC 60947-1
  • 1 conductor cable 0.2-0.75 mm² - AWG 24...AWG 14 - flexible - with cable end IEC 60947-1
  • 2 conductors cable 0.2-2.5 mm² - AWG 24...AWG 18 - flexible - with cable end IEC 60947-1
[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz - 10...10 %
Height 90 mm
Short-Circuit Protection 16 A GB2 circuit breaker
[Uimp] Rated Impulse Withstand Voltage 4 kV
Integrated Connection Type Ethernet Modbus TCP/IP RJ45 Modbus TCP network, 10/100 Mbit/s, 2 twisted pairs
Status Led
  • 1 LED Green power ON
  • 1 LED Yellow communication network
  • 5 LEDs Red function mode
  • 1 LED green and yellow reception signal
Channels Utilisation <= 60 devices
Immunity To Microbreaks 10 ms
Response Time < 30 ms
Operating Position any position
Antenna Gain 0 dBi
Net Weight 0.26 kg
Topology devices linked by daisy-chaining or tap junctions
Surge Withstand
  • 1 kV differential mode IEC 61000-4-5
  • 2 kV common mode IEC 61000-4-5
Rated Short-Duration Power Frequency Withstand Voltage 1.5 kV 50 Hz EN/IEC 60947-5-1
Maximum Sensing Distance
  • 100 m in free field
  • 250 m if a relay antenna is located between the transmitter and Harmony Hub
  • 60 m if an external antenna is connected to Harmony Hub
  • 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure
Mounting Support
  • 35 mm symmetrical DIN rail conforming to EN/IEC 60715
  • mounting plate
Housing Material self-extinguishing plastic
Control Circuit Frequency 50...60 Hz +/- 10 %
Port Ethernet 10BASE-T/100BASE-T
Width 122 mm
Depth 60 mm
Tightening Torque
  • 0.35-0.4 N.m EN/IEC 60947-1
  • 3.09-3.54 lbf.in EN/IEC 60947-1
Maximum Power Consumption In W 4 W AC/DC
Maximum Cable Distance Between Devices 1000 m
Data Storage Equipment SD card
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP101106EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1103010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • C-tick
  • CCC
  • CSA
  • GOST
  • UL
  • CE
Standards
  • ETSI EN 300 328
  • EN/IEC 61131-2
  • CSA C22.2 No 14
  • ETSI EN 300 440-2
  • UL 508
  • EN/IEC 60950-1
  • EN 62311
Storage Altitude 0-3000 m
Electromagnetic Compatibility
  • 1.2/50 µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5
  • 1.2/50 µs shock waves immunity test 2 kV common mode) IEC 61000-4-5
  • immunity to microbreaks and voltage drops 10 ms IEC 61000-4-11
Shock Resistance 10 gn 16 ms) 6000 shocks IEC 60068-2-27
Vibration Resistance
  • +/- 3.5 mm 5-14 Hz) IEC 60068-2-6
  • 1 gn 5-150 Hz) on panel mounting IEC 60068-2-6
  • 2 gn 8-150 Hz) on DIN rail IEC 60068-2-6
Ip Degree Of Protection
  • IP20 IEC 60529 casing)
  • IP20 terminals)
Pollution Degree 2 IEC 60664-1
Directives
  • 2004/108/EC - electromagnetic compatibility
  • 1999/5/EC - R&TTE directive
  • 2006/95/EC - low voltage directive
Ambient Air Temperature For Storage -40-70 °C
Relative Humidity 90-90 % -25-55 °C, without condensation ETSI EN 300 440-1
Radio Agreement
  • ANATEL, type III ETSI EN 301 489-3
  • FCC, category 2 ETSI EN 300 440-1
  • ICASA
  • RSS, category 1 ETSI EN 300 440-1
  • SRRC
Operating Altitude 0...6561.68 ft (0...2000 m)
Dielectric Strength
  • 3000 V between input and output AC
  • 4250 V between input and output DC
  • 1500 V between input and ground AC
  • 2150 V between input and ground DC
