ZBRM01

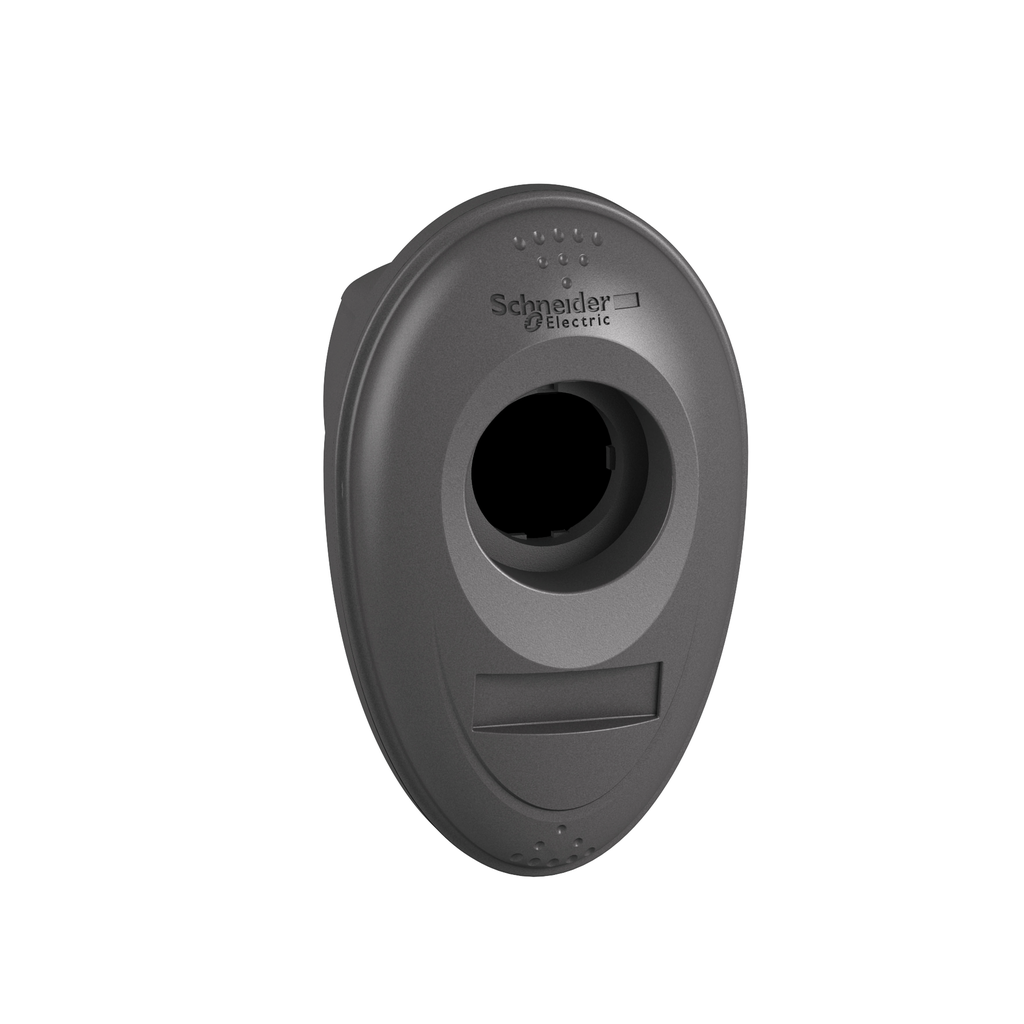

Empty handy box, Harmony XB5R, plastic, dark grey, 1 cut-out, 22mm
This empty handy box provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments This empty handy box is realise with a green plastic
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Station Application | one function |
|---|---|
| Product Destination | for XB5R Ø 22 mm control units |
| Range Of Product | Harmony XB5R |
| Mounting Diameter | 22 mm |
| Product Or Component Type | empty handy box |
| Device Short Name | ZBRM |
| Warranty | 18 months |
| Colour Of Base Of Enclosure | dark grey RAL 7016) |
| Material | polycarbonate |
| Net Weight | 0.2 kg |
| Colour Of Cover | dark grey RAL 7016) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 EN 50102 |
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Directives |
|
| Ambient Air Temperature For Storage | -40-70 °C |
