ZBRA2

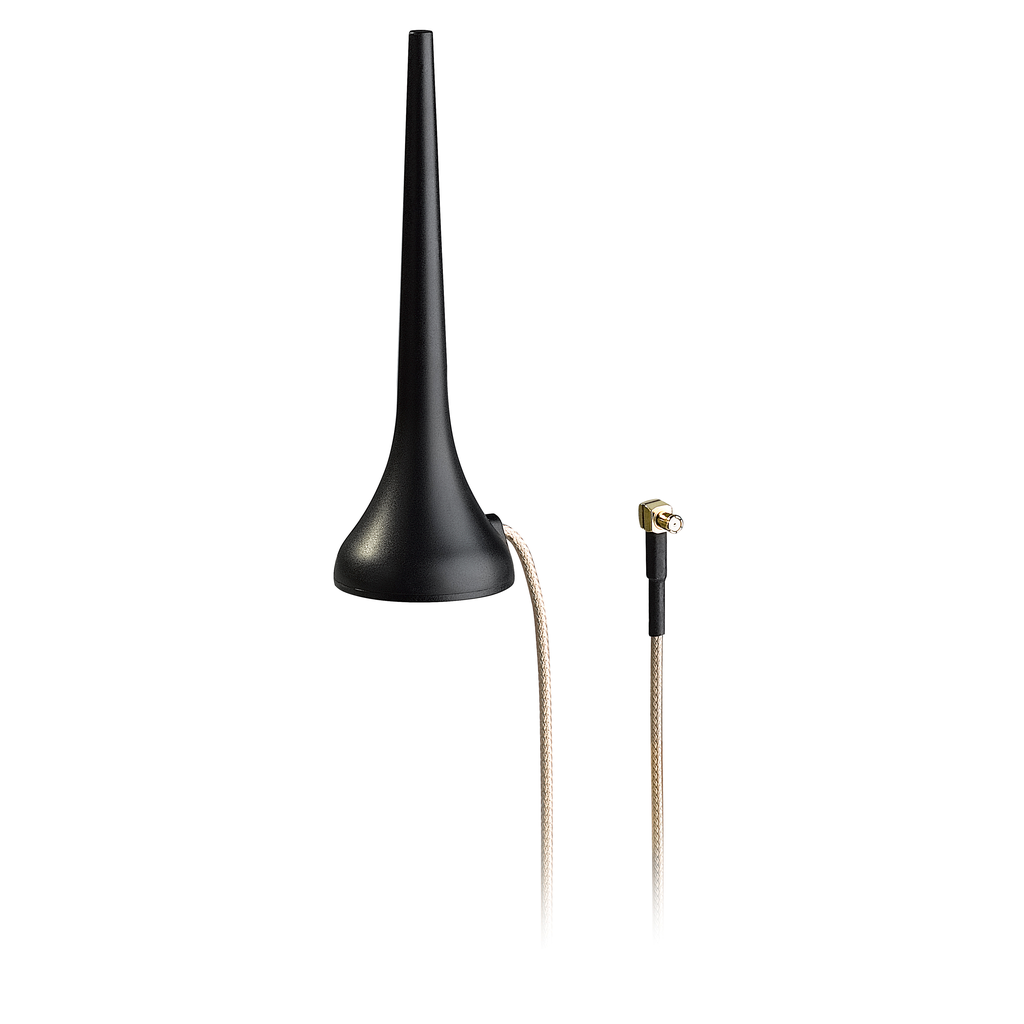

External antenna for harmony Hub ZBRN1 and ZBRN2, Harmony XB5R, 2m cable, 1 radio frequency connector
This wireless and batteyless transceiver provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination | wireless access point |
|---|---|
| Range Of Product | Harmony XB5R |
| Colour Of Base Of Enclosure | black RAL 9011) |
| Product Or Component Type | wireless and batteryless range |
| Device Short Name | ZBRA |
| Connector Type | MCX female |
| Maximum Sensing Distance | 100 m access point in free field |
| Antenna Gain | 3 dBi 83-100 Hz |
| Input Impedance | 50 Ohm |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Net Weight | 0.04 kg |
| Kit Composition | antenna with cable 2 m |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1103010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Relative Humidity | 90-90 % -20-55 °C, without condensation ETSI EN 300 440-1 |
| Electrical Shock Protection Class | class II IEC 61140 |
