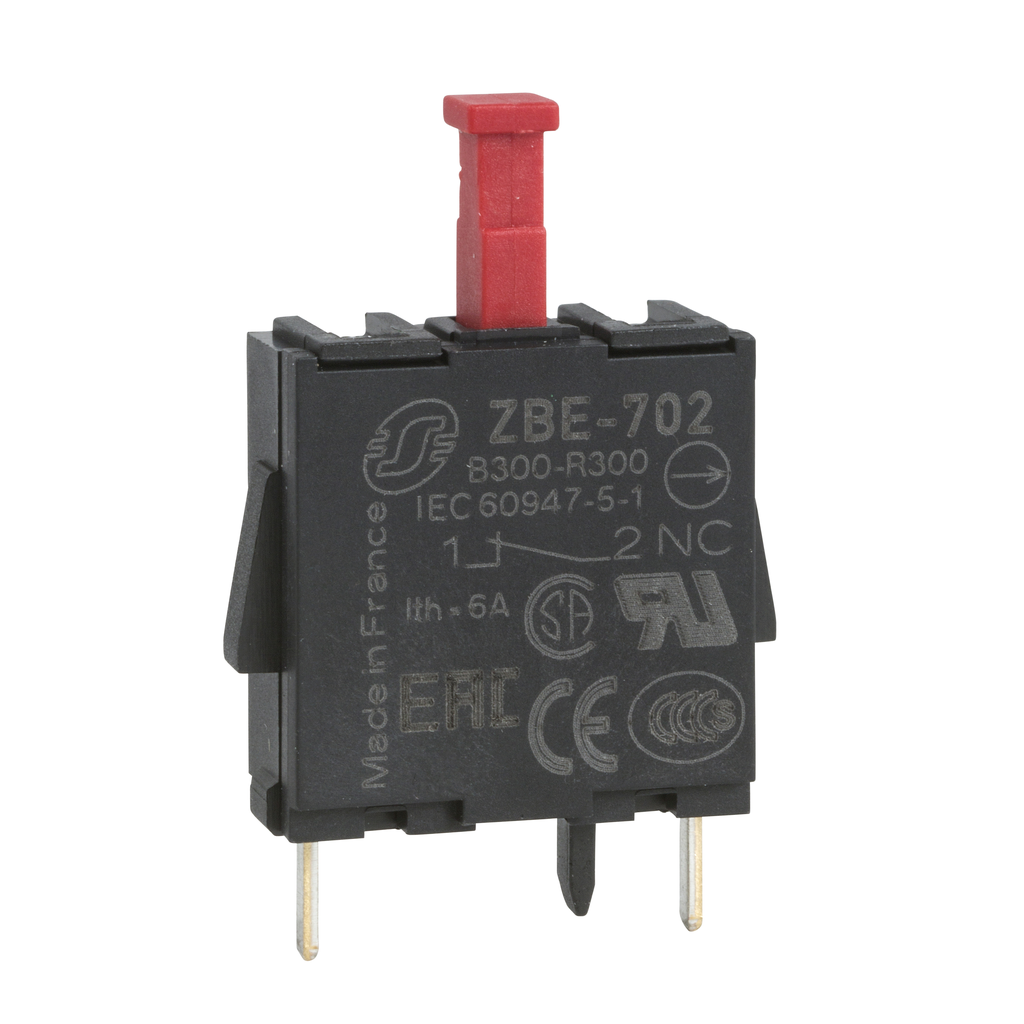

This Harmony ZB, single contact block uses PCB terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple PCB connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueContacts Usage | standard contacts |
---|---|
Range Of Product |
|
Contact Block Type | single |
Product Or Component Type | contact block |
Ip Degree Of Protection | IP20 IEC 60529 |
Connections - Terminals | pins for printed circuit board |
Sale Per Indivisible Quantity | 10 |
Contact Operation | slow-break |
Device Short Name | ZBE |
Warranty | 18 months |
Contacts Type And Composition | 1 NC |
Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Force | 2 N NC changing electrical state |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 6 A EN/IEC 60947-5-1 |
Net Weight | 0.011 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
[Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
[Ie] Rated Operational Current |
|
Mechanical Durability | 5000000 cycles |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ambient Air Temperature For Storage | -40-70 °C |
Protective Treatment | TH |
