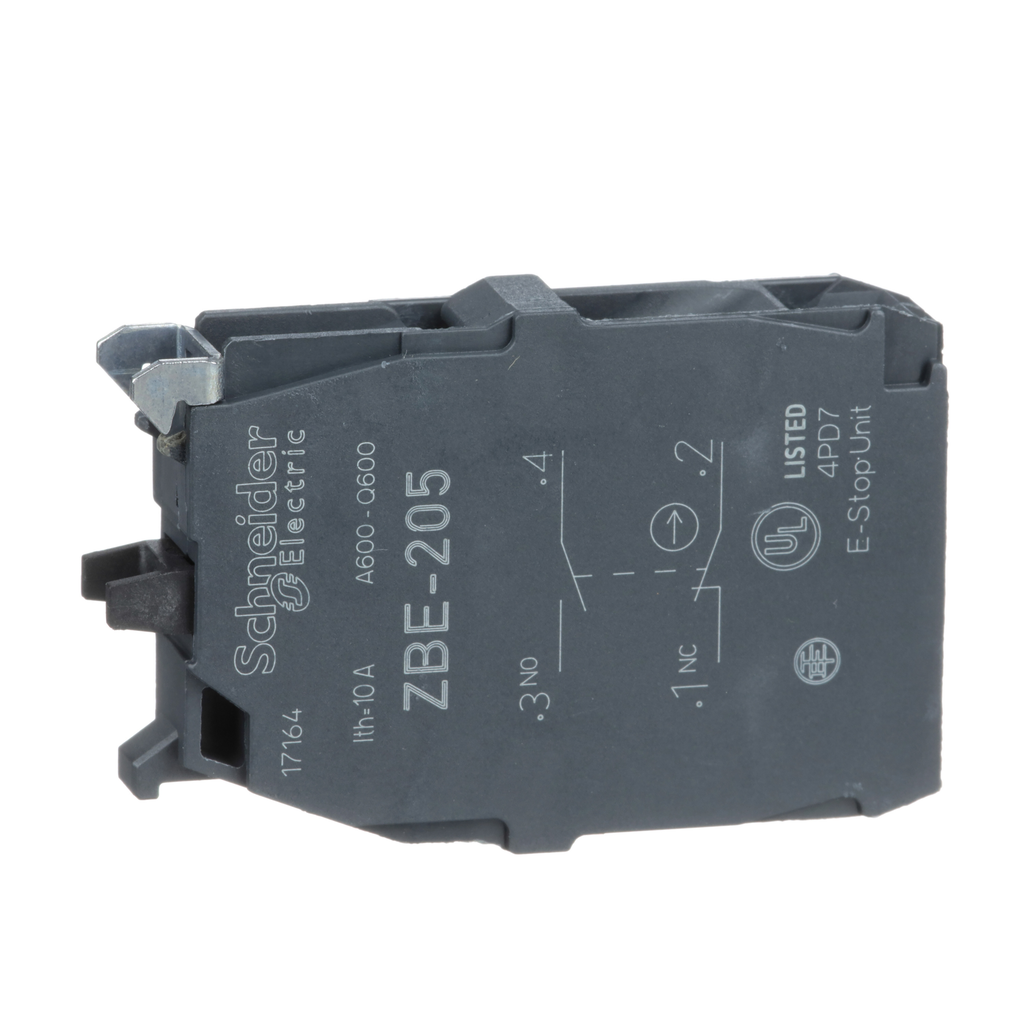

ZBE205 – Harmony, 22mm Push Button, add on contact block, 1 NO and 1 NC, screw clamp terminal
ZBE205
Harmony, 22mm Push Button, add on contact block, 1 NO and 1 NC, screw clamp terminal

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Contacts Usage standard contacts
Range Of Product
  • Harmony XB4
  • Harmony XB5
Contact Block Type double
Product Or Component Type contact block
Ip Degree Of Protection IP20 IEC 60529
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Sale Per Indivisible Quantity 5
Contact Operation slow-break
Device Short Name ZBE
Warranty 18 months
Mounting Of Block front mounting
Contacts Type And Composition 1 NO + 1 NC
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force 4.6 N NC + NO changing electrical state
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with EN/IEC 60947-5-1 appendix K
Electrical Composition Code
  • C2 3 )
  • C4 2 )
  • C6 2 )
  • C8 1 )
  • C10 2 )
  • C13 3 )
  • M2 2 )
  • M4 2 )
  • M8 2 )
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Net Weight 0.02 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Device Presentation basic element
Electrical Durability
  • 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Mechanical Durability 10000000 cycles
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shape Of Screw Head
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1808008EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1808008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • DNV
  • CSA
  • LROS (Lloyds register of shipping)
  • BV
  • GL
  • GOST
  • UL
  • CCC
Ambient Air Temperature For Operation -40-70 °C
Standards
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • EN/IEC 60947-5-4
  • EN/IEC 60947-1
  • UL 508
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage -40-70 °C
Protective Treatment TH
