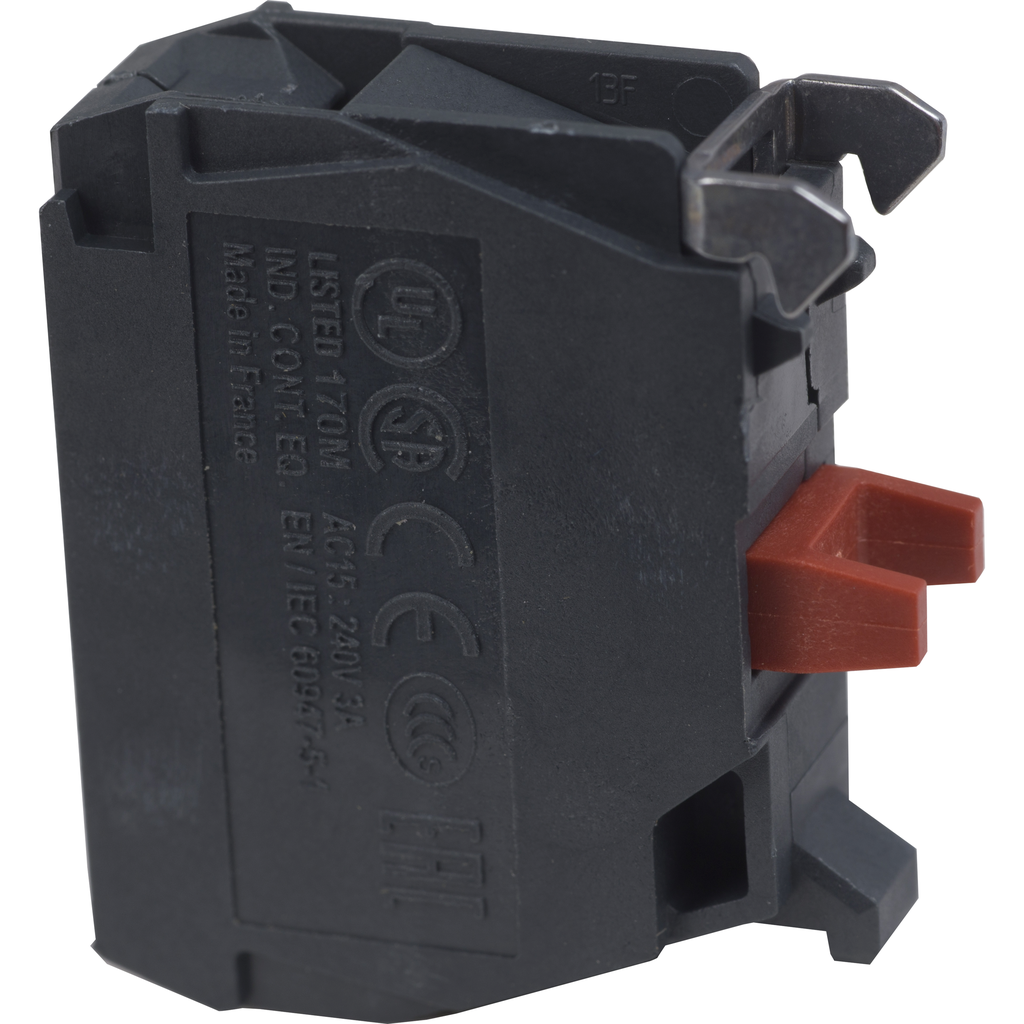

ZBE102TQ – Contact block, Harmony XB4, Harmony XB5, single contact, standard contact, screw clamp terminals, 1NC
ZBE102TQ
Contact block, Harmony XB4, Harmony XB5, single contact, standard contact, screw clamp terminals, 1NC

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Contacts Usage standard contacts
Range Of Product
  • Harmony XB4
  • Harmony XB5
Contact Block Type single
Product Or Component Type contact block
Ip Degree Of Protection IP20 IEC 60529
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Sale Per Indivisible Quantity 100
Contact Operation slow-break
Device Short Name ZBE
Warranty 18 months
Mounting Of Block front mounting
Contacts Type And Composition 1 NC
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force 2 N NC changing electrical state
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with EN/IEC 60947-5-1 appendix K
Electrical Composition Code
  • C1 9 )
  • C2 7 )
  • C3 6 )
  • C4 4 )
  • C5 5 )
  • C6 3 )
  • C7 4 )
  • C8 2 )
  • C9 3 )
  • C12 6 )
  • M1 6 )
  • M2 4 )
  • M3 4 )
  • M5 2 )
  • M6 2 )
  • M7 6 )
  • M8 4 )
  • M9 2 )
  • SF1 3 )
  • SF2 2 )
  • MF1 2 )
  • MF2 2 )
  • C10 2 )
  • M4 2 )
  • C13 1 )
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Mechanical Durability 10000000 cycles
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shape Of Screw Head
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1808008EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1808008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CSA
  • UL
  • CCC
  • GOST
  • DNV
  • BV
  • GL
  • LROS (Lloyds register of shipping)
Ambient Air Temperature For Operation -40-70 °C
Standards
  • EN/IEC 60947-5-4
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • EN/IEC 60947-1
  • EN/IEC 60947-5-1
  • UL 508
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage -40-70 °C
Protective Treatment TH
