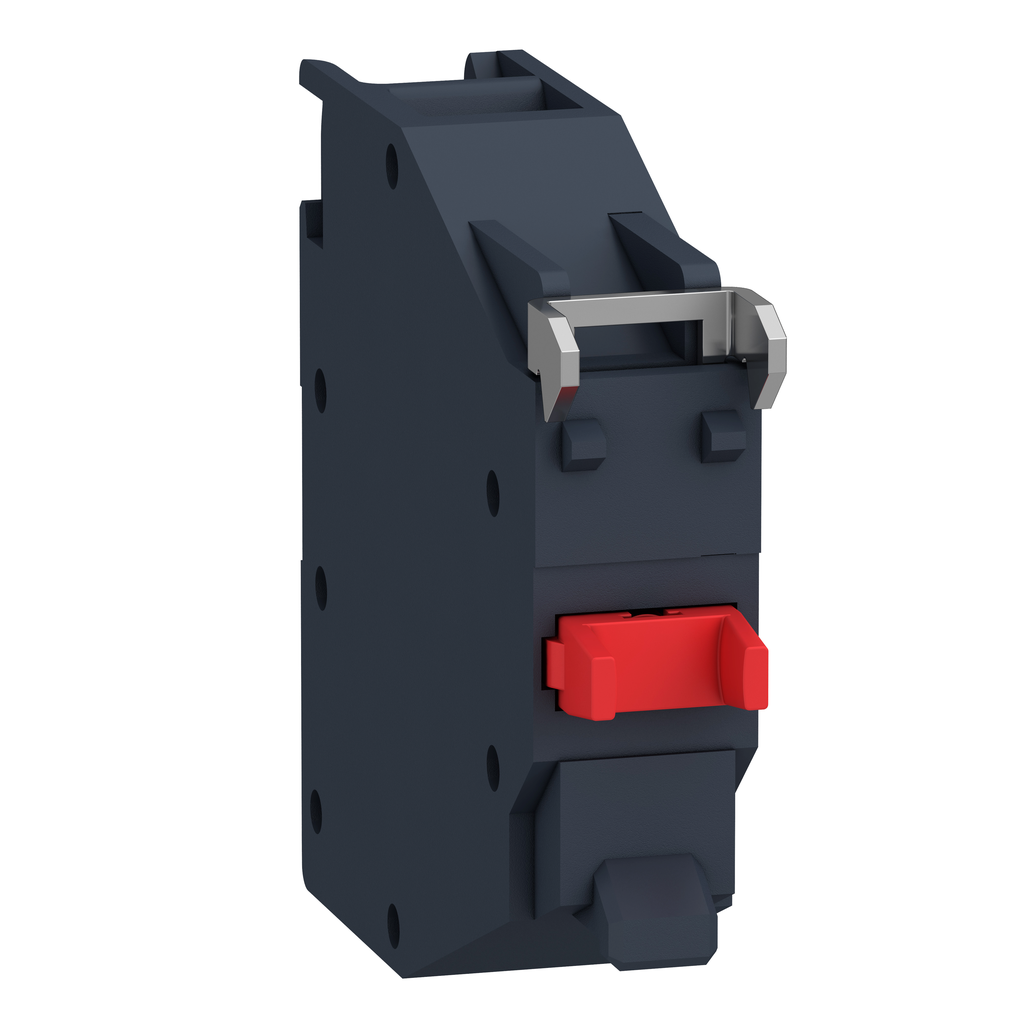

ZBE102GEX
Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC
Specifications
| Connections - Terminals |
|
|---|---|
| Contacts Usage | gas protected contact |
| Sale Per Indivisible Quantity | 1 |
| Range Of Product | Harmony XB4 |
| Contact Operation | standard |
| Contact Block Type | single |
| Product Or Component Type | contact block |
| Device Short Name | ZBE |
| Mounting Of Block | front mounting |
| Contacts Type And Composition | 1 NC |
| [Ui] Rated Insulation Voltage | 415 V |
| Operating Force | 2.873 N |
| [Ie] Rated Operational Current |
|
| Operating Travel |
|
| Mechanical Durability | 1000000 cycles |
| Positive Opening | with |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Marking | Ex db eb IIC Gb |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Cad Overall Width | 38 mm |
| Cad Overall Depth | 42.4 mm |
| Net Weight | 0.019 kg |
| Cad Overall Height | 10 mm |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications | cULus |
| Ambient Air Temperature For Operation | -50-75 °C |
| Ambient Air Temperature For Storage | -50-70 °C |
| Standards |
|
| Environmental Characteristic | hazardous location class I division 2 |
| Protective Treatment | TH |
