ZBE1025

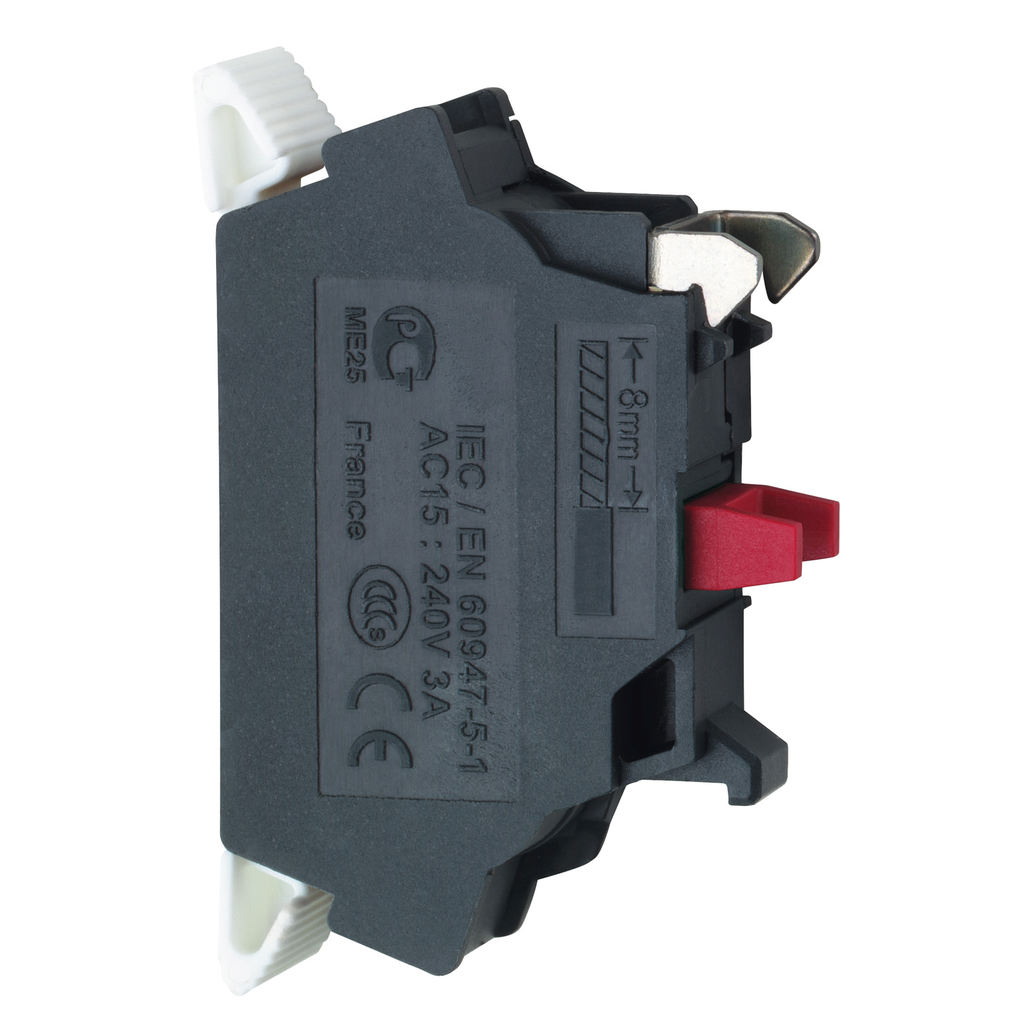

Single contact block, Harmony XB4, silver alloy, spring clamp terminal, 1NC
This Harmony ZB, XB5 single contact block contact block uses spring clamp connection. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Contacts Usage | standard contacts |
|---|---|
| Range Of Product |
|
| Contact Block Type | single |
| Product Or Component Type | contact block |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Connections - Terminals | spring clamp terminals |
| Sale Per Indivisible Quantity | 4 |
| Contact Operation | slow-break |
| Device Short Name | ZBE |
| Warranty | 18 months |
| Mounting Of Block | front mounting |
| Contacts Type And Composition | 1 NC |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Operating Force | 2 N NC changing electrical state |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| Electrical Composition Code |
|
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Net Weight | 0.011 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Device Presentation | basic element |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 10000000 cycles |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
