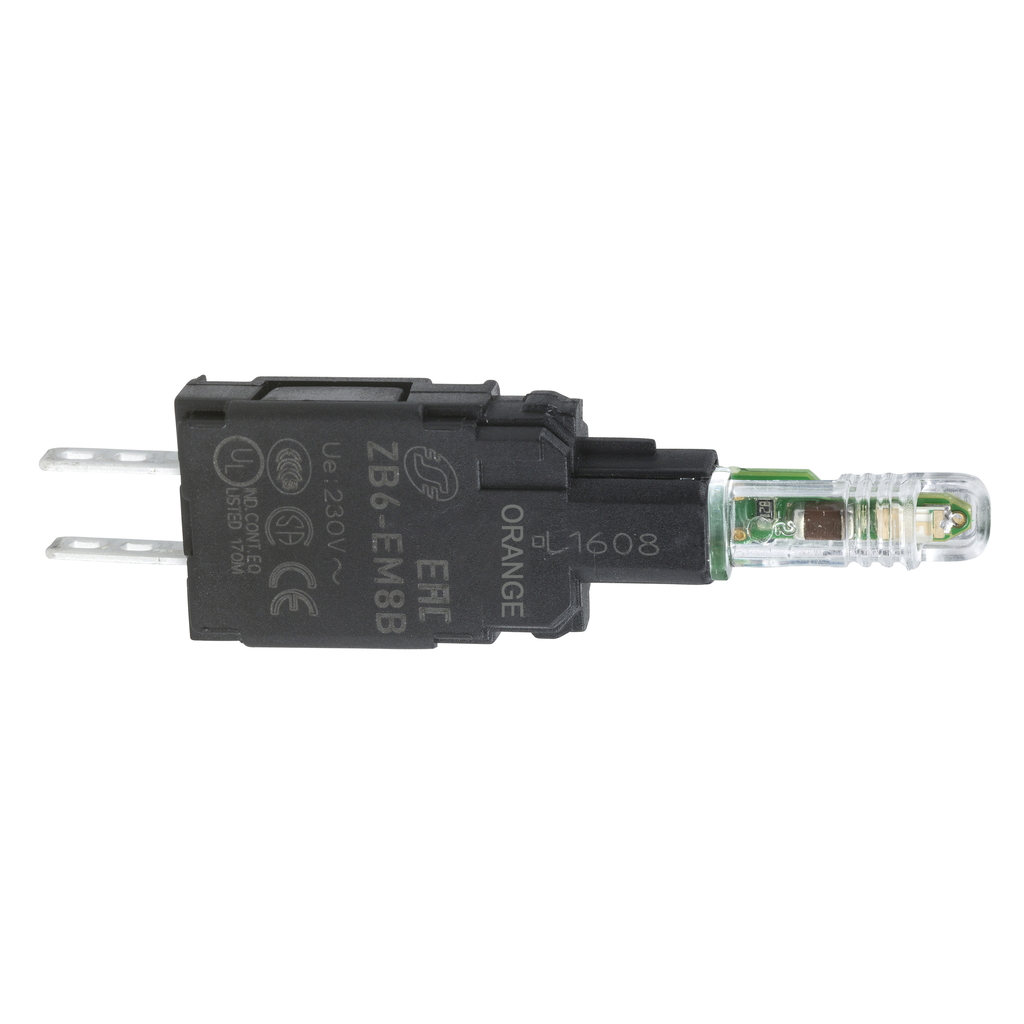

ZB6EM8B
Complete body for pilot lights, Harmony XB6, orange light block, with body/fixing collar, integral LED, 230...240V AC
Specifications
| [Us] Rated Supply Voltage | 230...240 V AC |
|---|---|
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Sale Per Indivisible Quantity | 5 |
| Range Of Product | Harmony XB6 |
| Light Source Colour | orange |
| Light Source | LED |
| Light Block Supply | direct |
| Product Or Component Type | complete body for pilot lights |
| Device Short Name | ZB6 |
| Bulb Base | integral LED |
| Warranty | 18 months |
| Surge Withstand |
|
| Terminals Description Iso N°1 | (X1-X2)PL |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Signalling Type | steady |
| Supply Voltage Limits | 195-264 V AC |
| Operating Position | any position |
| Cad Overall Depth | 58 mm |
| Net Weight | 0.003 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Cad Overall Height | 14 mm |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Resistance To Electrostatic Discharge |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance |
|
| Vibration Resistance |
|
| Protective Treatment | TC |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Electromagnetic Emission | class B IEC 55011 |
