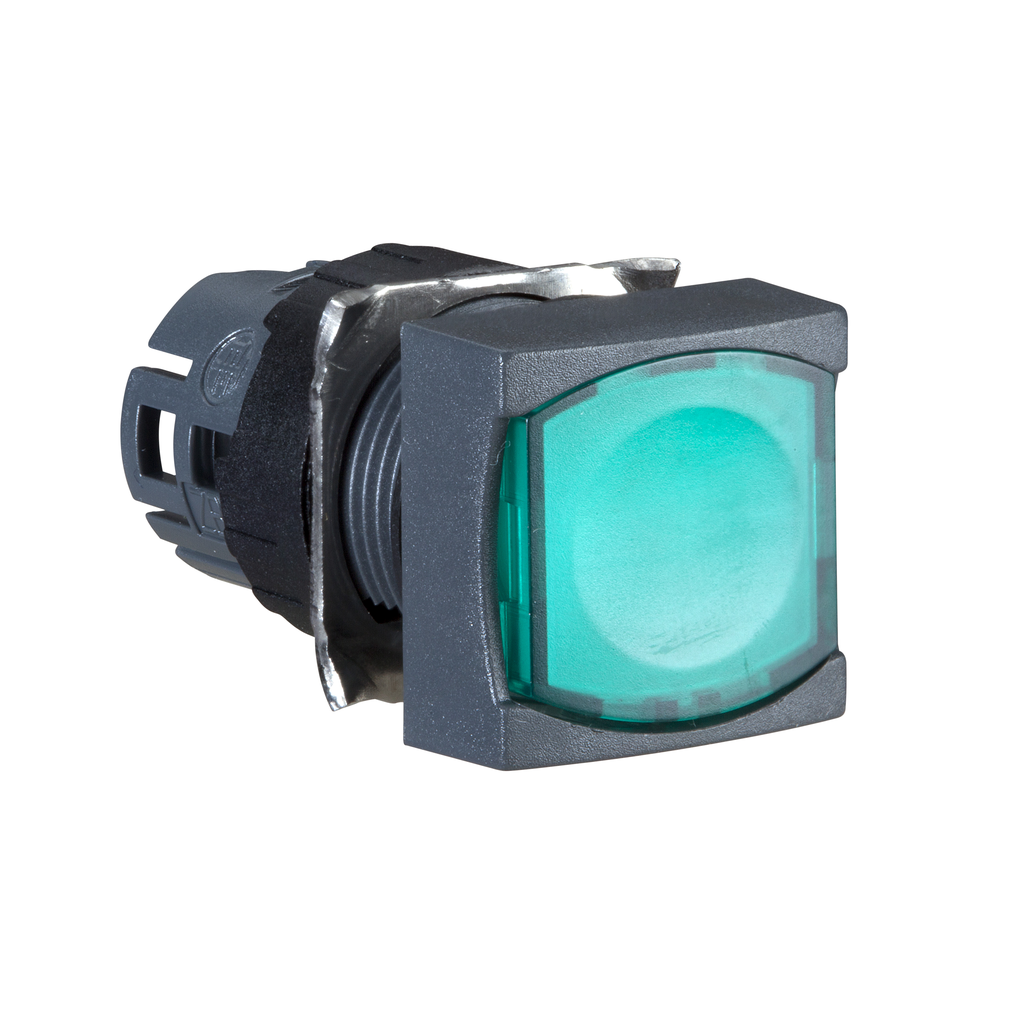

This Harmony ZB6CW3 is a green square flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB6 |
---|---|
Mounting Diameter | 16 mm |
Type Of Operator | spring return |
Product Or Component Type | head for illuminated push-button |
Shape Of Signaling Unit Head | square |
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic |
Operator Profile | green flush, unmarked |
Product Compatibility | integral LED |
Device Short Name | ZB6 |
Warranty | 18 months |
Net Weight | 0.016 kg |
Cad Overall Height | 18 mm |
Cad Overall Width | 18 mm |
Cad Overall Depth | 33 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance |
|
Ip Degree Of Protection | IP65 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 61140 |
Protective Treatment | TC |
