ZB6AS934 - Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger/latching key to release, unmarked

ZB6AS934

Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger/latching key to release, unmarked

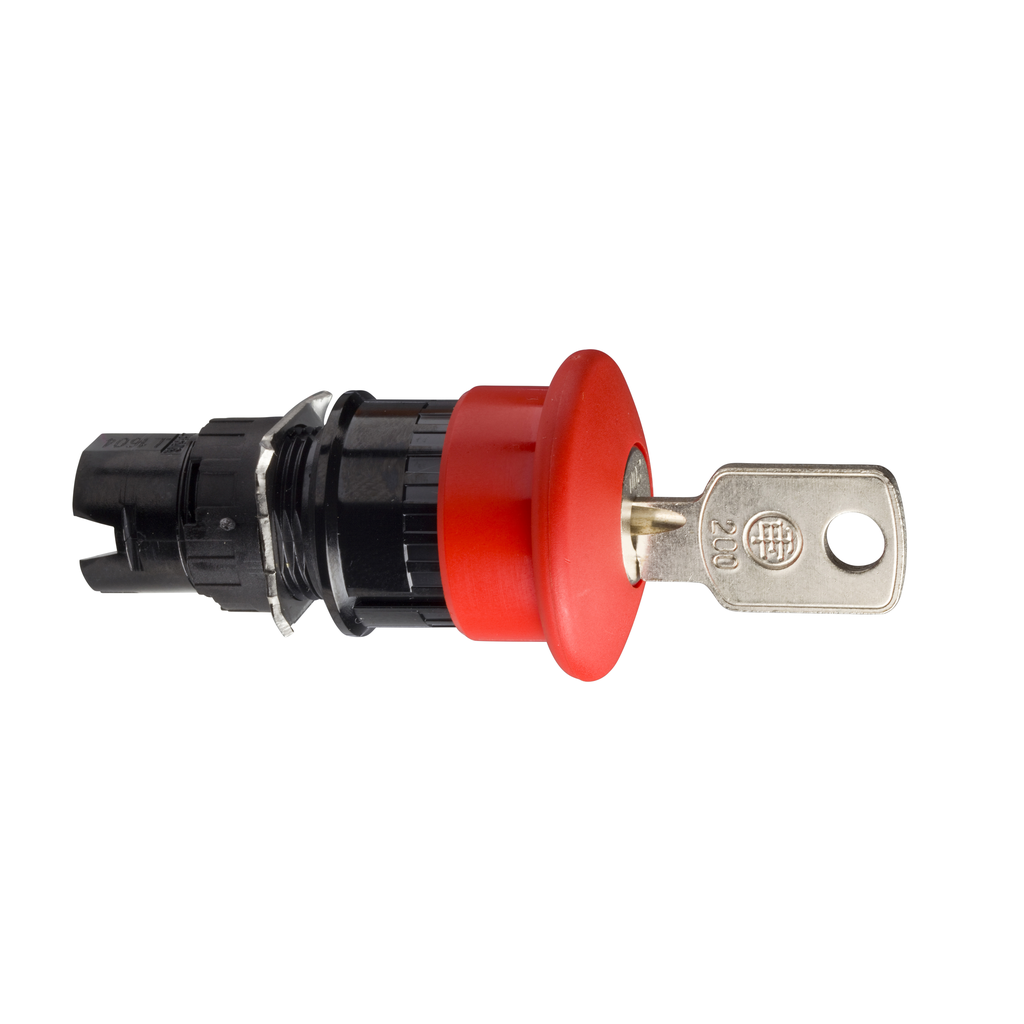

This Harmony ZB6AS934 is a red diameter 30mm Emergency stop push button head, trigger and latching key release. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Reset	key release
Sale Per Indivisible Quantity	1
Range Of Product	Harmony XB6
Bezel Material	plastic
Operator Profile	red mushroom Ø 30 mm, unmarked
Mounting Diameter	16 mm
Type Of Operator	trigger action and mechanical latching
Product Or Component Type	head for emergency stop push-button
Shape Of Signaling Unit Head	round
Device Short Name	ZB6
Type Of Keylock	key 200
Warranty	18 months
Mechanical Durability	100000 cycles
Cad Overall Width	30 mm
Cad Overall Depth	70 mm
Net Weight	0.05 kg
Cad Overall Height	30 mm
China Rohs Regulation	X
Circularity Profile	ENVEOLI1710010EN
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1710010EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Product Certifications	UL CSA GOST CCC
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Standards	JIS C8201-5-1 UL 508 EN/ISO 13850 JIS C 852 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-5 EN/IEC 60204-1 JIS C8201-1
Nema Degree Of Protection	NEMA 13 UL 50 NEMA 4 UL 50 NEMA 4X UL 50 NEMA 13 CSA C22.2 No 94 NEMA 4 CSA C22.2 No 94 NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class	class II IEC 61140
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	+/- 3 mm 2-500 Hz)IEC 60068-2-6 5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment	TC
Ip Degree Of Protection	IP65 IEC 60529
