ZB6AS834 - Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger/latching turn to release, unmarked

ZB6AS834

Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger/latching turn to release, unmarked

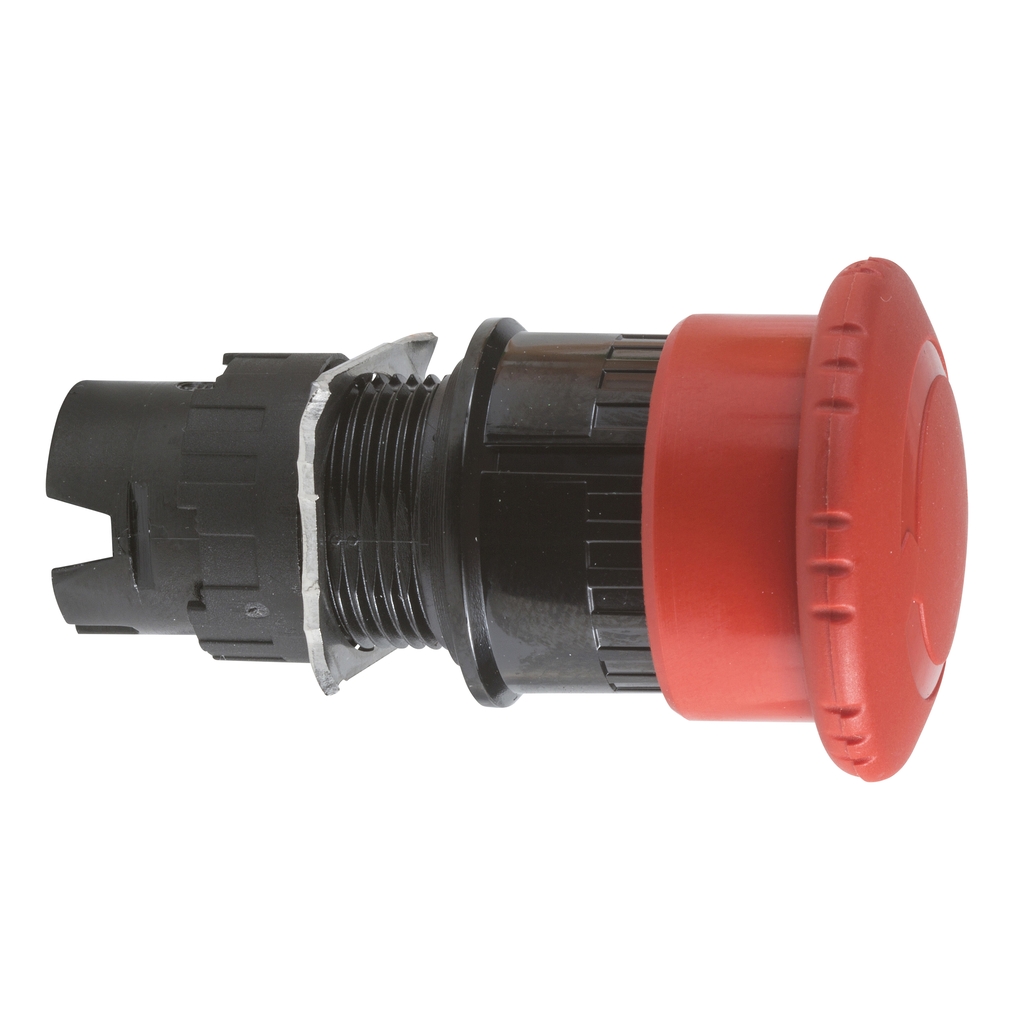

This Harmony ZB6AS834 is a red diameter 30mm Emergency stop push button head, trigger and latching turn release. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Reset	turn to release
Range Of Product	Harmony XB6
Mounting Diameter	16 mm
Type Of Operator	trigger action and mechanical latching
Product Or Component Type	head for emergency stop push-button
Shape Of Signaling Unit Head	round
Sale Per Indivisible Quantity	1
Bezel Material	plastic
Operator Profile	red mushroom Ø 30 mm, unmarked
Device Short Name	ZB6
Warranty	18 months
Net Weight	0.035 kg
Cad Overall Height	30 mm
Mechanical Durability	100000 cycles
Cad Overall Width	30 mm
Cad Overall Depth	50 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1710010EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	ENVEOLI1710010EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CCC CSA GOST UL
Ambient Air Temperature For Operation	-25-70 °C
Standards	JIS C 852 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/ISO 13850 EN/IEC 60947-5-5 EN/IEC 60204-1 JIS C8201-5-1 UL 508 JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	+/- 3 mm 2-500 Hz)IEC 60068-2-6 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP65 IEC 60529
Ambient Air Temperature For Storage	-40-70 °C
Nema Degree Of Protection	NEMA 13 UL 50 NEMA 4 UL 50 NEMA 4X UL 50 NEMA 13 CSA C22.2 No 94 NEMA 4 CSA C22.2 No 94 NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class	class II IEC 61140
Protective Treatment	TC
