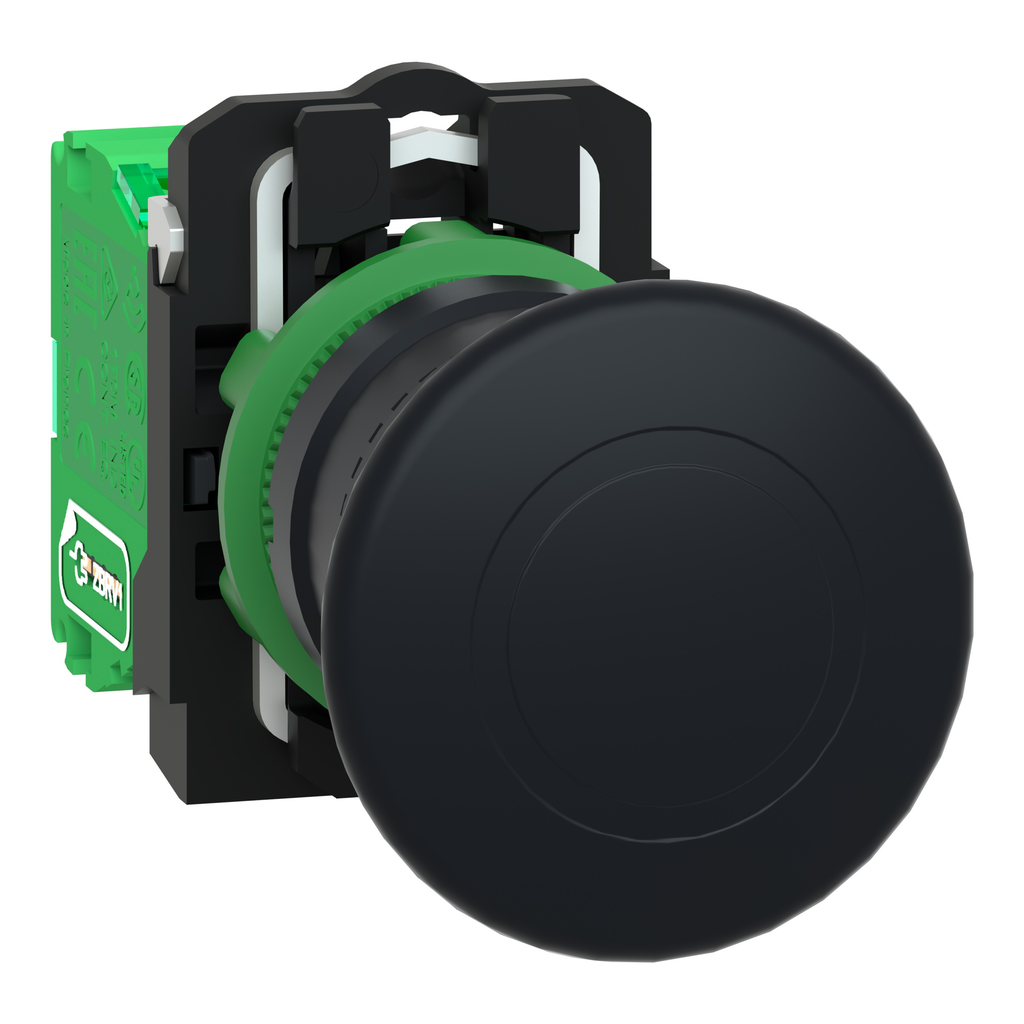

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return black mushroom head, diameter 40mm. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 55g.
Brand: Schneider Electric
Add to Quote CatalogueAntenna Type | omnidirectional |
---|---|
Range Of Product | Harmony XB5 |
Transmission Frequency | 2405 MHz |
Mounting Diameter | 40 mm |
Product Or Component Type | wireless and batteryless transmitter |
Fixing Collar Material | plastic |
Level Or Class | 5M00G7W |
Bezel Material | dark grey plastic |
Device Short Name | XB5R |
Warranty | 18 months |
Mechanical Robustness | free fall resistance 1000 mm EN/IEC 60068-2-32 |
Operating Force | 10 N C/O changing electrical state |
Modulation Technique | O-QPSK |
Standards |
|
Embedding Depth | 43 mm |
Operating Travel | 4.3 mm total travel) |
Fixing Mode | fixing nut beneath head 2-2.4 N.m |
Type Of Operator | spring return push-button with transmitter |
Acquisition Time | 2 ms |
Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
Shape Of Signaling Unit Head | round |
Response Time | < 2 ms |
Antenna Gain | 0 dBi |
Cad Overall Height | 42.75 mm |
Maximum Sensing Distance |
|
Max Power Consumption In W | 1 mW |
Number Of Channels | 16 |
Radio Agreement |
|
Cad Overall Width | 27.8 mm |
Emission Power | 3 mW |
Device Composition |
|
Cad Overall Depth | 28.8 mm |
Bandwidth | 5-5 MHz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP101106EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1103010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Electromagnetic Compatibility |
|
Shock Resistance |
|
Vibration Resistance | +/- 10 mm 2-11 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Directives |
|
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 95-95 % -40-70 °C without condensation |
Mechanical Durability | 1000000 cycles |
