ZB5RTA331

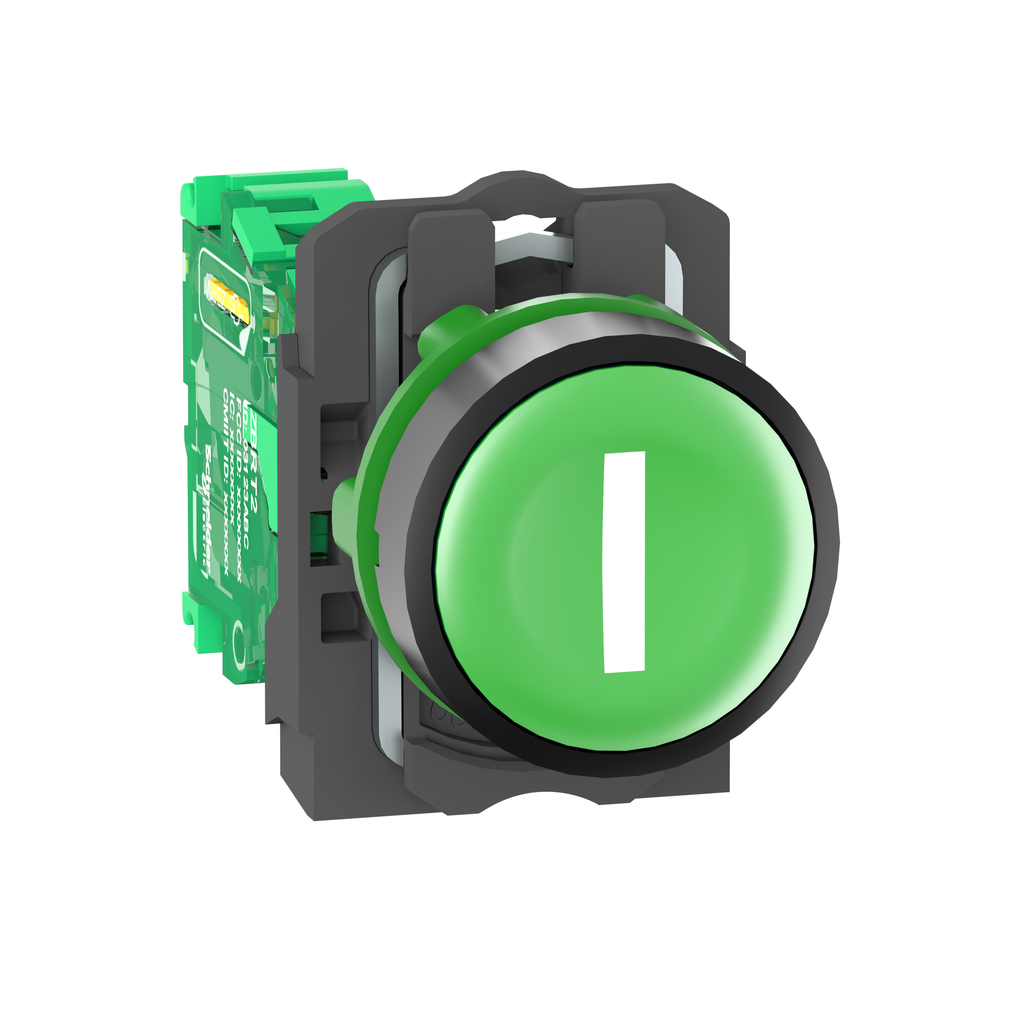

Wireless and batteryless transmitter, Harmony XB5R, push button, plastic, green, 22mm, spring return, marked I
This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP30, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications ( Marine certification, IP65, IP30, Type 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Antenna Type | omnidirectional |
|---|---|
| Range Of Product | Harmony XB5 |
| Transmission Frequency | 2405 MHz |
| Mounting Diameter | 22 mm |
| Product Or Component Type | wireless and batteryless transmitter |
| Fixing Collar Material | plastic |
| Level Or Class | 5M00G7W |
| Bezel Material | dark grey plastic |
| Device Short Name | XB5R |
| Warranty | 18 months |
| Mechanical Robustness | free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Operating Force | 10 N C/O changing electrical state |
| Modulation Technique | O-QPSK |
| Standards |
|
| Embedding Depth | 42 mm |
| Operating Travel | 4.3 mm total travel) |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Type Of Operator | spring return push-button with transmitter |
| Electrical Composition Code | PW1 |
| Acquisition Time | 2 ms |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Shape Of Signaling Unit Head | round |
| Response Time | < 2 ms |
| Antenna Gain | 0 dBi |
| Net Weight | 0.045 kg |
| Cad Overall Height | 41.5 mm |
| Maximum Sensing Distance |
|
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 16 |
| Operator Profile | green flush, I white) |
| Station Name |
|
| Radio Agreement |
|
| Cad Overall Width | 30 mm |
| Emission Power | 3 mW |
| Cad Overall Depth | 43 mm |
| Bandwidth | 5-5 MHz |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP101106EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Electromagnetic Compatibility |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection |
|
| Directives |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 95-95 % -40-70 °C without condensation |
| Mechanical Durability | 1000000 cycles |
