ZB5FW113C0

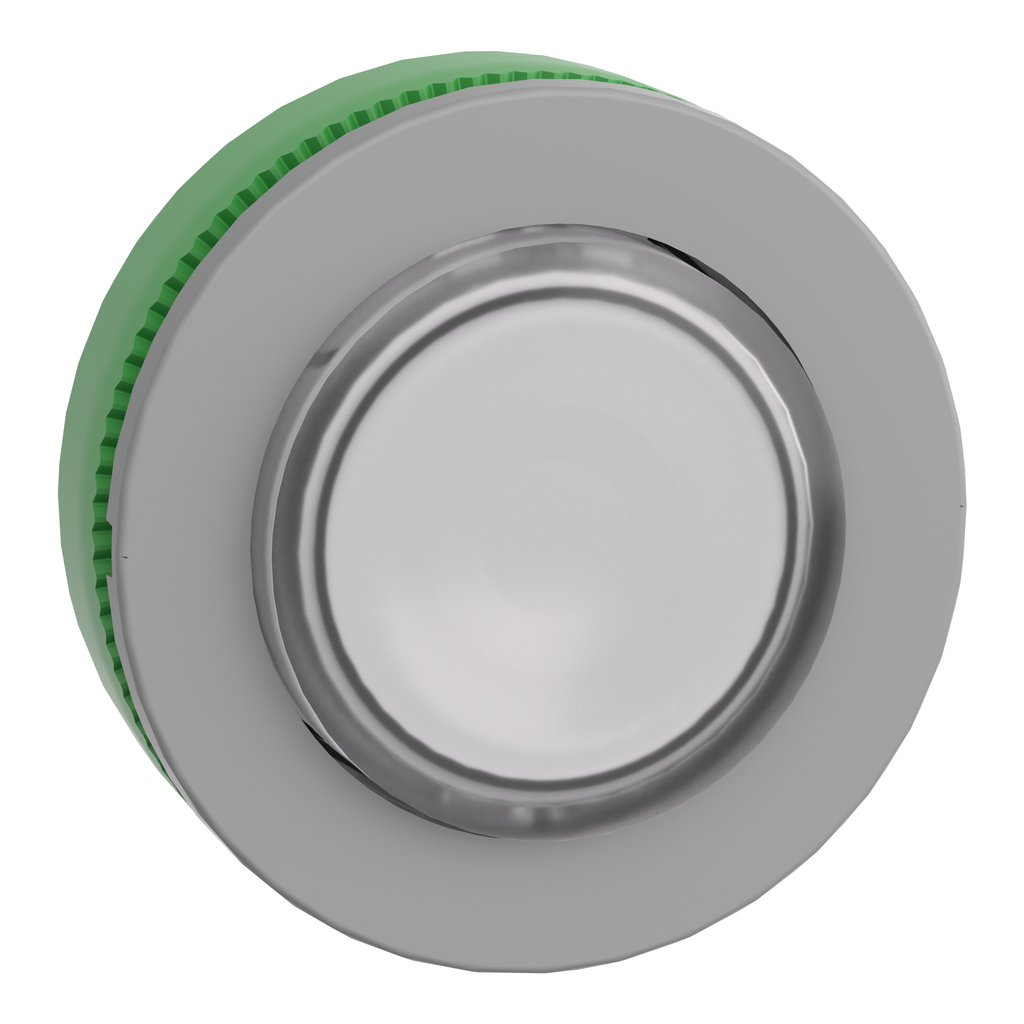

Head for illuminated push button, Harmony XB5, grey bezel, white projecting, 30mm, universal LED, spring return, unmarked
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB5 |
|---|---|
| Mounting Diameter | 30.5 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | built-in-flush |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Operator Profile | white projecting, unmarked |
| Product Compatibility | universal LED |
| Device Short Name | ZB5F |
| Warranty | 18 months |
| Electrical Composition Code |
|
| Net Weight | 0.031 kg |
| Cad Overall Height | 37 mm |
| Device Presentation | basic element |
| Mechanical Durability | 10000000 cycles |
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 32 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Protective Treatment | TH |
