ZB5FV083C0

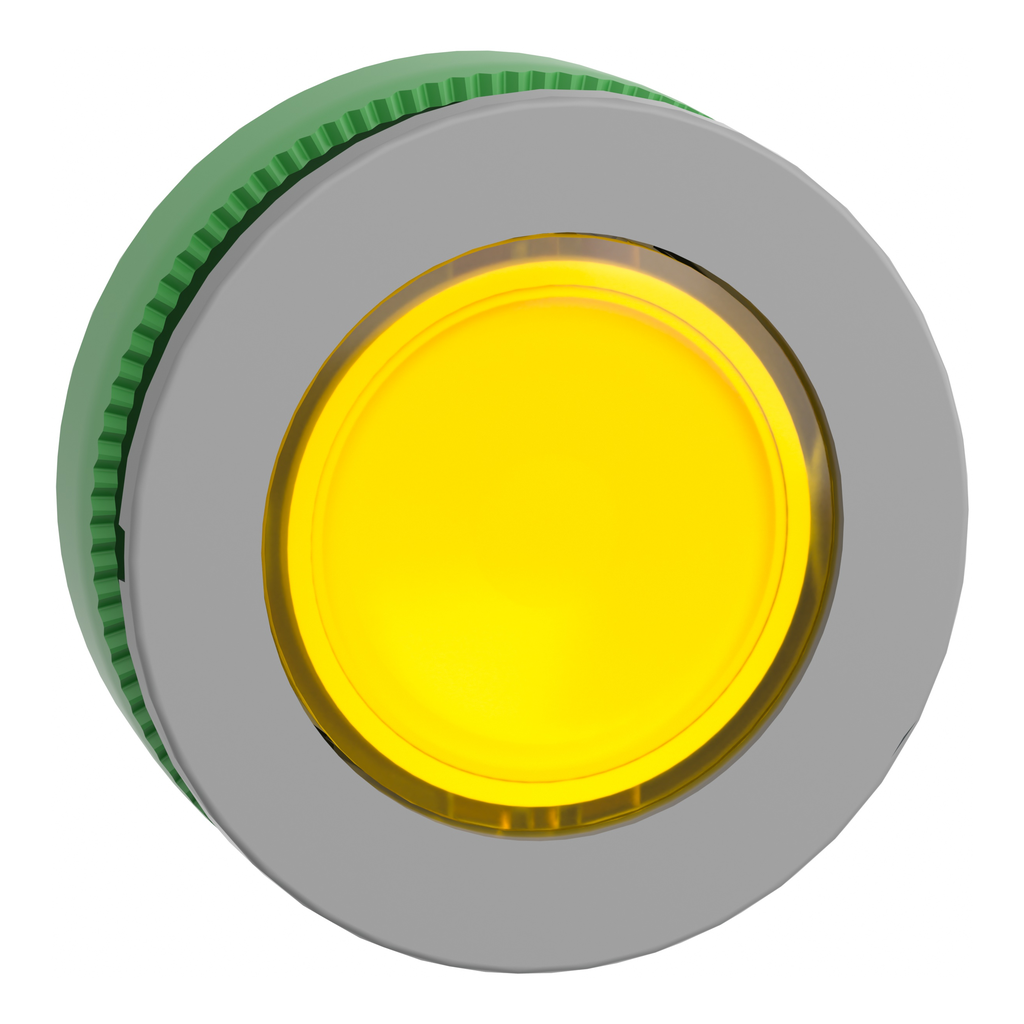

Head for pilot light, Harmony XB5, grey bezel, yellow flush mounted, 30mm, universal LED, plain lens
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | with plain lens |
|---|---|
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 30.5 mm |
| Product Or Component Type | head for pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | yellow |
| Head Type | built-in-flush |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic colour plated grey |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
| Electrical Composition Code |
|
| Net Weight | 0.015 kg |
| Cad Overall Height | 37 mm |
| Device Presentation | basic element |
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 30 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
