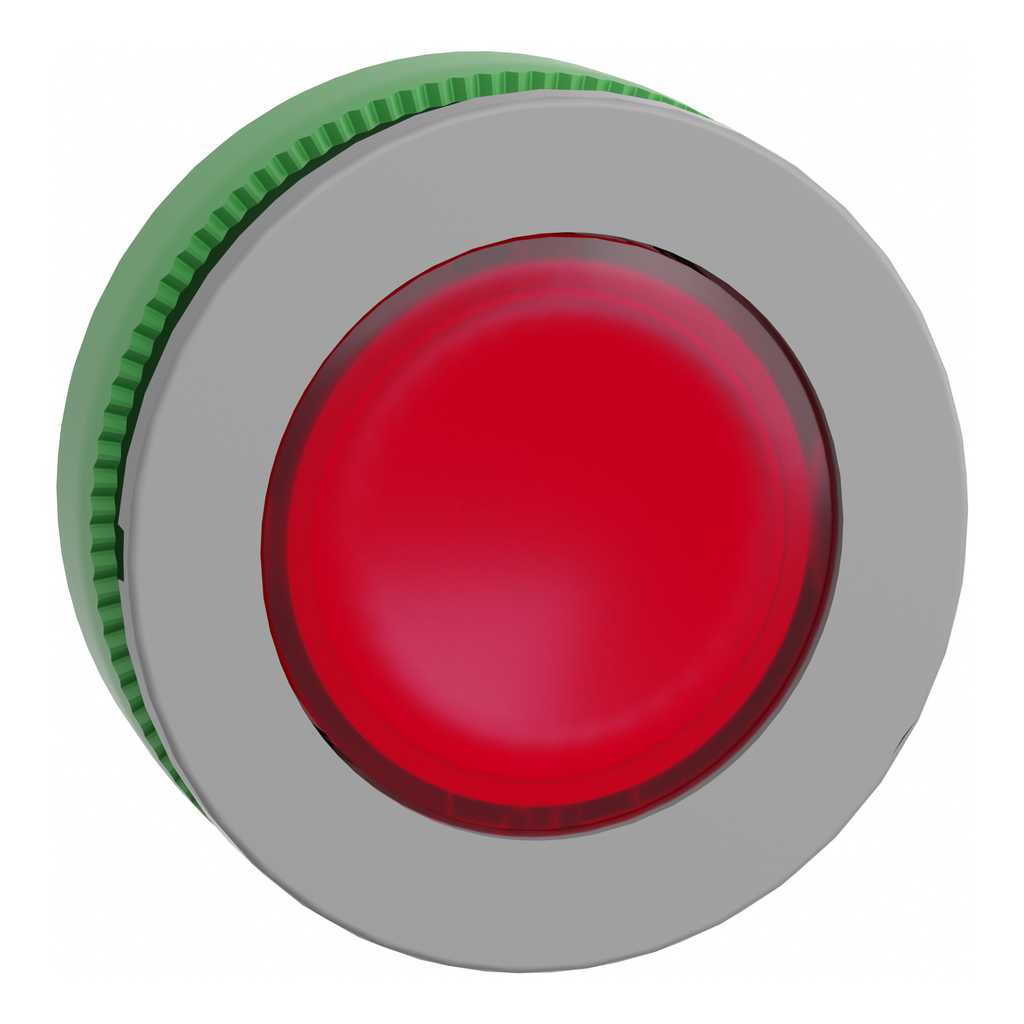

This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | with plain lens |
---|---|
Range Of Product | Harmony XB5 |
Mounting Diameter | 30.5 mm |
Product Or Component Type | head for pilot light |
Shape Of Signaling Unit Head | round |
Cap/Operator Or Lens Colour | red |
Head Type | built-in-flush |
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic colour plated grey |
Product Compatibility | universal LED |
Device Short Name | ZB5 |
Electrical Composition Code |
|
Net Weight | 0.015 kg |
Cad Overall Height | 37 mm |
Device Presentation | basic element |
Cad Overall Width | 37 mm |
Cad Overall Depth | 30 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
