ZB5FD205

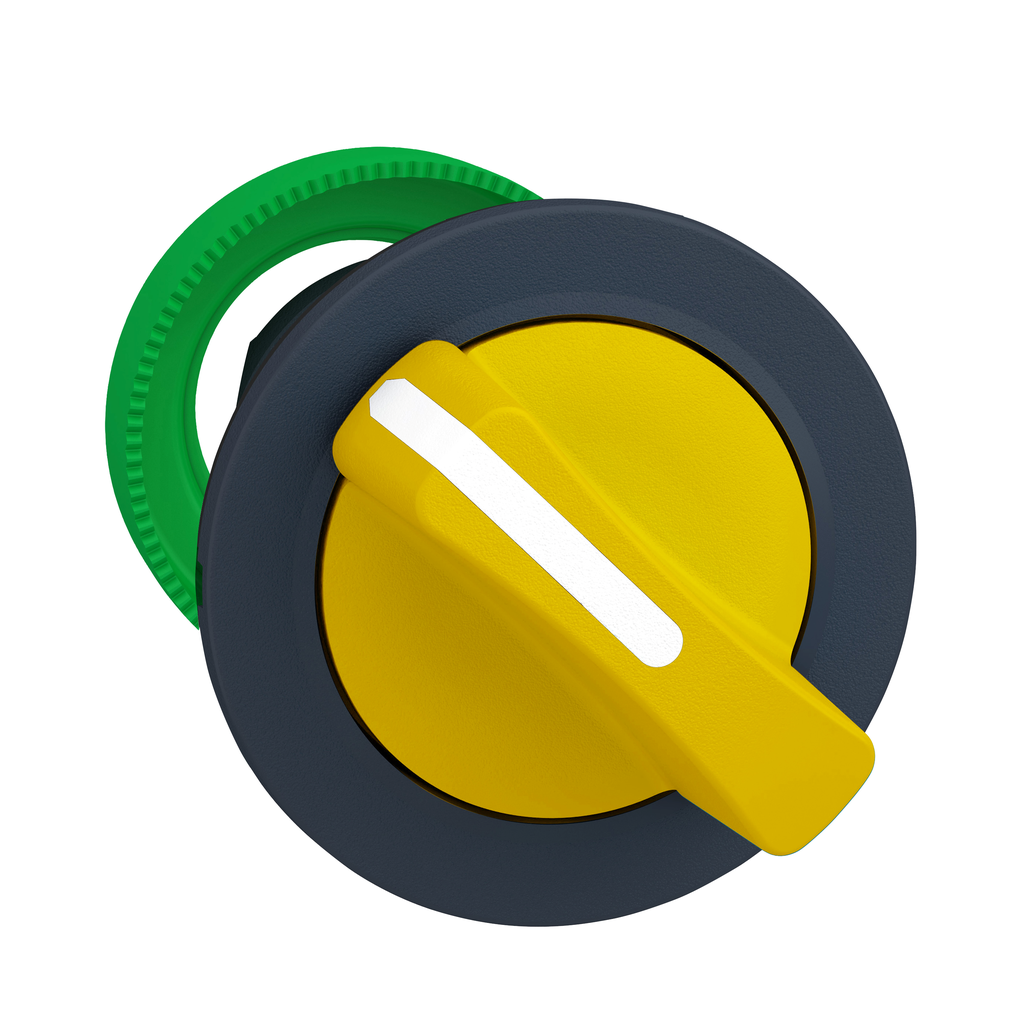

Head for selector switch, Harmony XB5, flush mounted yellow 2 pos stay put
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Sale Per Indivisible Quantity | 1 |
|---|---|
| Range Of Product | Harmony XB5 |
| Bezel Material | dark grey plastic |
| Operator Profile | yellow standard handle |
| Operator Position Information | 2 positions 90° |
| Mounting Diameter | 30.5 mm |
| Type Of Operator | stay put |
| Product Or Component Type | head for selector switch |
| Shape Of Signaling Unit Head | round |
| Device Short Name | ZB5 |
| Head Type | built-in-flush |
| Mechanical Durability | 1000000 cycles |
| Electrical Composition Code |
|
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 46 mm |
| Net Weight | 0.031 kg |
| Cad Overall Height | 37 mm |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
