ZB5FA58

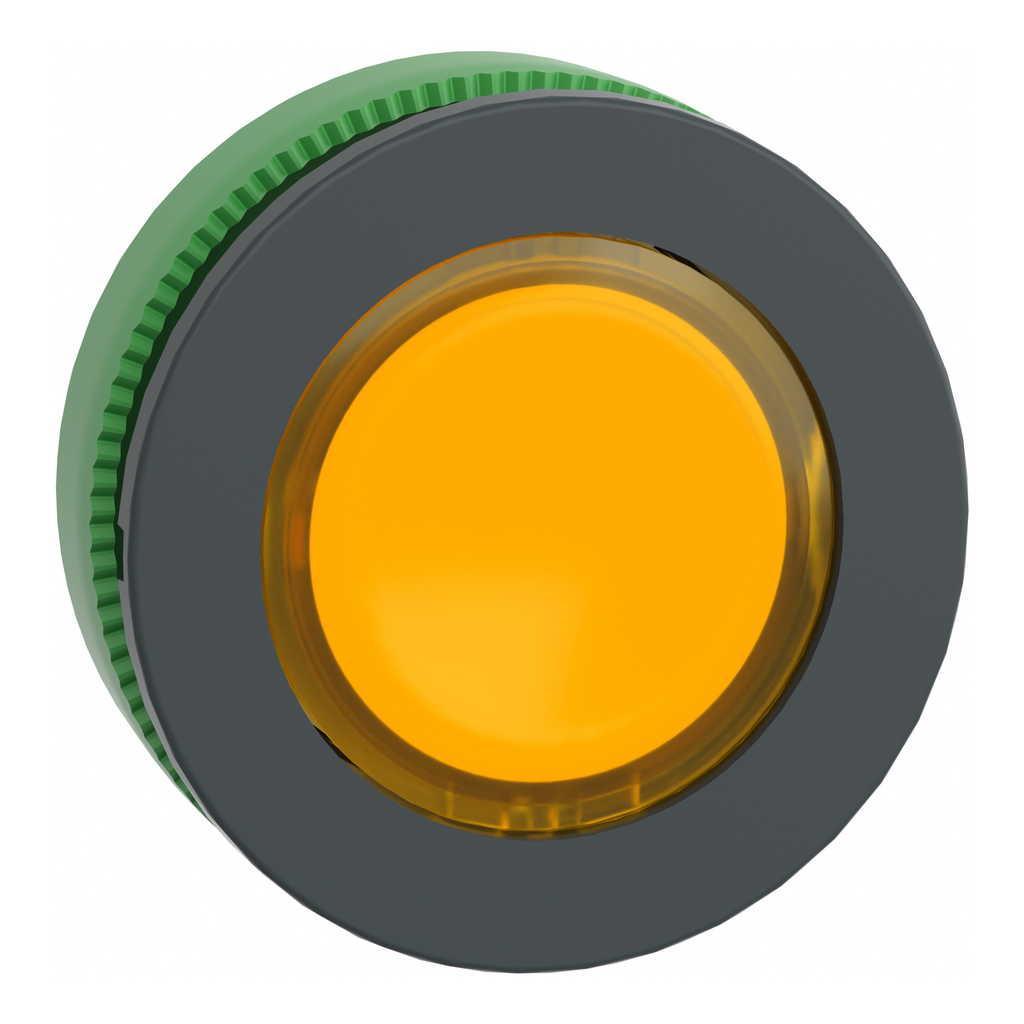

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, yellow flush mounted, 30mm, universal LED,
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | for insertion of legend |
|---|---|
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 30.5 mm |
| Type Of Operator | spring return |
| Product Or Component Type | head for illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | built-in-flush |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Operator Profile | orange flush, unmarked |
| Product Compatibility | universal LED |
| Device Short Name | ZB5 |
| Main Group | illum push-button |
| Electrical Composition Code |
|
| Net Weight | 0.017 kg |
| Cad Overall Height | 37 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Cap/Operator Or Lens Colour | orange |
| Mechanical Durability | 10000000 cycles |
| Marking | unmarked |
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 30 mm |
| Group Of Product | flush push with inser of legend |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 EN 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TC |
