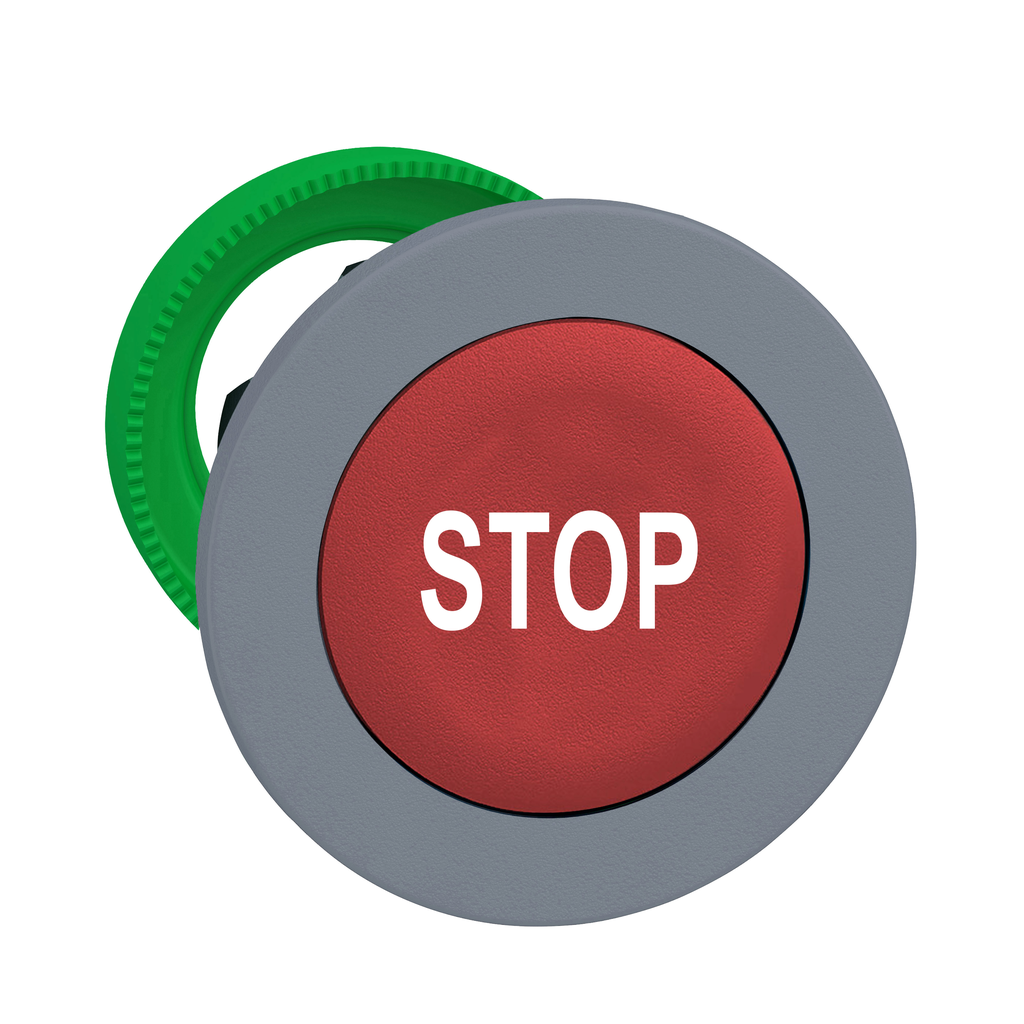

This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Mounting Diameter | 30.5 mm |
Type Of Operator | spring return |
Product Or Component Type | head for non-illuminated push-button |
Shape Of Signaling Unit Head | round |
Head Type | built-in-flush |
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic colour plated grey |
Operator Profile | red flush, STOP white) |
Product Compatibility |
|
Device Short Name | ZB5F |
Warranty | 18 months |
Electrical Composition Code |
|
Net Weight | 0.03 kg |
Cad Overall Height | 37 mm |
Device Presentation | basic element |
Mechanical Durability | 10000000 cycles |
Cad Overall Width | 37 mm |
Cad Overall Depth | 30 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance |
|
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Protective Treatment | TH |
