ZB5AZ902

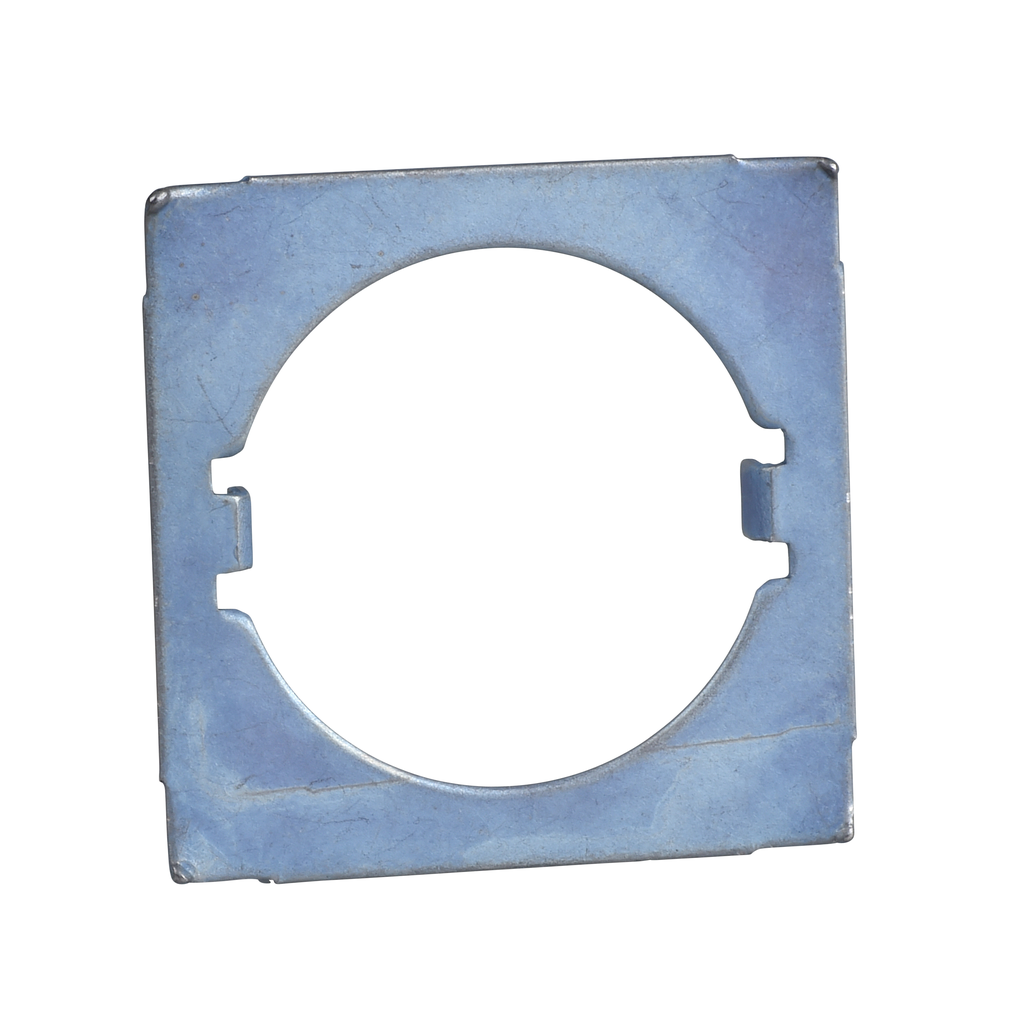

Anti-rotation plate for 22mm head, Harmony XB5, metal
This Harmony XB5, anti-rotation plate enables a more stable installation of Harmony XB5 and XB7 selector switches and emergency stop push-button heads. This mounting accessory is recommended for every installation where perfect horizontal alignment of buttons labels is required.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Destination | Ø 22 mm control and signalling units head |
|---|---|
| Range Of Product | Harmony XB5 |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Product Or Component Type | anti-rotation plate |
| Warranty | 18 months |
| Quantity Per Set | set of 10 |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
