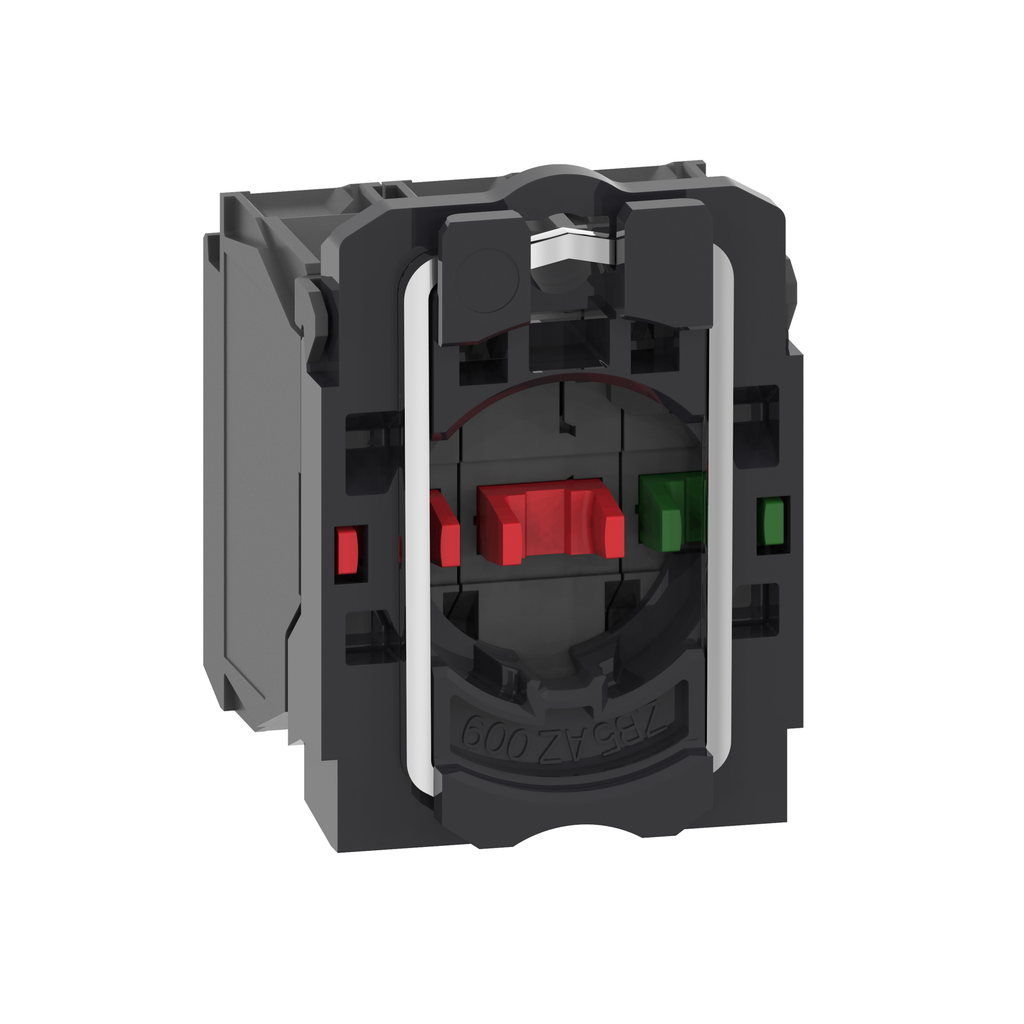

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Contact Block Type | single |
Product Or Component Type | complete body/contact assembly |
Fixing Collar Material | plastic |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 1 NO + 2 NC |
Sale Per Indivisible Quantity | 1 |
Contact Operation | slow-break |
Device Short Name | ZB5 |
Warranty | 18 months |
Contacts Usage | standard contacts |
Terminals Description Iso N°1 |
|
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Net Weight | 0.04 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Cad Overall Height | 42 mm |
Device Presentation | basic sub-assemblies |
Electrical Durability |
|
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
[Ie] Rated Operational Current |
|
Mechanical Durability | 10000000 cycles |
Electrical Reliability |
|
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Cad Overall Width | 30 mm |
Device Composition |
|
Cad Overall Depth | 32 mm |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP20 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Protective Treatment | TH |
