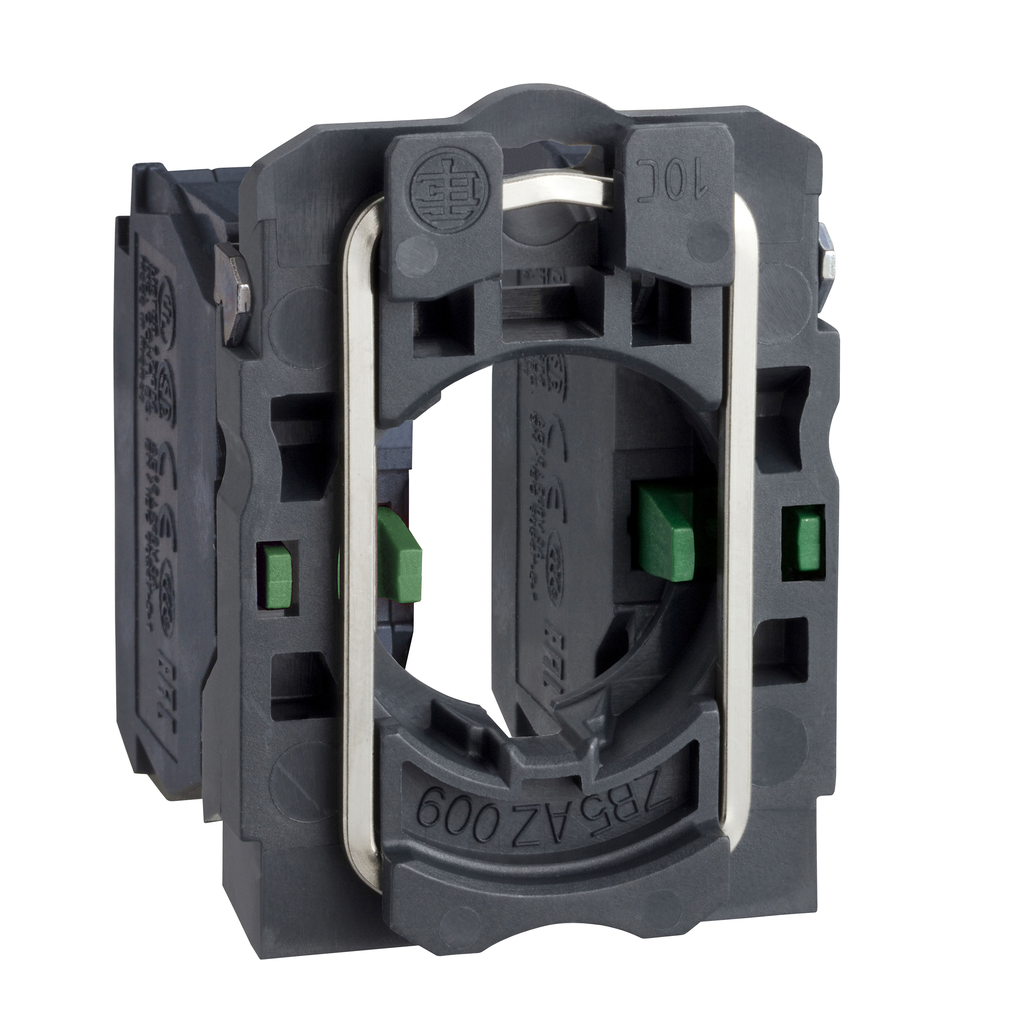

ZB5AZ103 – Single contact block with body fixing collar, Harmony XB5, plastic, screw clamp terminal, 2NO
ZB5AZ103
Single contact block with body fixing collar, Harmony XB5, plastic, screw clamp terminal, 2NO

This Harmony XB5, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. The base unit to start assembling your plastic push-button or switch. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Harmony XB5
Contact Block Type single
Product Or Component Type complete body/contact assembly
Fixing Collar Material plastic
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Contacts Type And Composition 2 NO
Sale Per Indivisible Quantity 1
Contact Operation slow-break
Device Short Name ZB5
Warranty 18 months
Contacts Usage standard contacts
Terminals Description Iso N°1 (13-14)NO
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Travel
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening without
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Cad Overall Height 42 mm
Device Presentation basic sub-assemblies
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Mechanical Durability 10000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4
  • λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m EN 60947-1
Cad Overall Width 30 mm
Device Composition
  • fixing collar
  • body
Cad Overall Depth 32 mm
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1710010EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1710010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • GL
  • LROS (Lloyds register of shipping)
  • BV
  • UL
  • DNV
  • CSA
Ambient Air Temperature For Operation -40-70 °C
Standards
  • UL 508
  • EN/IEC 60947-1
  • CSA C22.2 No 14
  • EN/IEC 60947-5-4
  • EN/IEC 60947-5-1
  • JIS C8201-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection IP20 IEC 60529
Ambient Air Temperature For Storage -40-70 °C
Protective Treatment TH
