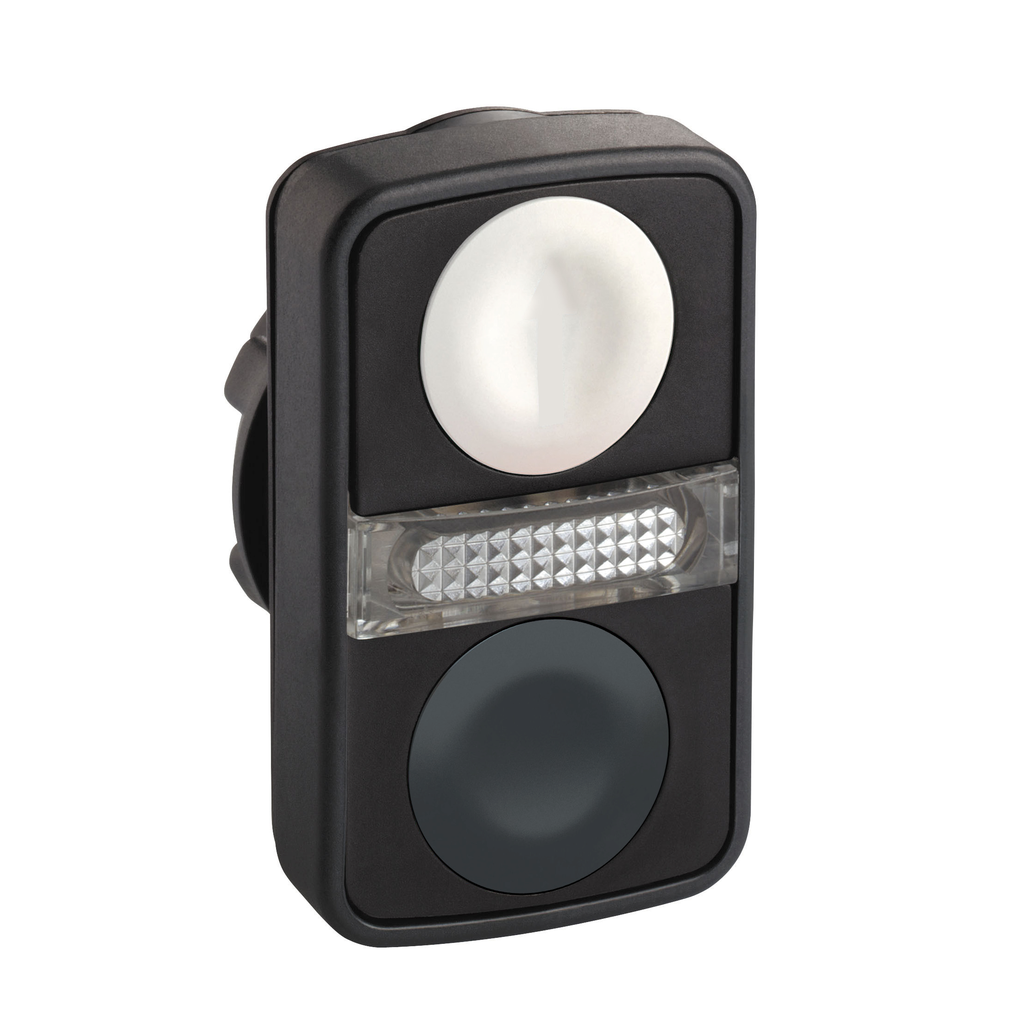

This double head has 1 white, 1 black button and 1 central white pilot light, it provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to its pilot light, clear colors and by touch due to flush elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Operators Description | white unmarked - black unmarked |
Product Or Component Type | head for illuminated double-headed push-button |
Shape Of Signaling Unit Head | rectangular |
Operator Profile | 2 flush push-buttons - 1 central pilot light |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | dark grey plastic |
Product Compatibility | integral LED |
Device Short Name | ZB5 |
Warranty | 18 months |
Net Weight | 0.023 kg |
Cad Overall Height | 50 mm |
Device Presentation | basic sub-assemblies |
Operator Profile |
|
Mechanical Durability | 1000000 cycles |
Station Name | XALD 1 cut-out |
Cad Overall Width | 30 mm |
Cad Overall Depth | 30 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK05 IEC 50102 |
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 60536 |
