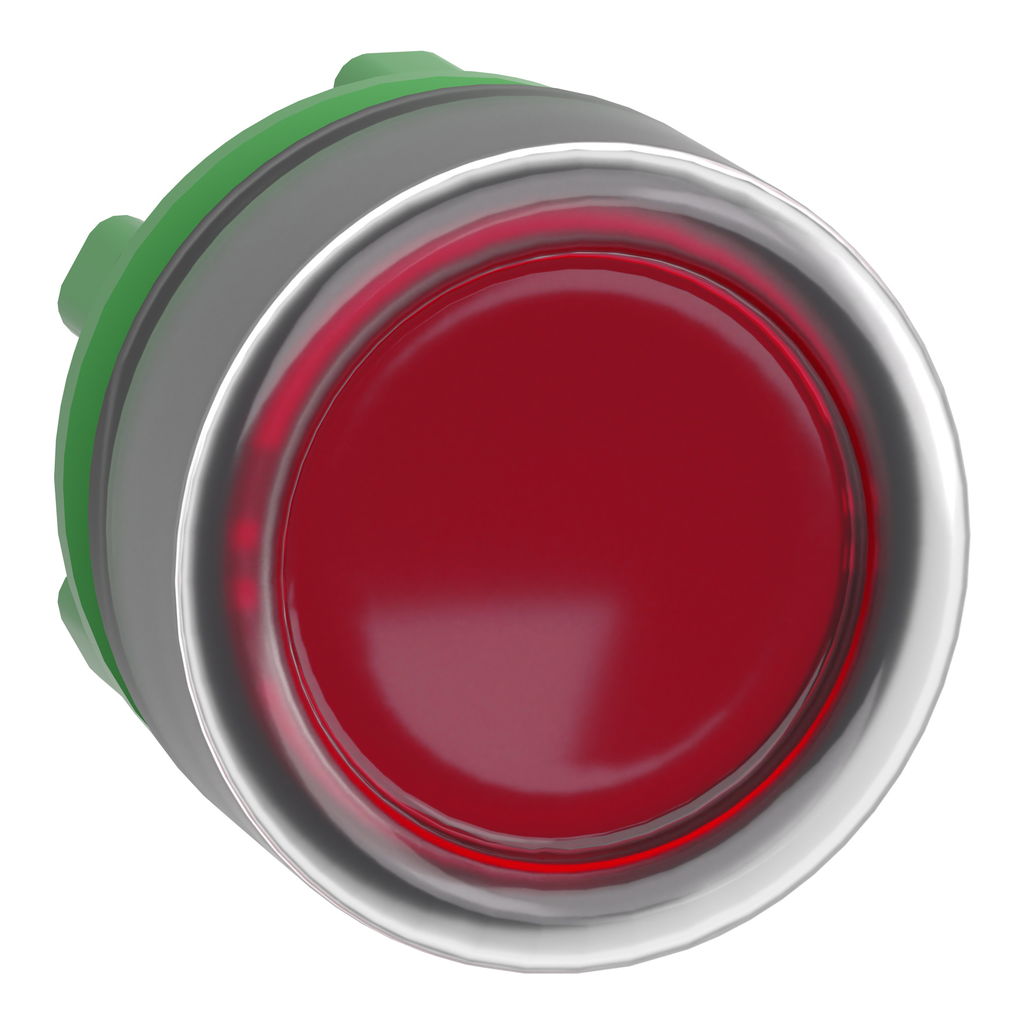

This red flush button head with clear boot provides an ergonomic interface for controlling your machines. It provides also a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | clear boot |
---|---|
Range Of Product | Harmony XB5 |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | head for illuminated push-button |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | dark grey plastic |
Operator Profile | red flush, unmarked |
Product Compatibility | universal LED |
Device Short Name | ZB5 |
Warranty | 18 months |
Main Group | illum push-button |
Electrical Composition Code |
|
Net Weight | 0.019 kg |
Cad Overall Height | 30 mm |
Device Presentation | basic sub-assemblies |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Cap/Operator Or Lens Colour | red |
Mechanical Durability | 10000000 cycles |
Marking | unmarked |
Station Name |
|
Cad Overall Width | 30 mm |
Cad Overall Depth | 37 mm |
Group Of Product | flush push integral LED |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK05 EN 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TC |
