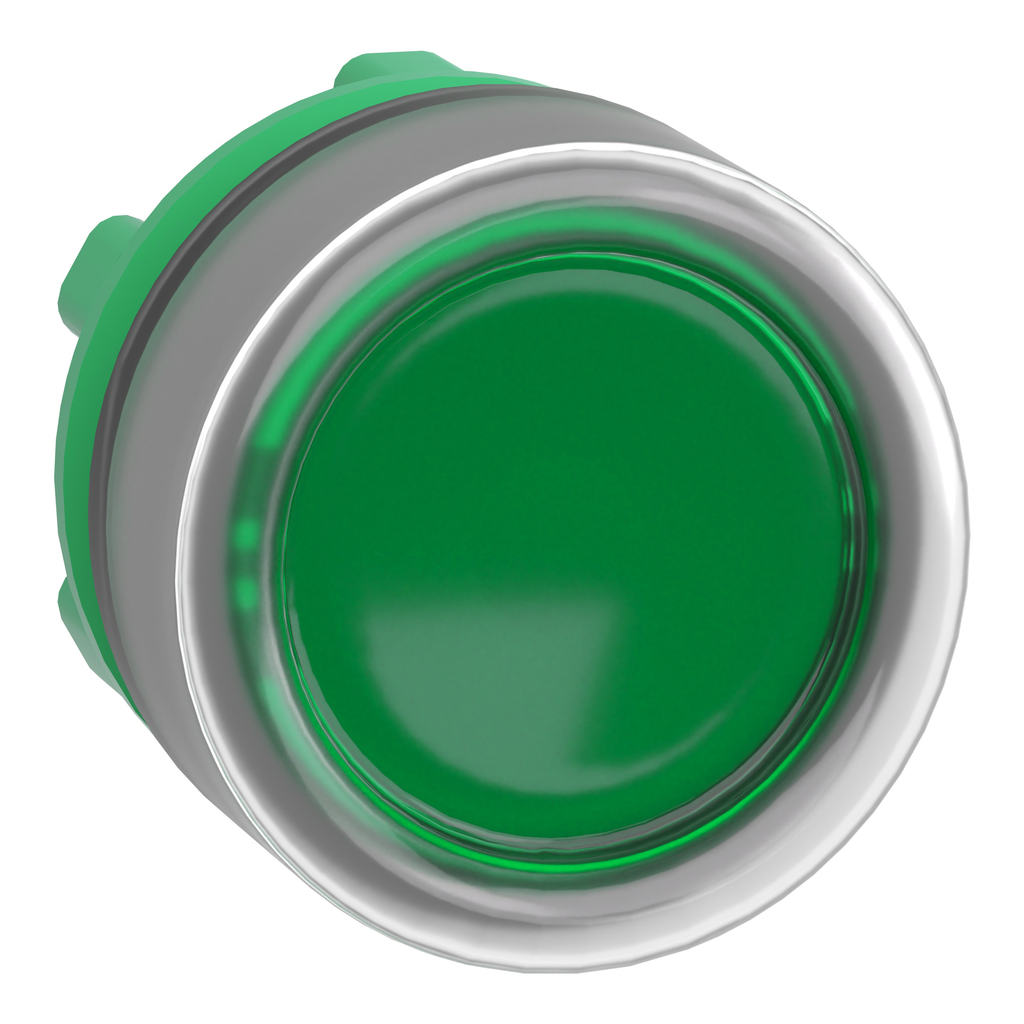

This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | clear boot |
---|---|
Range Of Product | Harmony XB5 |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | head for illuminated push-button |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic colour plated grey |
Operator Profile | green flush, unmarked |
Product Compatibility | universal LED |
Device Short Name | ZB5 |
Main Group | illum push-button |
Electrical Composition Code |
|
Net Weight | 0.019 kg |
Cad Overall Height | 30 mm |
Device Presentation | basic sub-assemblies |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Cap/Operator Or Lens Colour | green |
Mechanical Durability | 10000000 cycles |
Marking | unmarked |
Station Name |
|
Cad Overall Width | 30 mm |
Cad Overall Depth | 37 mm |
Group Of Product | flush push integral LED |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK05 EN 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TC |
