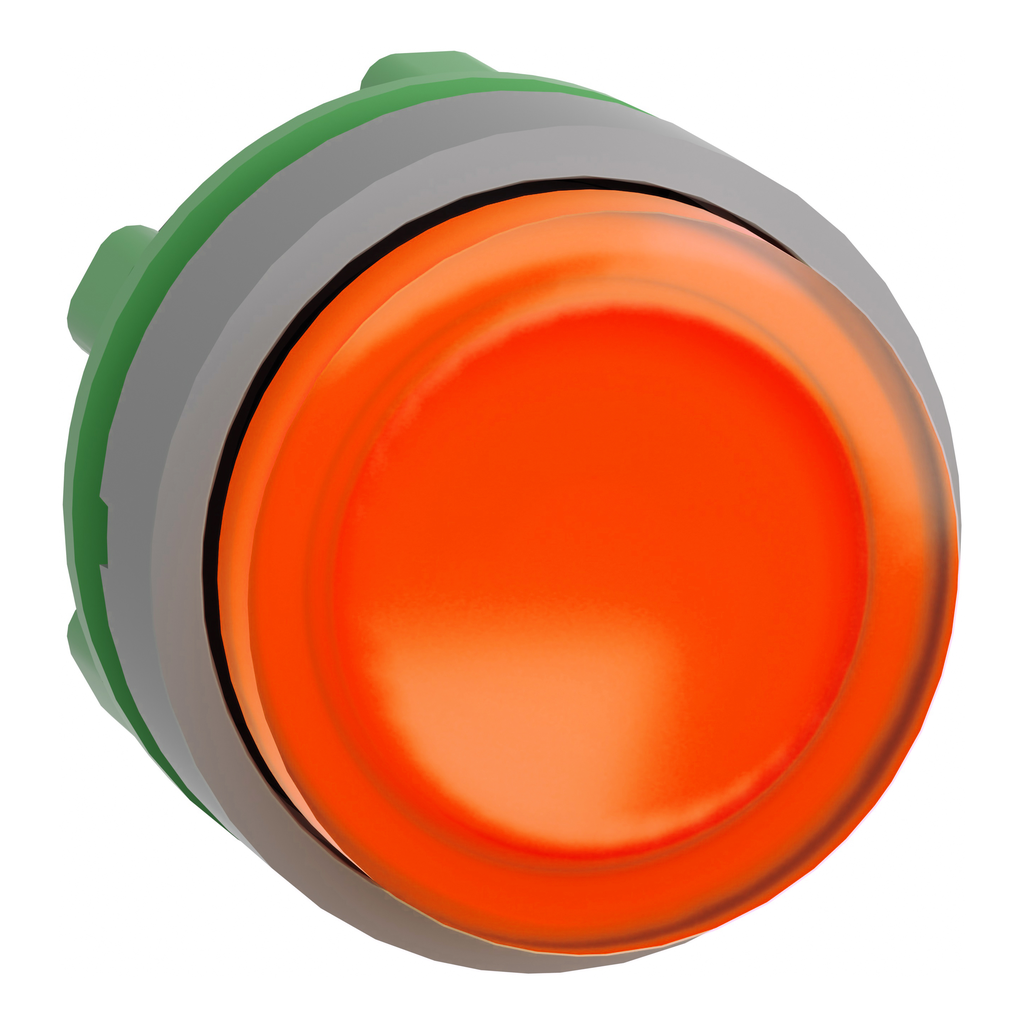

This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | with plain lens |
---|---|
Range Of Product | Harmony XB5 |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | head for illuminated push-button |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic colour plated grey |
Operator Profile | orange projecting, unmarked |
Product Compatibility | universal LED |
Device Short Name | ZB5 |
Main Group | illum push-button |
Electrical Composition Code |
|
Net Weight | 0.018 kg |
Cad Overall Height | 29 mm |
Device Presentation | basic sub-assemblies |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Cap/Operator Or Lens Colour | orange |
Mechanical Durability | 10000000 cycles |
Marking | unmarked |
Station Name |
|
Cad Overall Width | 29 mm |
Cad Overall Depth | 33 mm |
Group Of Product | proj push integral LED |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK05 EN 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP66 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TC |
