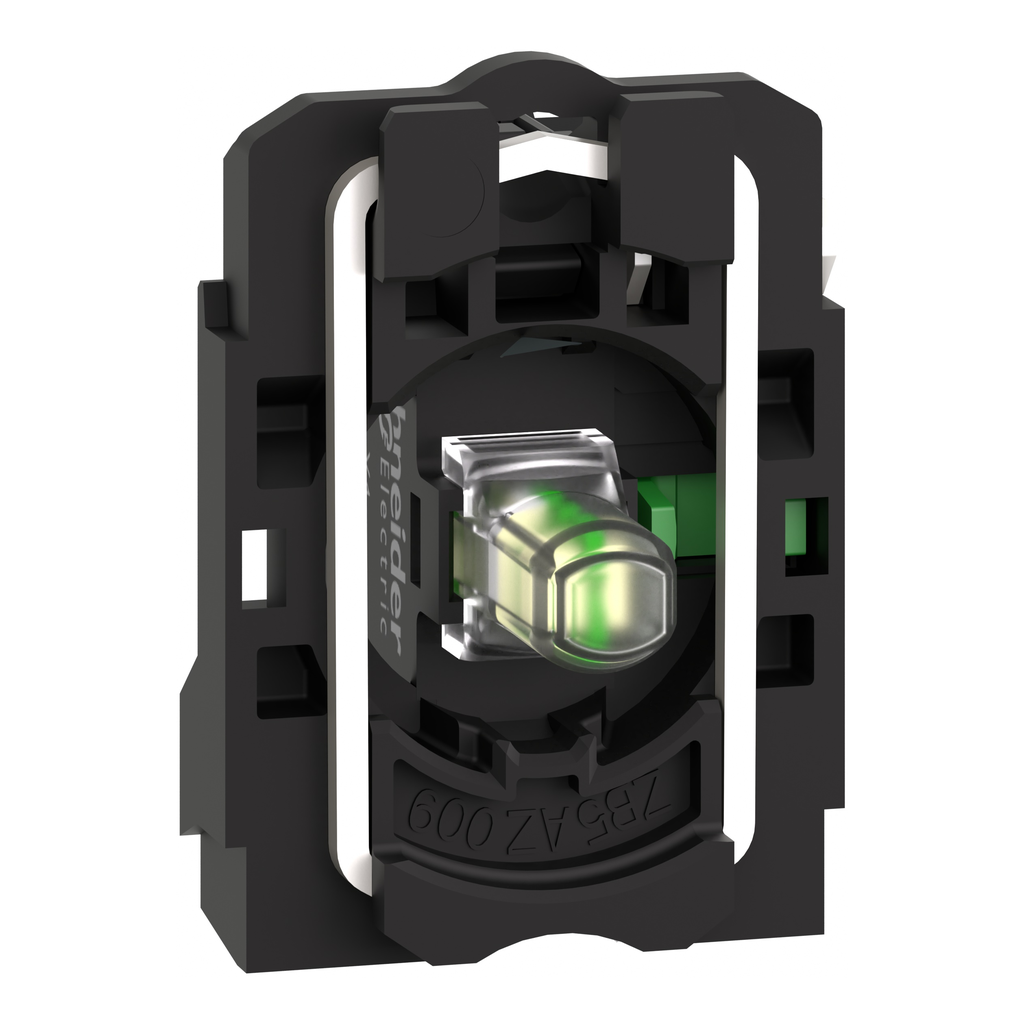

This Harmony XB5, light block with body/fixing collar operates with a universal LED. It has 1 x NO contact and a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Light Source | universal LED |
Light Block Supply | direct |
Product Or Component Type | complete body/contact assembly and light block |
Fixing Collar Material | plastic |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 1 NO |
Sale Per Indivisible Quantity | 1 |
Contact Operation | slow-break |
Light Source Colour | white |
Device Short Name | ZB5 |
Bulb Base | integral LED |
Warranty | 18 months |
Contacts Usage | standard |
Terminals Description Iso N°1 | (13-14)NO |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Force | 2.3 N NO changing electrical state |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | without |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Net Weight | 0.032 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Cad Overall Height | 42 mm |
Current Consumption | 14 mA |
Device Presentation | basic sub-assemblies |
Electrical Durability |
|
Service Life | 100000 h at rated voltage and 25 °C |
Surge Withstand | 1 kV IEC 61000-4-5 |
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
Signalling Type | steady |
Operating Torque | 0.05 N.m NO changing electrical state |
[Ie] Rated Operational Current |
|
Supply Voltage Limits | 195-264 V AC |
Mechanical Durability | 5000000 cycles |
Electrical Reliability |
|
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Cad Overall Width | 30 mm |
Cad Overall Depth | 32 mm |
Shape Of Screw Head |
|
[Us] Rated Supply Voltage | 230...240 V AC 50/60 Hz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -40-70 °C |
Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ambient Air Temperature For Storage | -40-70 °C |
Resistance To Electrostatic Discharge |
|
Electrical Shock Protection Class | class II IEC 60536 |
Protective Treatment | TH |
Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
Electromagnetic Emission | class B IEC 55011 |
