ZB5AV6

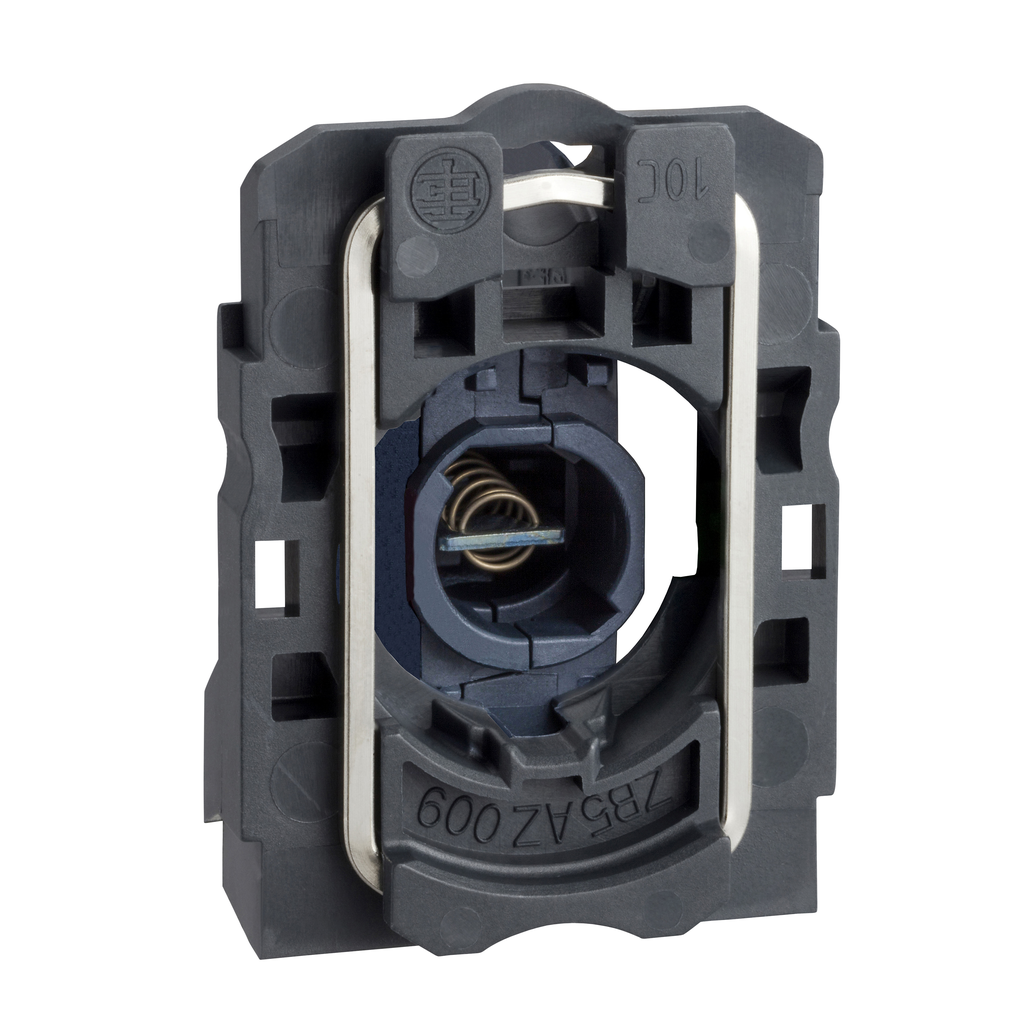

Light block with body fixing collar, Harmony XB5, plastic, for BA9s bulb, lt 250V
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB5 |
|---|---|
| Light Source | bulb not included |
| Light Block Supply | direct <2.4 W |
| Product Or Component Type | complete body/light block assembly |
| Fixing Collar Material | plastic |
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 1 |
| Device Short Name | ZB5 |
| Bulb Base | BA 9s |
| Warranty | 18 months |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Net Weight | 0.022 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Cad Overall Height | 42 mm |
| Device Presentation | basic sub-assemblies |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Signalling Type | steady |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 32 mm |
| Shape Of Screw Head |
|
| [Us] Rated Supply Voltage | <= 250 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
