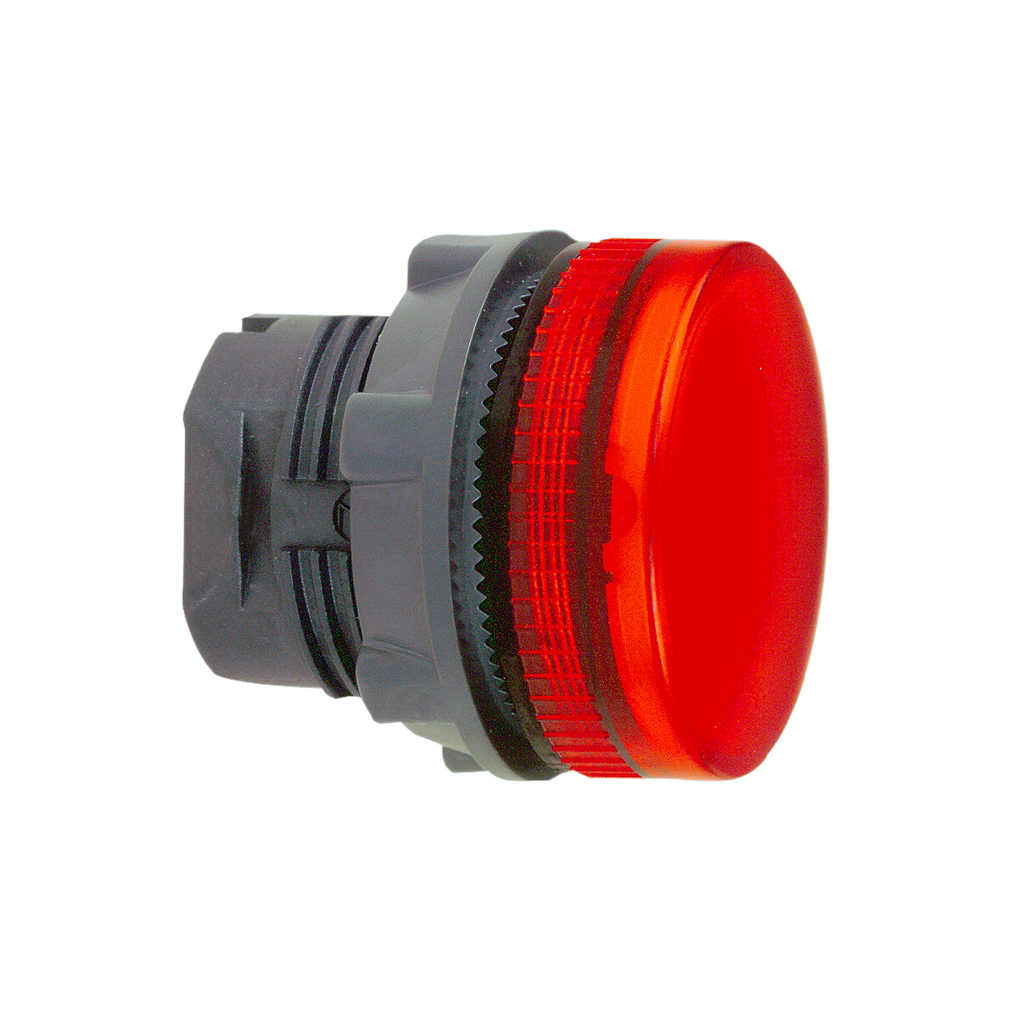

This Harmony XB5 grooved lens red head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | with grooved lens |
---|---|
Range Of Product | Harmony XB5 |
Mounting Diameter | 22 mm |
Product Or Component Type | head for pilot light |
Shape Of Signaling Unit Head | round |
Cap/Operator Or Lens Colour | red |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | dark grey plastic |
Product Compatibility | BA 9s |
Device Short Name | ZB5 |
Warranty | 18 months |
Electrical Composition Code |
|
Net Weight | 0.017 kg |
Cad Overall Height | 29 mm |
Device Presentation | basic element |
Station Name |
|
Cad Overall Width | 29 mm |
Cad Overall Depth | 31 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ik Degree Of Protection | IK05 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Ambient Air Temperature For Storage | -40-70 °C |
Environmental Characteristic | high ambient lighting environment |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
