ZB5AT8643M

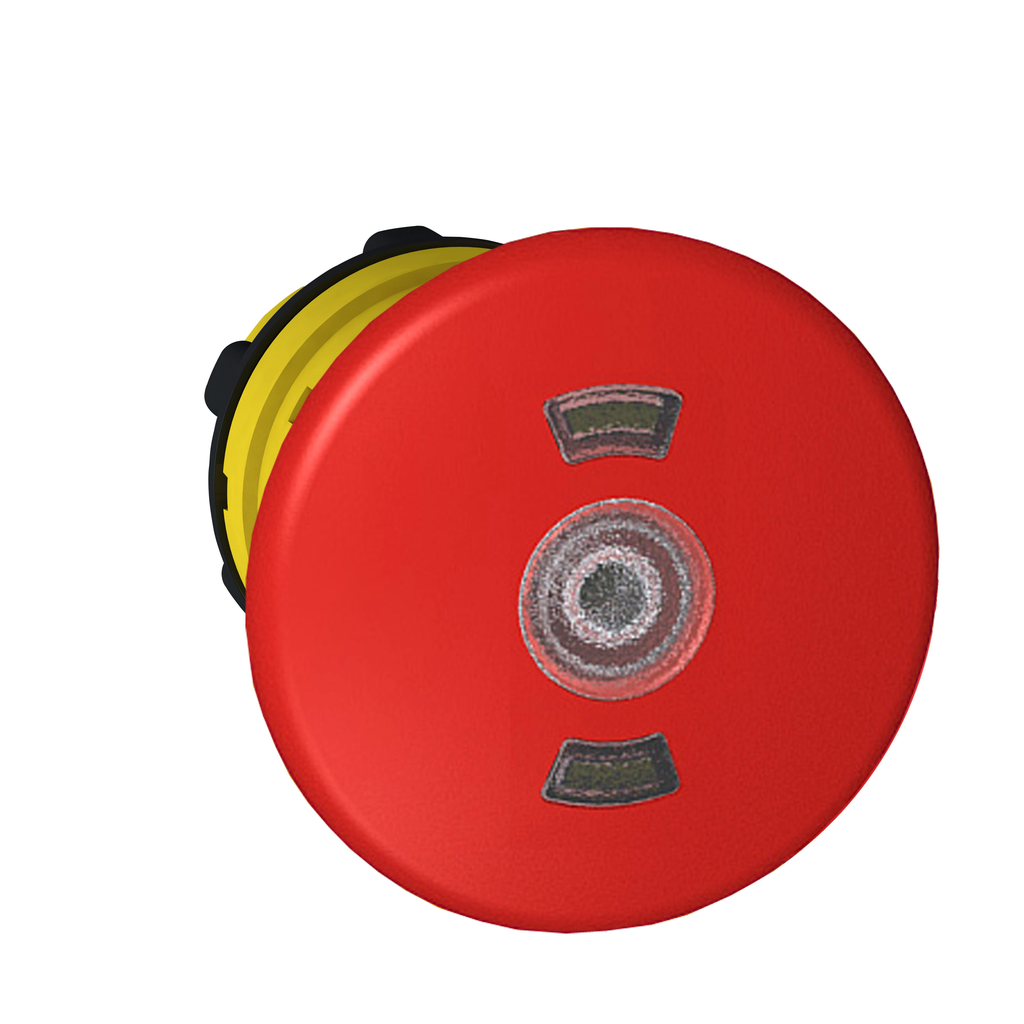

Illuminated emergency stop switching off head, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching push pull, with state indicator
This Harmony XB5 emergency stop / shutdown 40mm mushroom red button head operates with a latched push-pull mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Reset | push-pull |
|---|---|
| Range Of Product |
|
| Mounting Diameter | 22 mm |
| Type Of Operator | trigger action and mechanical latching with mechanical state indicator |
| Product Or Component Type | head for illuminated emergency stop push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Device Presentation | basic element |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Device Short Name | ZB5 |
| Warranty | 18 months |
| Electrical Composition Code |
|
| Net Weight | 0.034 kg |
| Cad Overall Height | 40 mm |
| Mechanical Durability | 500000 cycles |
| Compatibility Code | ZB5 |
| Station Name |
|
| Product Compatibility | integral LED |
| Cad Overall Width | 40 mm |
| Cad Overall Depth | 59 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK05 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP54 IEC 60529 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
