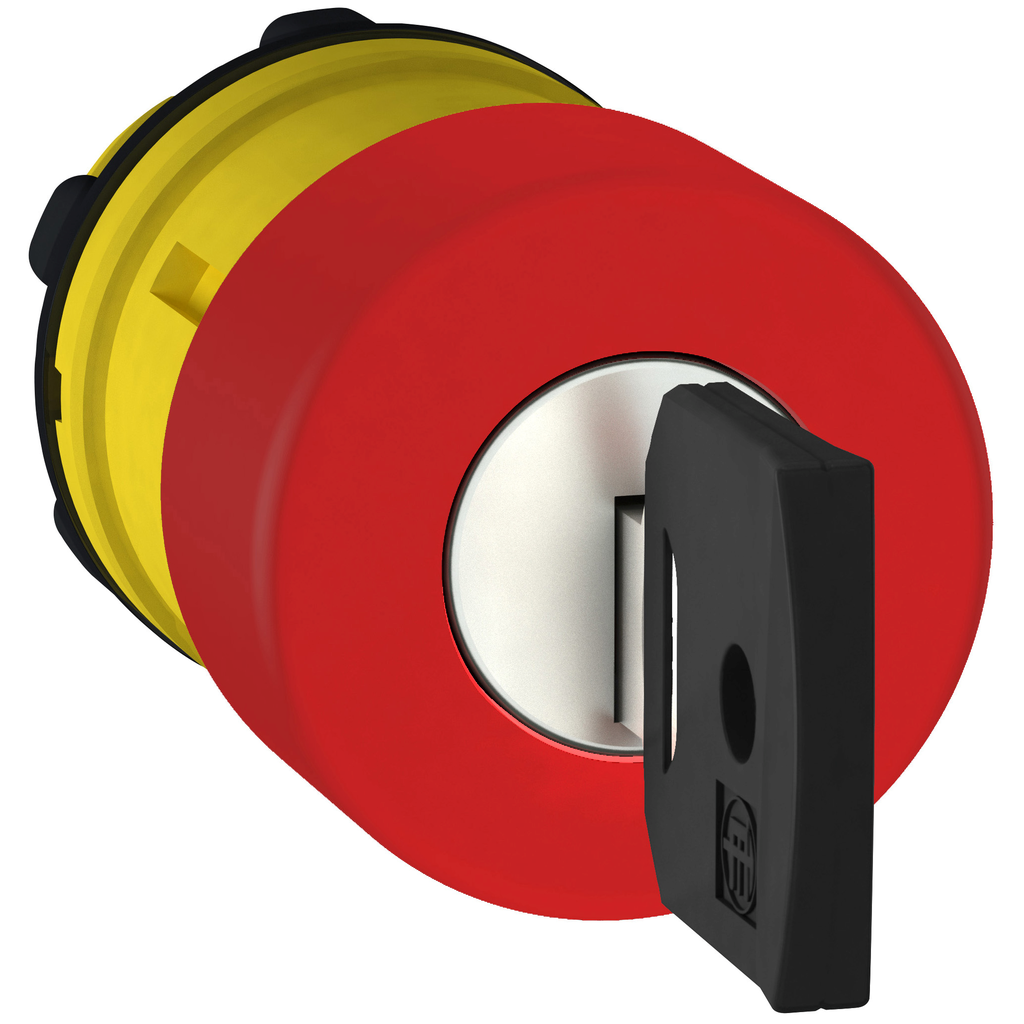

This Harmony XB5 emergency stop / shutdown 30mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueProduct Destination | emergency stop push-button |
---|---|
Reset | key release |
Range Of Product | Harmony XB5 |
Mounting Diameter | 22 mm |
Type Of Operator | trigger action and mechanical latching |
Product Or Component Type | head for emergency stop push-button |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Device Presentation | basic element |
Key Withdrawal Position | center |
Sale Per Indivisible Quantity | 1 |
Bezel Material | dark grey plastic |
Operator Profile | red mushroom Ø 30 mm, unmarked |
Device Short Name | ZB5 |
Type Of Keylock | key 455 |
Warranty | 18 months |
Electrical Composition Code |
|
Net Weight | 0.068 kg |
Cad Overall Height | 30 mm |
Mechanical Durability | 300000 cycles |
Compatibility Code | ZB5 |
Station Name |
|
Cad Overall Width | 30 mm |
Cad Overall Depth | 79 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
