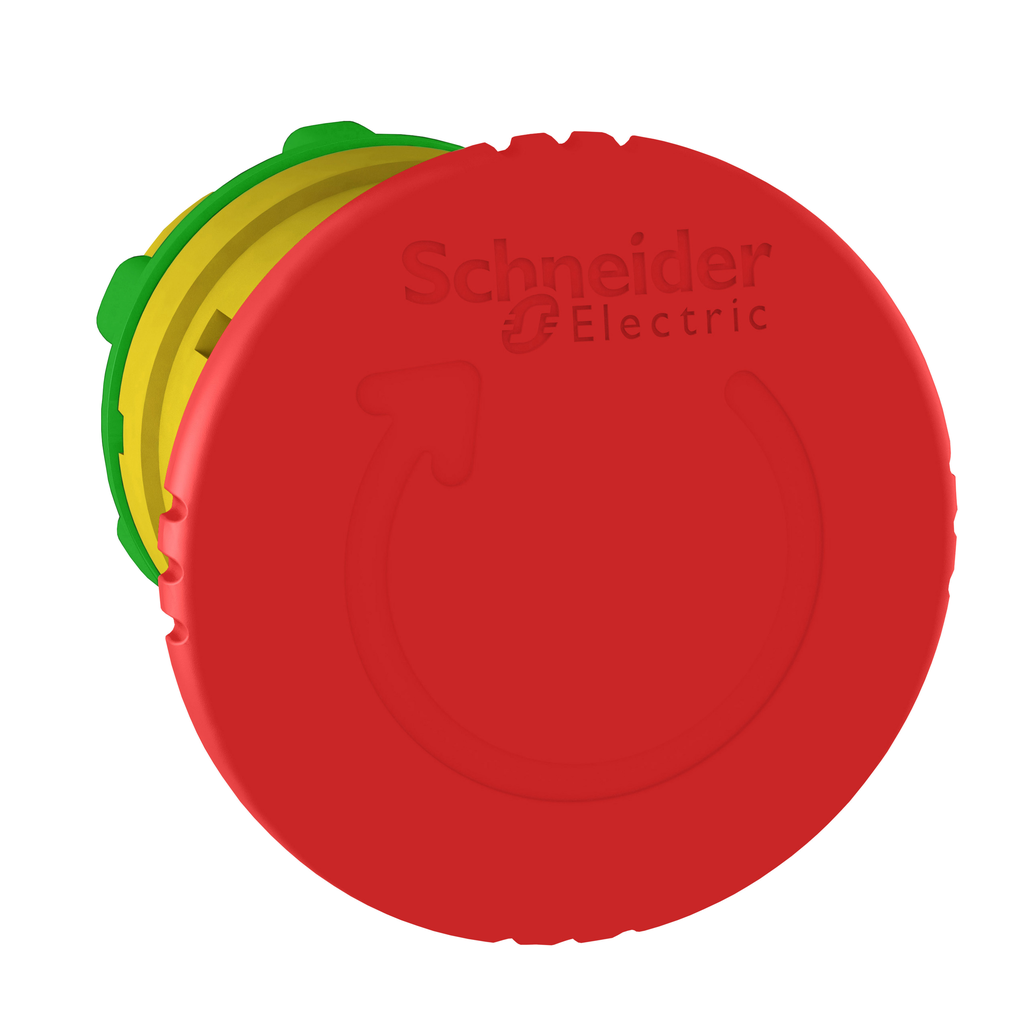

Product Destination | emergency stop push-button |
---|---|
Reset | turn to release |
Range Of Product | Harmony XB5 |
Mounting Diameter | 22 mm |
Type Of Operator | trigger action and mechanical latching |
Product Or Component Type | head for emergency stop push-button |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 10 |
Bezel Material | dark grey plastic |
Operator Profile | red mushroom Ø 40 mm, unmarked |
Device Short Name | ZB5 |
Warranty | 18 months |
Electrical Composition Code |
|
Net Weight | 0.046 kg |
Cad Overall Height | 40 mm |
Mechanical Durability | 300000 cycles |
Compatibility Code | ZB5 |
Station Name |
|
Cad Overall Width | 40 mm |
Cad Overall Depth | 57 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
