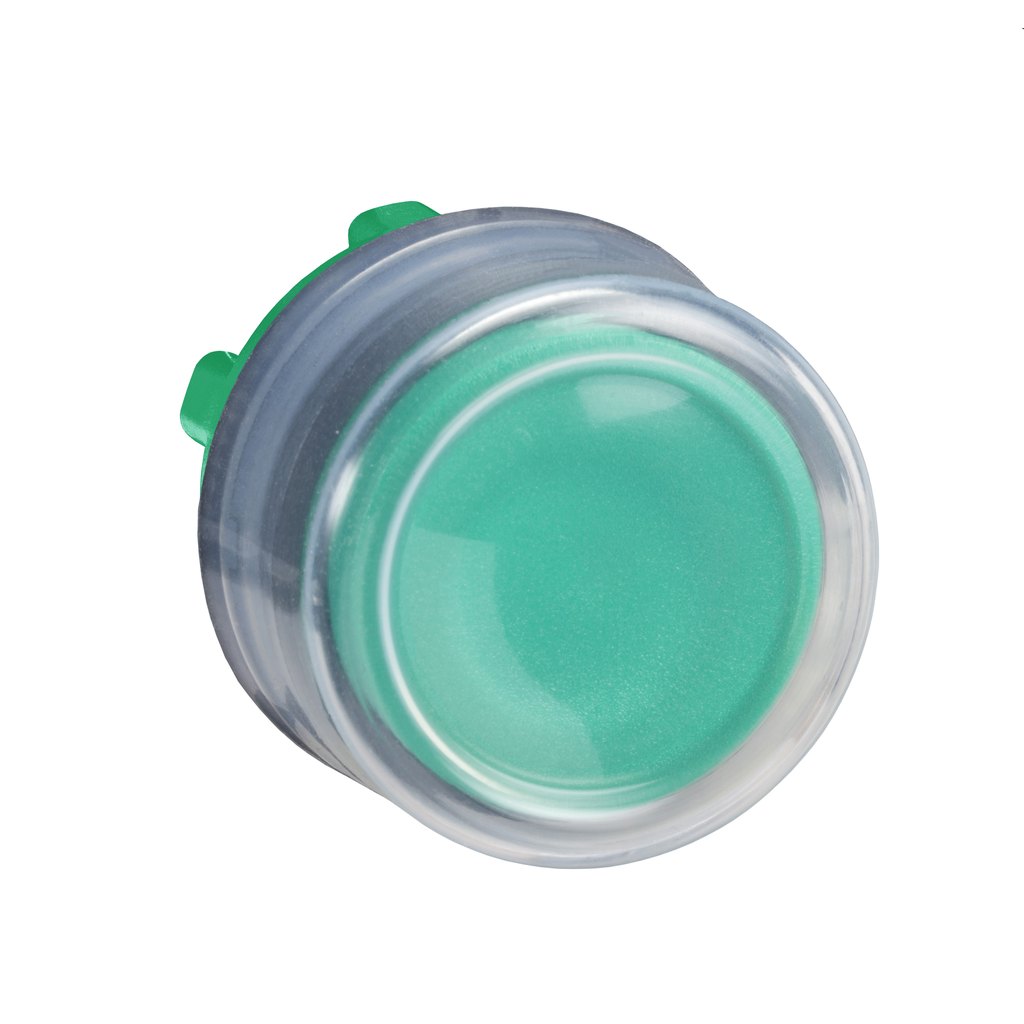

This clear silicone booted green button head provides a simple solution to comply with hygiene requirement. This makes it ideal in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSale Per Indivisible Quantity | 1 |
---|---|
Operator Additional Information | clear boot |
Range Of Product | Harmony XB5 |
Bezel Material | dark grey plastic |
Operator Profile | green flush, unmarked |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | head for non-illuminated push-button |
Shape Of Signaling Unit Head | round |
Product Compatibility | not compatible with legend holder |
Device Short Name | ZB5 |
Head Type | standard |
Warranty | 18 months |
Mechanical Durability | 10000000 cycles |
Cad Overall Width | 30 mm |
Cad Overall Depth | 37 mm |
Cad Overall Height | 30 mm |
Device Presentation | basic element |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Protective Treatment | TH |
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
