ZB5AFDC

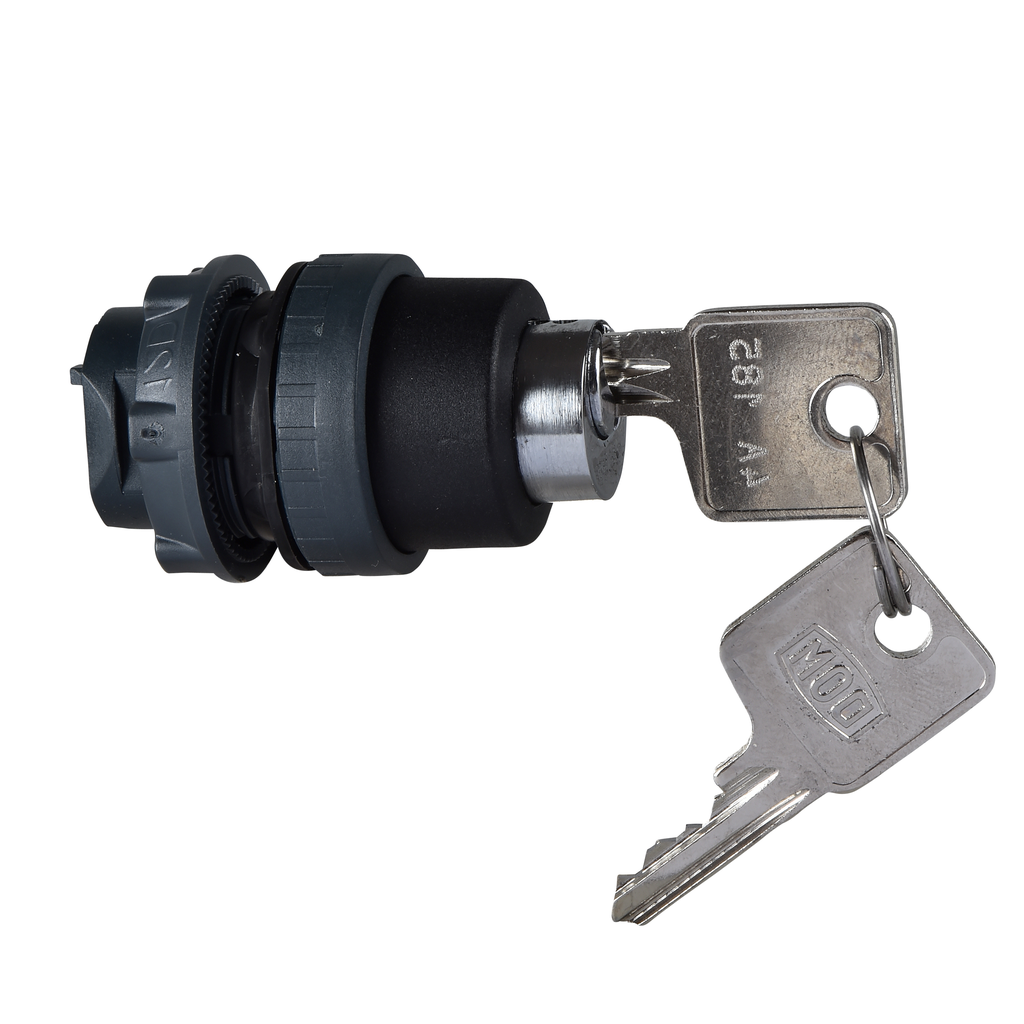

Key switch selector head, Harmony XB5, plastic, black, 22mm, key 4A185, 3 positions, push turn to release
This Harmony ZB5AFDC is a key-operated push button head push-turn release, key operated Dom 4A185. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB5 |
|---|---|
| Mounting Diameter | 22 mm |
| Type Of Operator | turn to release |
| Product Or Component Type | head for non-illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Key Withdrawal Position | rest position |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Operator Profile | key switch |
| Locking Position | rest position |
| Device Short Name | ZB5 |
| Type Of Keylock | Dom 4A185 |
| Warranty | 18 months |
| Electrical Composition Code |
|
| Net Weight | 0.05 kg |
| Cad Overall Height | 29 mm |
| Mechanical Durability | 500000 cycles |
| Station Name |
|
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 62 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
