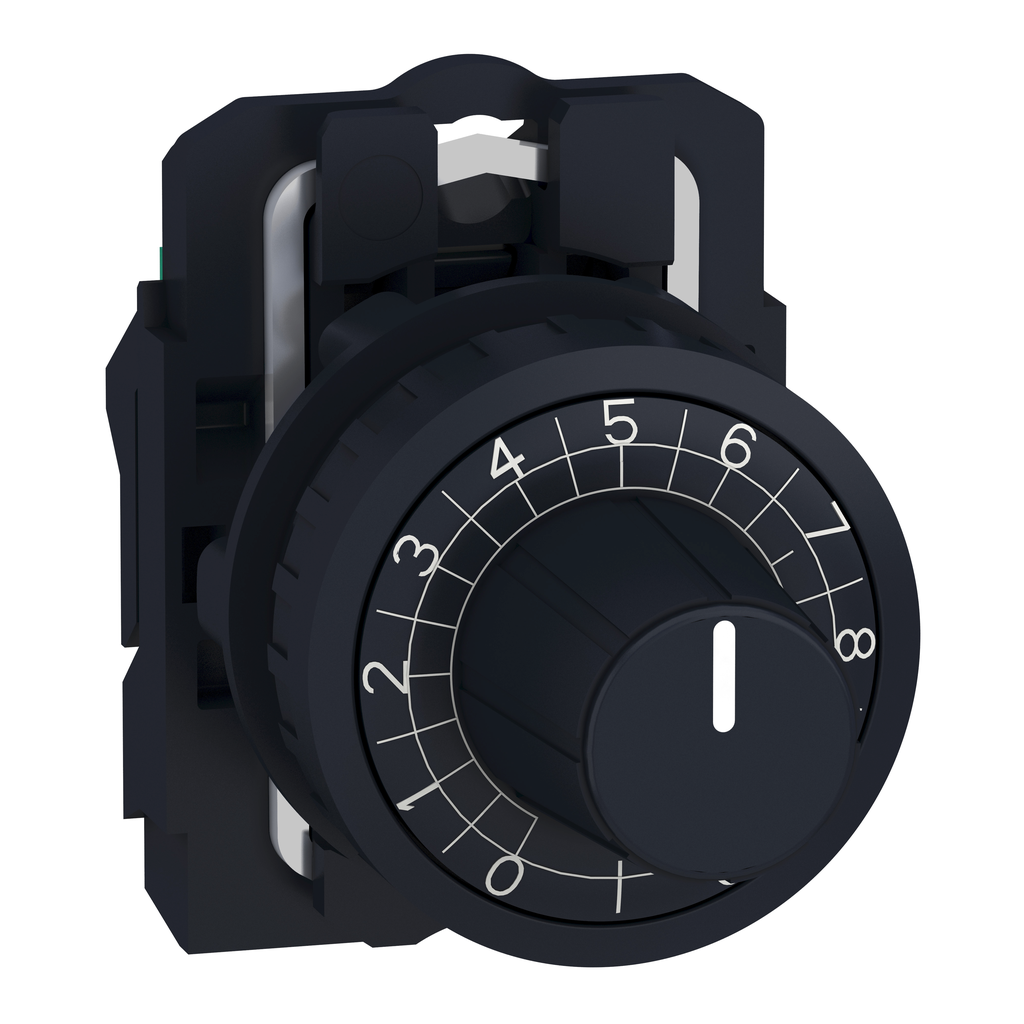

This Harmony XB5,head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Mounting Diameter | 22 mm |
Product Or Component Type | head + mounting base for potentiometer |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | dark grey plastic |
Operator Profile | knurled knob, with white) |
Product Compatibility | for use with Ø 6.35 mm shaft |
Device Short Name | ZB5 |
Warranty | 18 months |
Net Weight | 0.032 kg |
Device Presentation | basic element |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP66 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 60536 |
Protective Treatment | TH |
