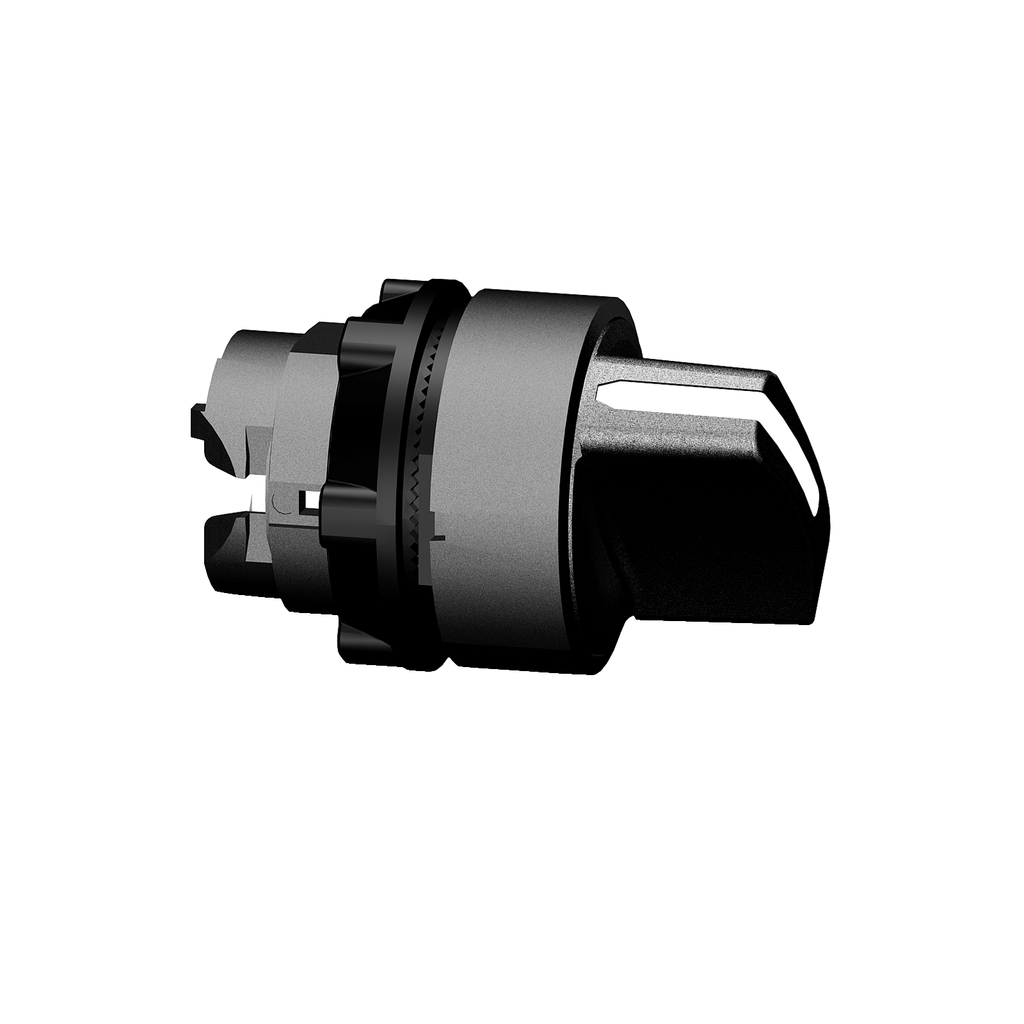

ZB5AD2TQ
Head for selector switch, Harmony XB5, black handle, 22mm, 2 positions, stay put, set of 10
Specifications
| Sale Per Indivisible Quantity | 10 |
|---|---|
| Range Of Product | Harmony XB5 |
| Bezel Material | dark grey plastic |
| Operator Profile | black standard handle |
| Operator Position Information | 2 positions 90° |
| Mounting Diameter | 22 mm |
| Type Of Operator | stay put |
| Product Or Component Type | head for selector switch |
| Shape Of Signaling Unit Head | round |
| Device Short Name | ZB5 |
| Head Type | standard |
| Warranty | 18 months |
| Mechanical Durability | 1000000 cycles |
| Electrical Composition Code |
|
| Station Name | XALD 1...5 cut-outs |
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 46 mm |
| Cad Overall Height | 29 mm |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
