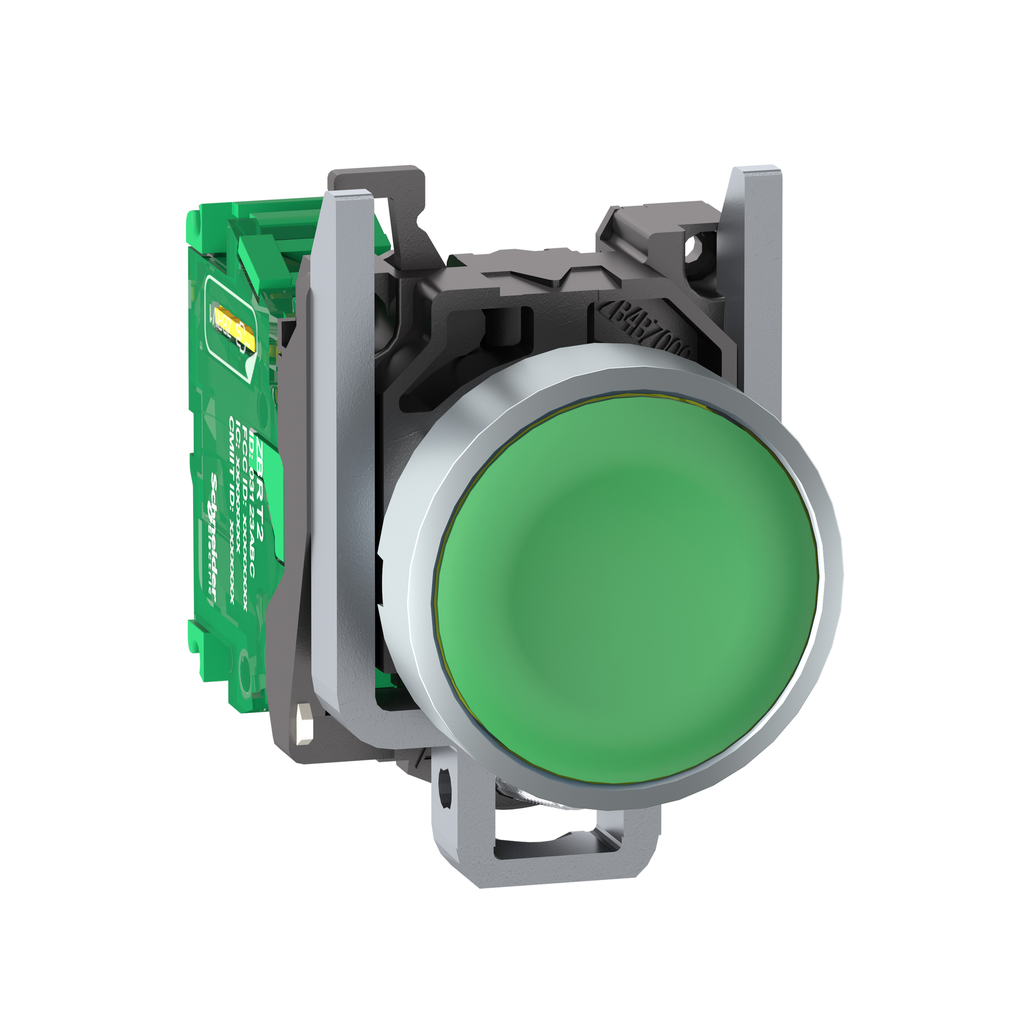

This wireless batteryless transmitter push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP30 and IP65, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions The cap is green
Brand: Schneider Electric
Add to Quote CatalogueAntenna Type | omnidirectional |
---|---|
Range Of Product | Harmony XB5 |
Transmission Frequency | 2405 MHz |
Mounting Diameter | 22 mm |
Product Or Component Type | wireless and batteryless transmitter |
Fixing Collar Material | zamak |
Level Or Class | 5M00G7W |
Bezel Material | chromium plated metal |
Device Short Name | XB5R |
Warranty | 18 months |
Mechanical Robustness | free fall resistance 1000 mm EN/IEC 60068-2-32 |
Operating Force | 10 N C/O changing electrical state |
Modulation Technique | O-QPSK |
Standards |
|
Embedding Depth | 42 mm |
Operating Travel | 4.3 mm total travel) |
Fixing Mode | fixing screw beneath head 0.8-1.2 N.m |
Type Of Operator | spring return push-button with transmitter |
Electrical Composition Code | PW1 |
Acquisition Time | 2 ms |
Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
Shape Of Signaling Unit Head | round |
Response Time | < 2 ms |
Antenna Gain | 0 dBi |
Net Weight | 0.045 kg |
Cad Overall Height | 41.5 mm |
Maximum Sensing Distance |
|
Max Power Consumption In W | 1 mW |
Number Of Channels | 16 |
Operator Profile | green flush |
Radio Agreement |
|
Cad Overall Width | 30 mm |
Emission Power | 3 mW |
Cad Overall Depth | 43 mm |
Bandwidth | 5-5 MHz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP101106EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1103010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Electromagnetic Compatibility |
|
Shock Resistance |
|
Vibration Resistance |
|
Ip Degree Of Protection |
|
Directives |
|
Ambient Air Temperature For Storage | -40-70 °C |
Relative Humidity | 95-95 % -40-70 °C without condensation |
Mechanical Durability | 1000000 cycles |
Protective Treatment | TH |
