ZB4BZ2005

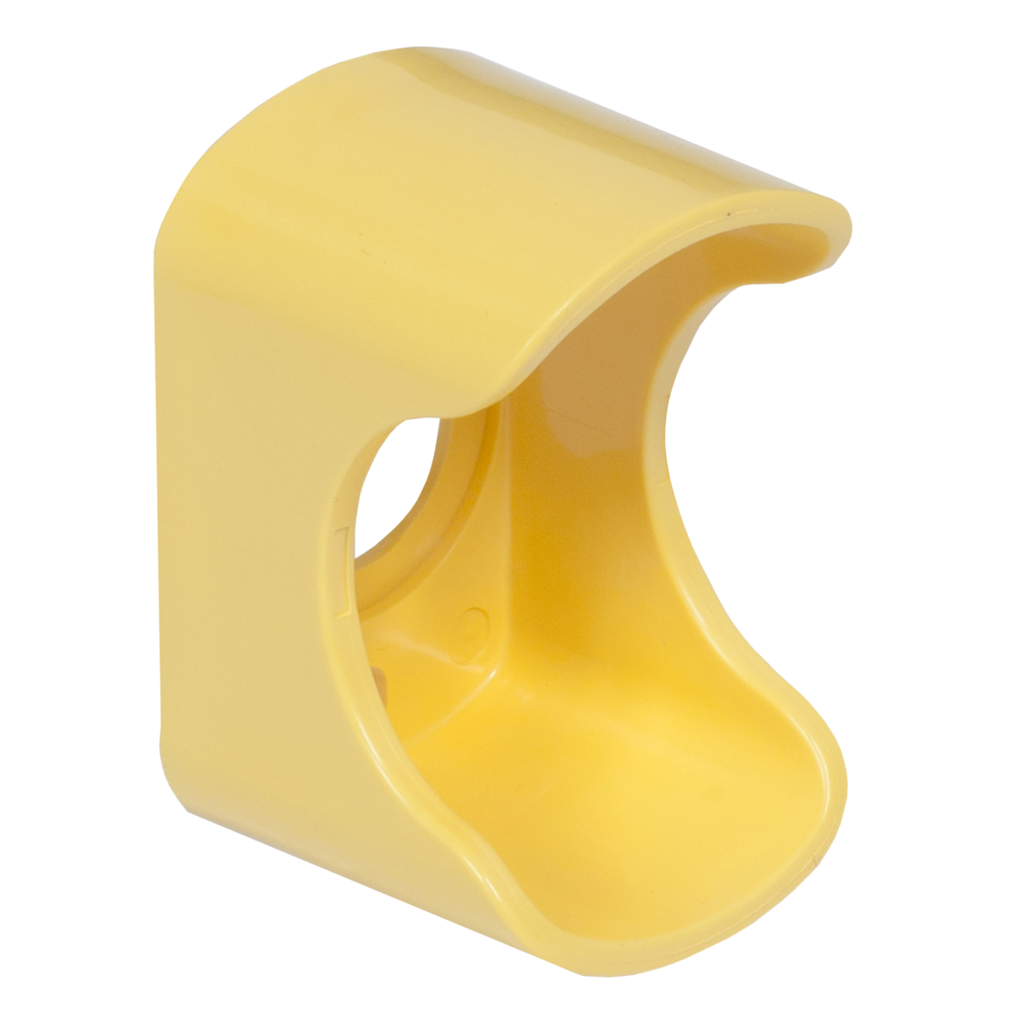

Narrow flange guard for 40mm Emergency stop, Harmony XB4, plastic, yellow
This protection accessory is designed to be fitted beneath the head for insertion It is compatible with any standard 40mm emergency stop pushbutton It weighs 0.042 kg
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Accessory / Separate Part Category | protection accessory |
| Product Or Component Type | guard |
| Color | Yellow |
| Quantity Per Set | set of 1 |
| Accessory / Separate Part Destination | Ø 40 mm emergency stop push-button |
| Warranty | 18 months |
| Material | plastic |
| Net Weight | 0.032 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK05 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
