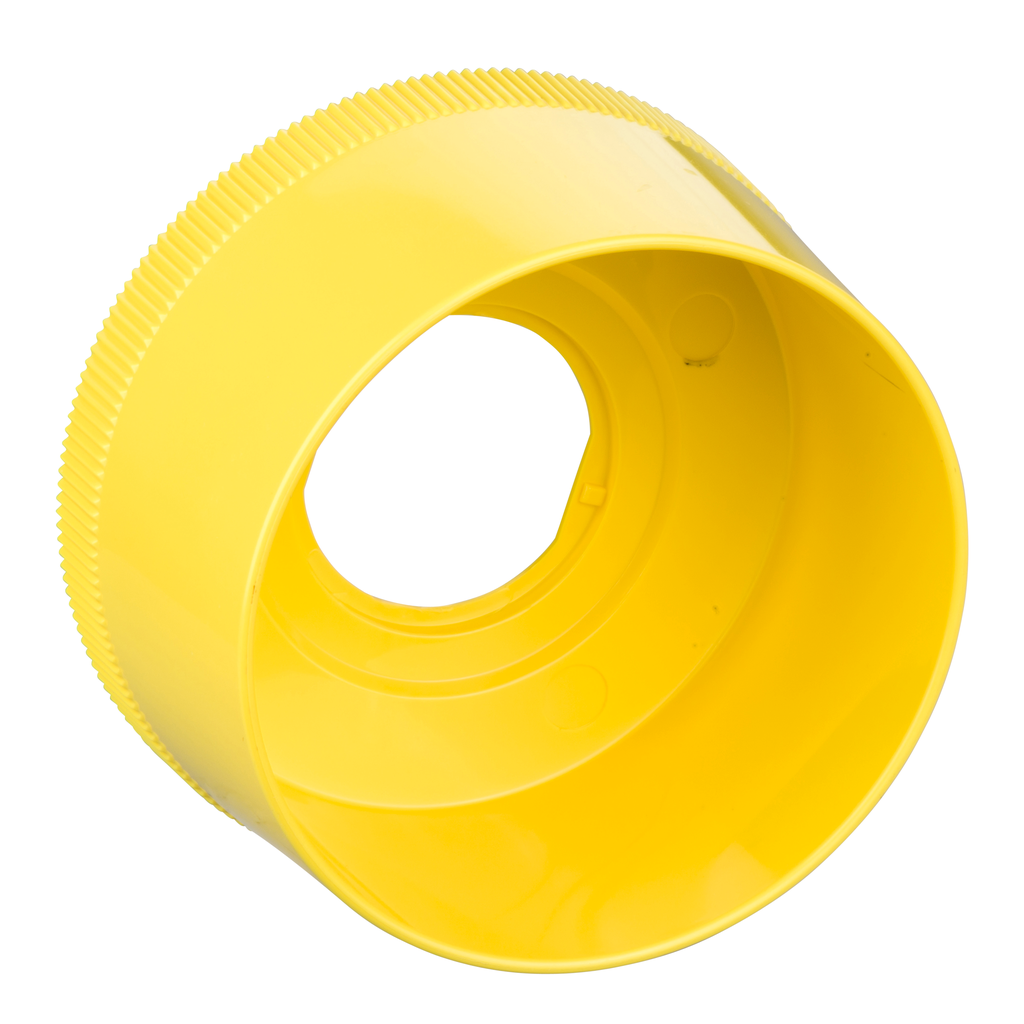

ZB4BZ1905
Round guard for 40mm Emergency stop, Harmony XB4, plastic, yellow, 63.5mm
This protection accessory is designed to be fitted beneath the head for insertion It is compatible with any standard 40mm emergency stop pushbutton It weighs 0.032 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Color | Yellow |
|---|---|
| Range Of Product |
|
| Accessory / Separate Part Category | protection accessory |
| Quantity Per Set | set of 1 |
| Product Or Component Type | guard |
| Accessory / Separate Part Destination | Ø 40 mm emergency stop push-button |
| Warranty | 18 months |
| Material | plastic |
| Net Weight | 0.042 kg |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ik Degree Of Protection | IK05 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
Documents
- Spec Sheet
- Catalog of Harmony XB5 plastic control and signaling units English - DIA5ED2121213EN (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Catalog of Harmony XB4 metal control and signaling units English - DIA5ED2121212EN (pdf)
- Harmony XB4 XB5 XB7 22 mm Push Buttons Catalog - DIA4ED2060507CEN-US+Rev.+02 (pdf)
- Harmony 22mm and 30mm Push Button Selection Guide - Brochure - 9001BR9401 (pdf)
- EMO Switch with EMO Guard Installation Instructions - 65013-315-02 (pdf)
