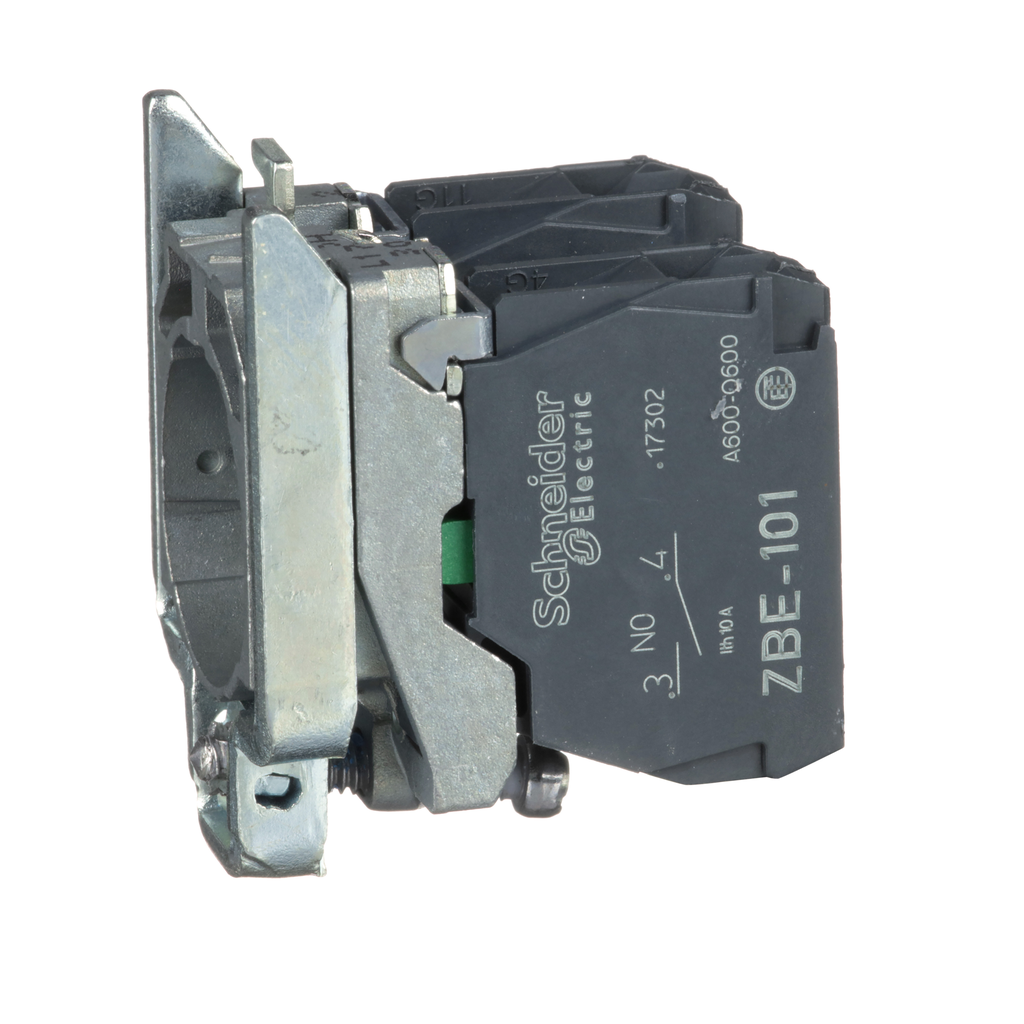

This body fixing collar is pre-mounted with a contact block Simply adding a head to this assembly will provide you with a complete ready-to-use push-button It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is sold by 100 units
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB4 |
---|---|
Contact Block Type | single |
Product Or Component Type | complete body/contact assembly |
Fixing Collar Material | zamak |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 2 NO |
Sale Per Indivisible Quantity | 100 |
Contact Operation | slow-break |
Device Composition |
|
Device Short Name | ZB4 |
Warranty | 18 months |
Contacts Usage | standard contacts |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | without |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Electrical Durability |
|
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
Operating Torque | 0.05 N.m NO changing electrical state |
[Ie] Rated Operational Current |
|
Mechanical Durability | 5000000 cycles |
Electrical Reliability |
|
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP20 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Protective Treatment | TH |
