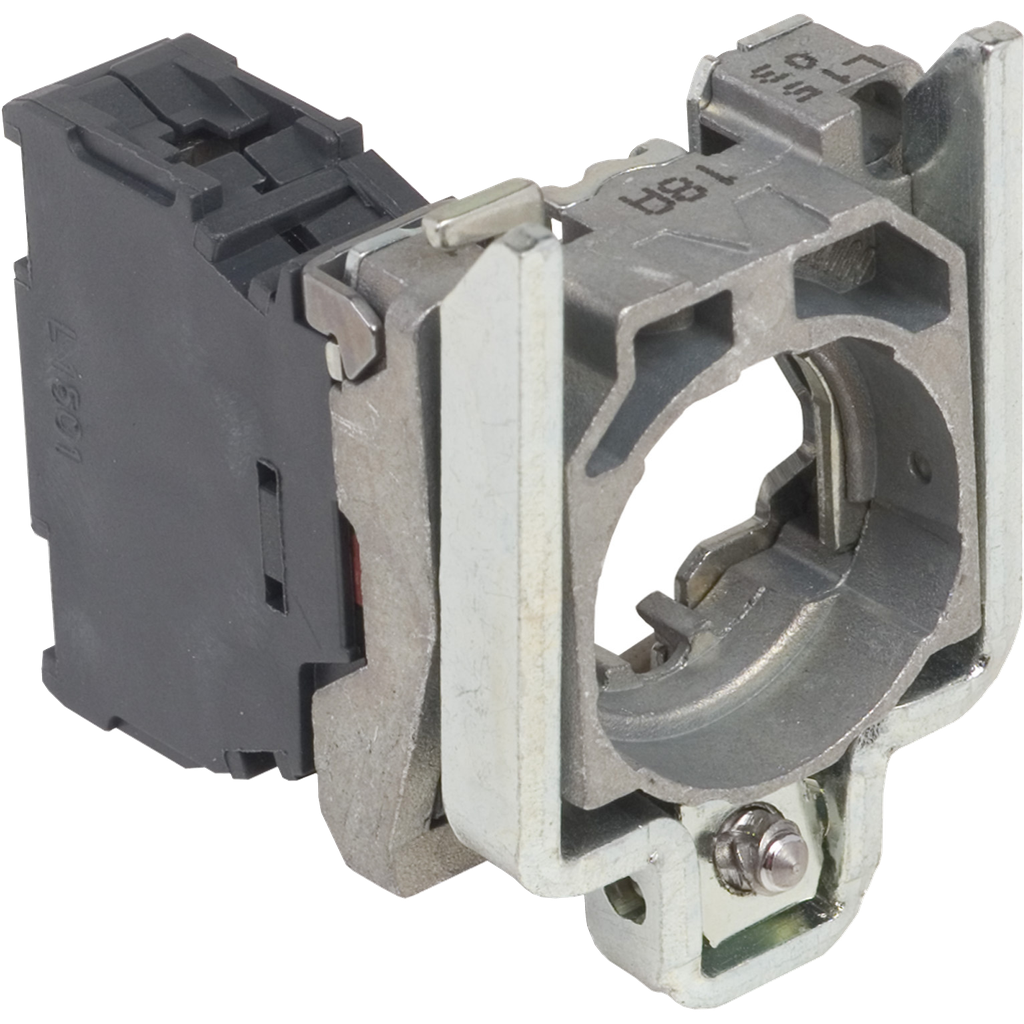

22mm push button, Harmony ZB4, metal base, contact block with collar, 1NC, spring clamp terminals
XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. This normally closed contact is monted on a metal mounting collar. Contacts have UL A600, UL Q300, IEC AC15 and IEC DC13 contact ratings. Contacts have spring clamp terminals. Contact block assembly is 1.85 inches tall, 1.18 inches wide and 1.46 inches deep. Selector switch weighs 0.14 lbs. Contact block assembly is UL Listed and CSA certified. "This product meets JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508 and JIS C8201-1 standards." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB4 |
|---|---|
| Contact Block Type | single |
| Product Or Component Type | complete body/contact assembly |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NC |
| Sale Per Indivisible Quantity | 1 |
| Contact Operation | slow-break |
| Device Composition |
|
| Device Short Name | ZB4 |
| Warranty | 18 months |
| Contacts Usage | standard contacts |
| Terminals Description Iso N°1 | (11-12)NC |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Operating Travel |
|
| Contacts Material | gold flashed (Ag/Ni/Au) contacts |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Net Weight | 0.064 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Cad Overall Height | 47 mm |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Operating Torque | 0.05 N.m NO changing electrical state |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 5000000 cycles |
| Electrical Reliability |
|
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 37 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
