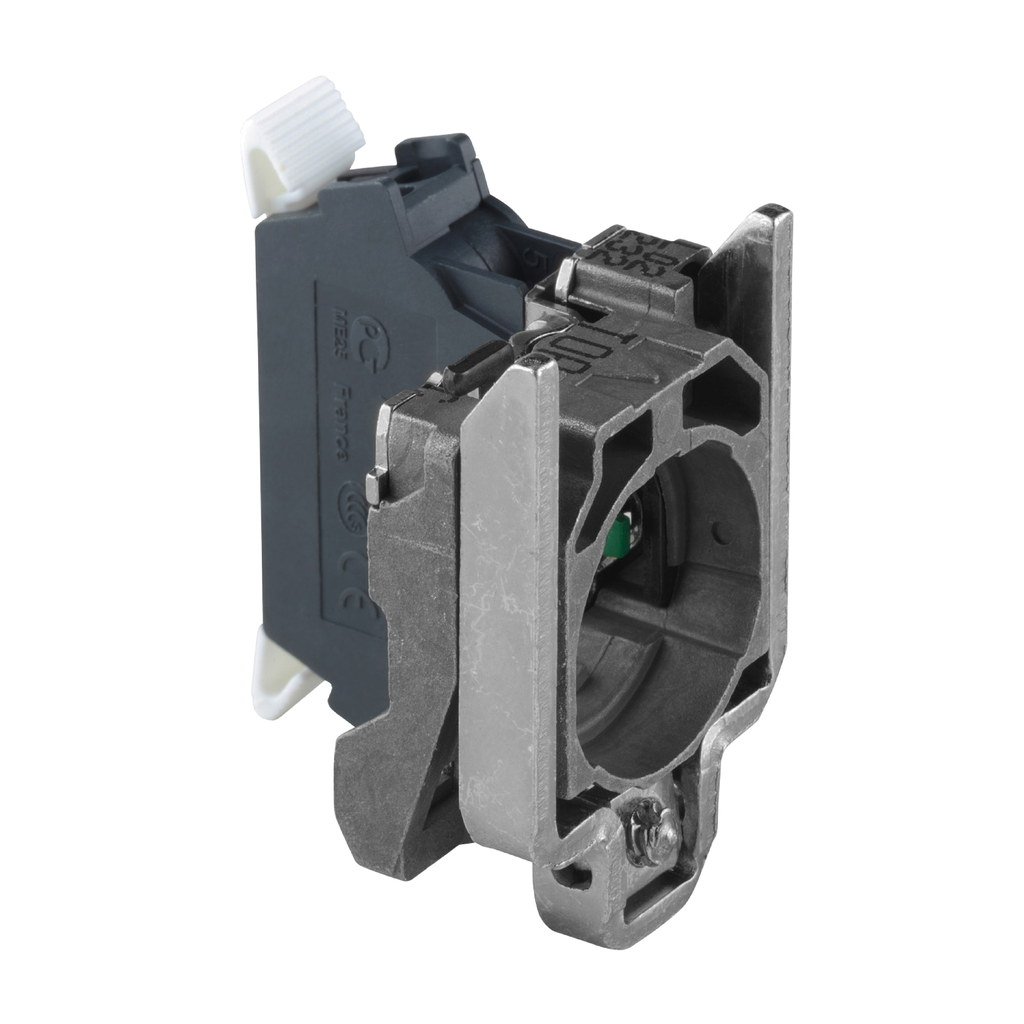

ZB4BZ1025
Single contact block with body fixing collar, Harmony XB4, metal, spring clamp terminal, 1NC
This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It is compatible with Harmony XB4 This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB4 |
|---|---|
| Contact Block Type | single |
| Product Or Component Type | complete body/contact assembly |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Connections - Terminals | spring clamp terminals |
| Contacts Type And Composition | 1 NC |
| Sale Per Indivisible Quantity | 1 |
| Contact Operation | slow-break |
| Device Composition |
|
| Device Short Name | ZB4 |
| Warranty | 18 months |
| Contacts Usage | standard contacts |
| Terminals Description Iso N°1 | (11-12)NC |
| Operating Force | 2 N NC changing electrical state |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| Net Weight | 0.053 kg |
| Cad Overall Height | 47 mm |
| Device Presentation | basic sub-assemblies |
| Electrical Durability | 10000000 cycles |
| Mechanical Durability | 5000000 cycles |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 37 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
