ZB4BZ1016P

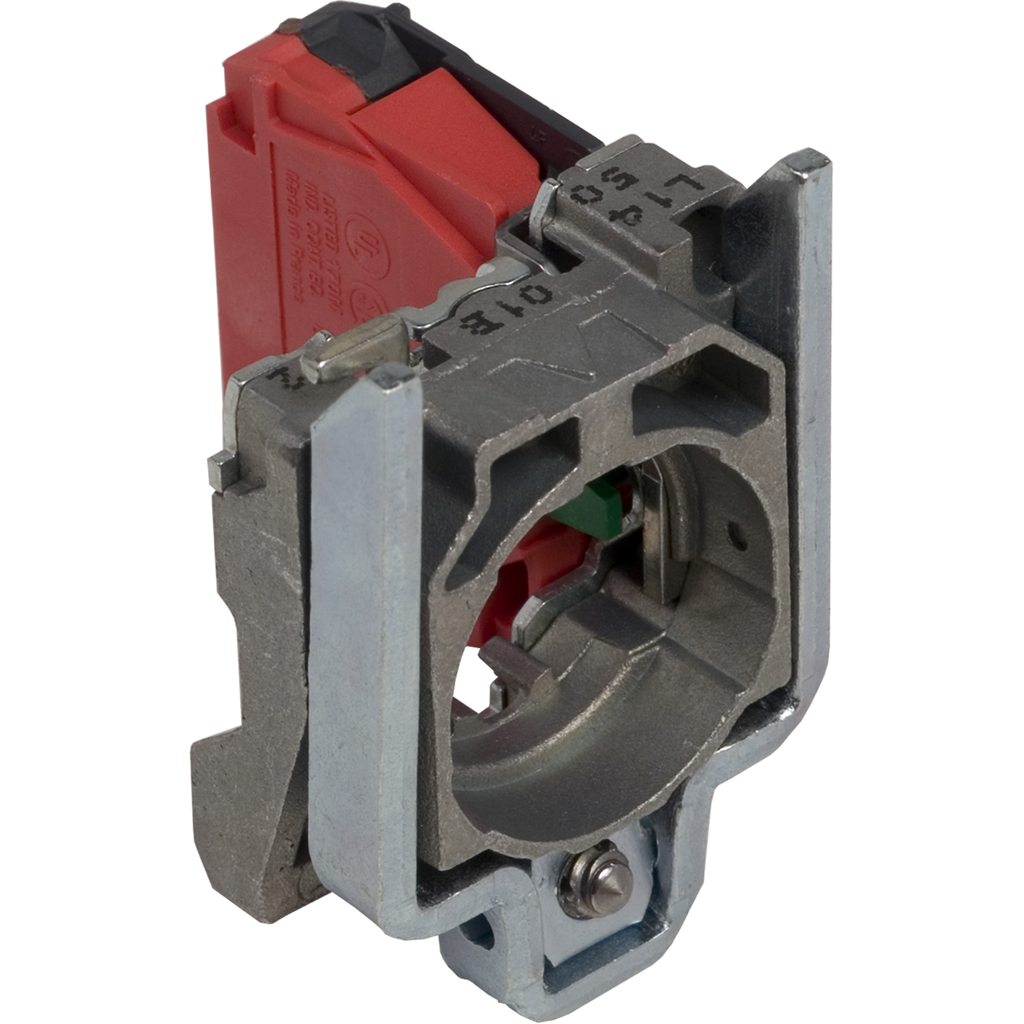

Complete body contact assembly, Harmony XB4, single contact block with body fixing collar, 1NO, spring clamp terminal
This complete body is an accessory of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It consists in a single contact block pre-assembled on a fixing collar unit. It features 1 NO slow break contact block and spring clamp connection type. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It weighs 64g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB4 |
|---|---|
| Contact Block Type | single |
| Product Or Component Type | complete body/contact assembly |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NO |
| Sale Per Indivisible Quantity | 1 |
| Contact Operation | slow-break |
| Device Composition |
|
| Device Short Name | ZB4 |
| Warranty | 18 months |
| Contacts Usage | standard contacts |
| Terminals Description Iso N°1 | (11-12)NO |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Operating Travel |
|
| Contacts Material | gold flashed (Ag/Ni/Au) contacts |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Net Weight | 0.064 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Cad Overall Height | 47 mm |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Operating Torque | 0.05 N.m NO changing electrical state |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 5000000 cycles |
| Electrical Reliability |
|
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 37 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
