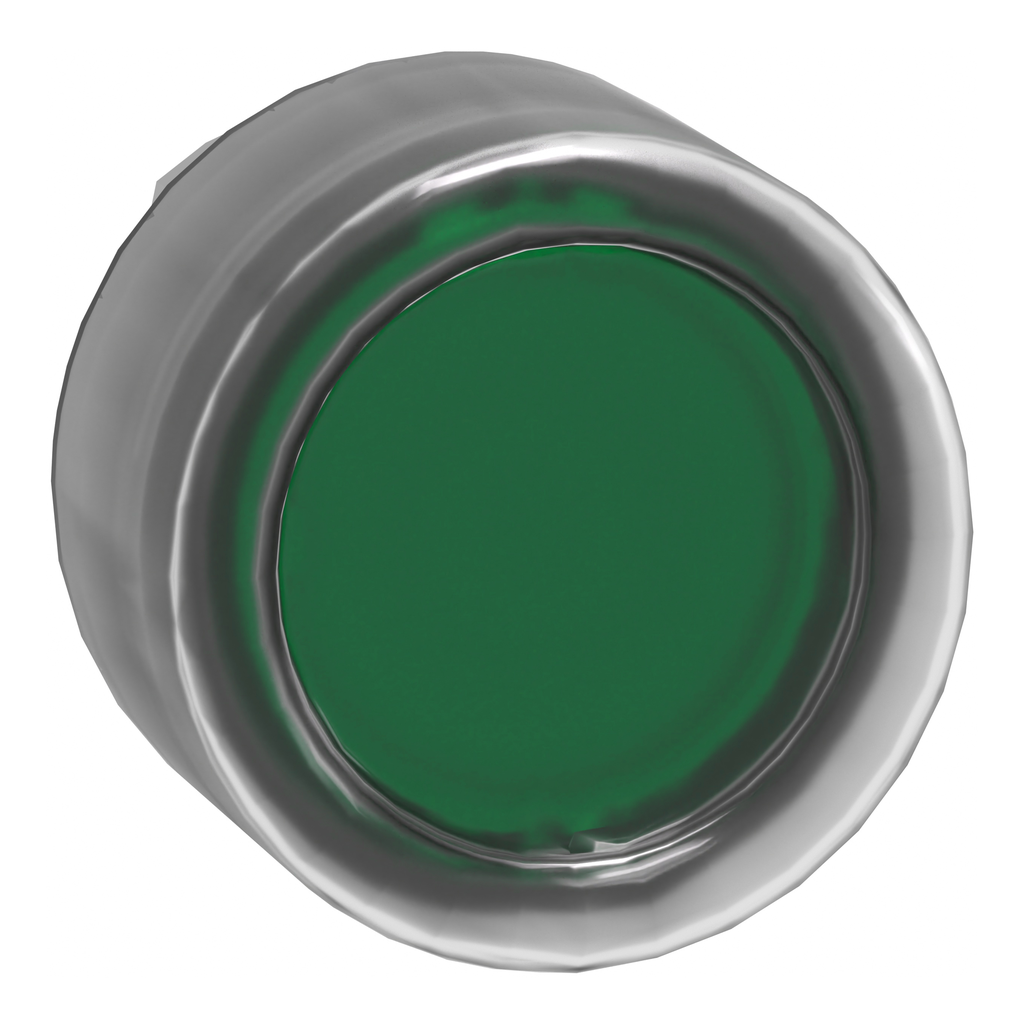

This Harmony XB4, plain lens illuminated flush green button head with clear boot operates with a spring return / impulse mechanism. This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | clear boot |
---|---|
Range Of Product | Harmony XB4 |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | head for illuminated push-button |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Operator Profile | green flush, unmarked |
Product Compatibility | universal LED |
Device Short Name | ZB4 |
Warranty | 18 months |
Electrical Composition Code |
|
Net Weight | 0.031 kg |
Cad Overall Height | 29 mm |
Device Presentation | basic sub-assemblies |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Mechanical Durability | 10000000 cycles |
Cad Overall Width | 29 mm |
Cad Overall Depth | 30 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 EN 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class I IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
